Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine

Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine

This versatile production line combines bottle blowing and filling capabilities in one efficient system, perfect for manufacturing and filling 3-5 gallon PET bottles. The automatic blow molding machine precisely forms bottles from PET preforms, while the integrated filling station ensures accurate water dispensing. Engineered for high-volume production, this equipment delivers consistent quality and reduces labor costs. The system features advanced PLC controls, stainless steel construction, and user-friendly operation interface. With adjustable mold options and filling parameters, it accommodates various bottle designs and filling requirements. Ideal for bottled water companies, beverage manufacturers, and packaging facilities, this machine maintains strict hygiene standards and offers reliable performance. Complete with safety features and easy maintenance access, it's a cost-effective solution for streamlining your water bottling operations.

Get a Quote
  • Description

+8615601563990
[email protected]
Inquiry
About NAVAN
We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China. Our products include: liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), Barreled filling line(3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic / full automatic bottle blowing machines, and injection molding machines. Navan Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training.
Details Images
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine factory
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine factory
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine manufacture
Note
If the electrical supply specification influences equipment cost, the price will need to be adjusted. If user changes electrical supply specification, a new quote will need to be offered.
The final size and model of the equipment may be changed according to the final confirmed products.
All equipment is uesd for handing above mentioned bottles, closures and packaging requirements.
Other additional specification can also be handled, but relevant change-over parts or new designs are needed to be increased. The data to be confirmed still needs to be provided to seller.
Final technical parameters and design will be confirmed by evaluation after getting all data and samples.
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine supplier
Product Paramenters
Model
CGF8-8-8-3/4
CGF12-12-5/6
CGF18-18-6
CGF24-24-8
Application
Spring water / mineral water / pure water / non-gas wine drink and so on
No. of Rinsing/Filling/Capping
8-8-3/4
12-12-5/6
18-18-6
24-24-8
Production Capacity(500ml)
2000BPH
4000BPH
6000-7000BPH
10000~12000BPH
Filling precision
≤±5mm(liquid level)
≤±5mm(liquid level)
≤±5mm(liquid level)
≤±5mm(liquid level)
User Ambient Conditions
Temperature:10~40℃; Humidity: No dew
Suitable bottle specification
Volume=100-2000ml
Diameter φ=50-100mm
Bottle height H=150 ~340mm
Volume=100-2000ml
Diameter φ=50-105
Bottle height H=150 ~340mm
Volume=100-2500ml
Diameter φ=50-115mm
Bottle height H=150 ~350mm
Volume=100-2500ml
Diameter φ=50-115
Bottle height H=150 ~350mm
Bottle type
Plastic bottle / PET Bottle
Bottle neck/Cap Style
Plastic Screw Cap φ=20-50mm
Machine material
Food stage SS304 OR SS316
Air source pressure
0.5~0.6Mpa
Filling way/principle
Gravity filling method
Control system
SIMENS PLC+ TOUCH SCREEN
Features
No Bottle No Filling No Bottle No Capping
Main Power
1.9kw
3.5kw
4.0kw
4.8kw
Power Supply
Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement
Overall dimensions (mm)
1900*1420*2000
2050*1800*2400
2580*2100*2200
2780*2200*2200
Weight (kg)
1500
2500
3500
4500
All machines could be customized , we could design design and produce machines according to your request.
Model
CGF32-32-10
CGF40-40-10/12
CGF50-50-12/15
CGF60-60-15
Application
Spring water / mineral water / pure water / non-gas wine drink and so on
No. of Rinsing/Filling/Capping
32-32-10
40-40-10/12
50-50-12/15
60-60-15
Production Capacity(500ml)
16000-17000BPH
19000-20000BPH
23000-24000BPH
34000~36000BPH
Filling precision
≤±5mm(liquid level)
≤±5mm(liquid level)
≤±5mm(liquid level)
≤±5mm(liquid level)
User Ambient Conditions
Temperature:10~40℃; Humidity: No dew
Suitable bottle specification
Volume=100-2500ml
Diameter φ=50-115mm
Bottle height H=150 ~350mm
Bottle type
Plastic bottle / PET Bottle
Bottle neck/Cap Style
Plastic Screw Cap φ=20-50mm
Machine material
Food stage SS304 OR SS316
Air source pressure
0.5~0.6Mpa
Filling way/principle
Gravity filling method
Control system
SIMENS PLC+ TOUCH SCREEN
Features
No Bottle No Filling No Bottle No Capping
Main Power
5.5kw
7.5kw
11.0kw
15.0kw
Power Supply
Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement
Overall dimensions (mm)
3800*2800*2600
4600*2800*2600
5450*3300*2600
6500*4500*2600
Weight (kg)
6500
8500
9800
12800
All machines could be customized , we could design design and produce machines according to your request.
Different Model Performance
8-8-4 Bottle Water Filling Machine Capacity:2500-3000 bottles per hour.
14-12-5 Bottle Water Filling Machine Capacity:5000 bottles per hour.
18-18-6 Bottle Water Filling Machine Capacity:6000-7000 bottles per hour.
24-24-8 Bottle Water Filling Machine Capacity:10000-12000 bottles per hour.
32-32-10 Bottle Water Filling Machine Capacity:16000-17000 bottles per hour.
40-40-12 Bottle Water Filling Machine Capacity:19000-20000 bottles per hour.
50-50-15 Bottle Water Filling Machine Capacity:23000-24000 bottles per hour.
60-60-15 Bottle Water Filling Machine Capacity:34000-36000 bottles per hour.
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine supplier

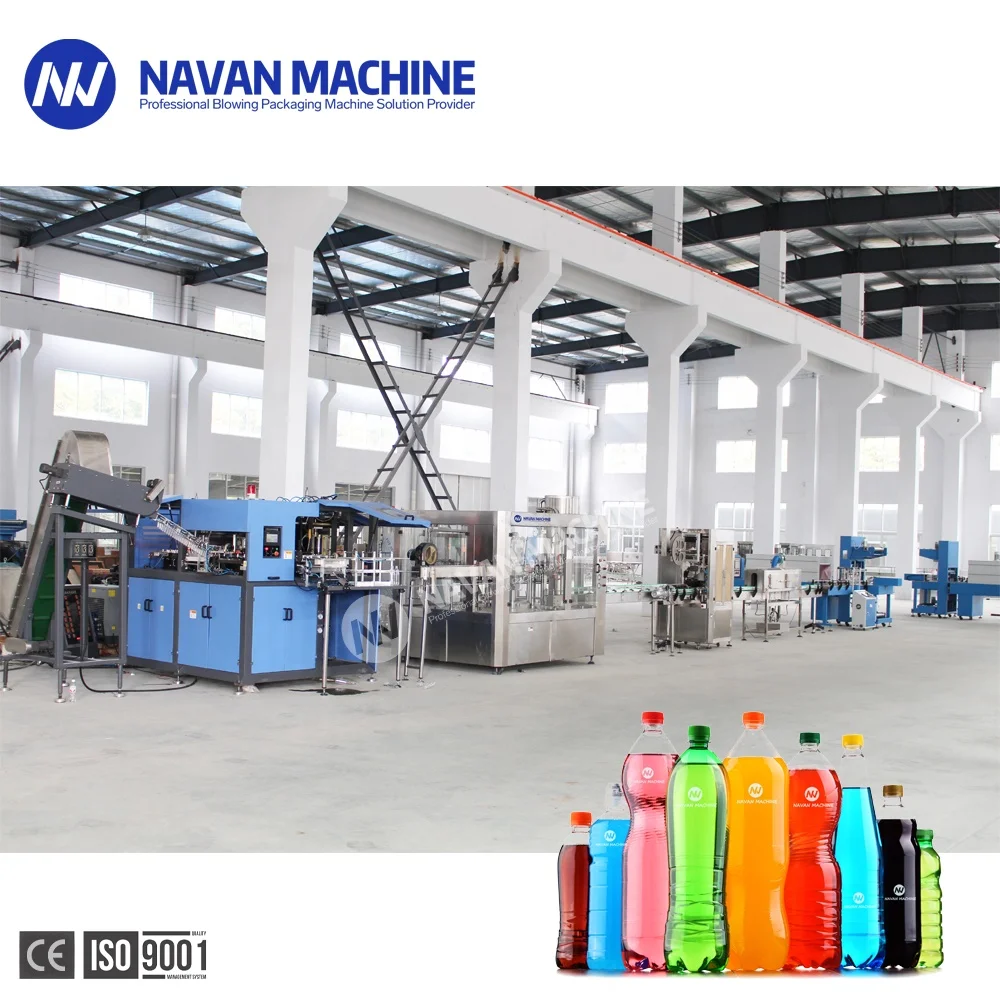

Production Line Details
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine supplier
1-NAVAN Machine Ro Water Treatment System
* Raw Water Tank + Raw Water Pump
* Silica Sand Filter + Carbon Filter + Sodium Ion Exchanger + Precision Filter + Safety Filter
* Reverse Osmosis (One Level)
* UV Sterilizer
* Finished Water Tank + Pure Water Pump
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine details
2-navan bottle blowing machine blow dryer
1/Dryer: industry-leading blower performance with patented control system and self-control to ensure repeatability and consistency of high-quality bottles.
2/Production flexibility: Up to 200 different device size configurations from a single platform.
3/Highest Quality: Electric stretching for bottle integrity, full material distribution control and efficiency.
4/Fast Results: increased interval and speed (up to 2,400 bottles/mold/hour)5/Efficient Usage: Up to 45% and 35% electricity consumption. Less compressed air
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine manufacture

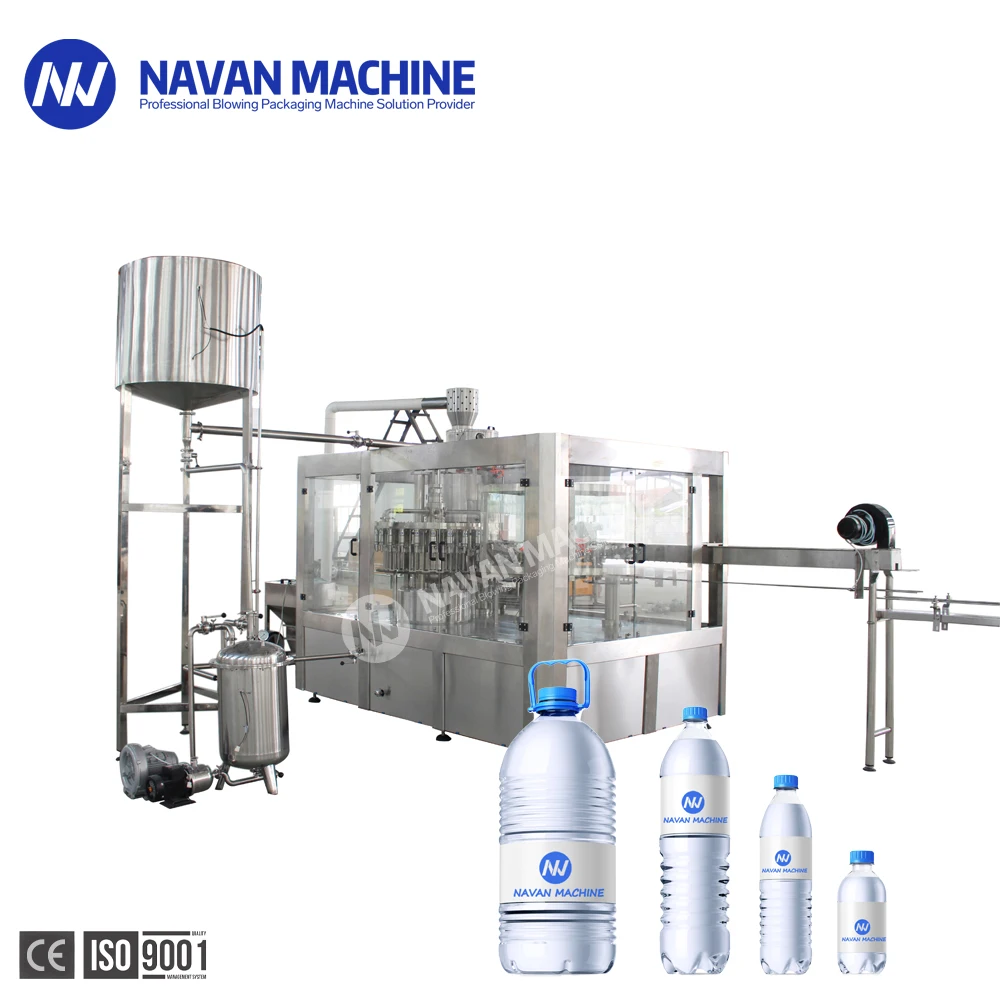

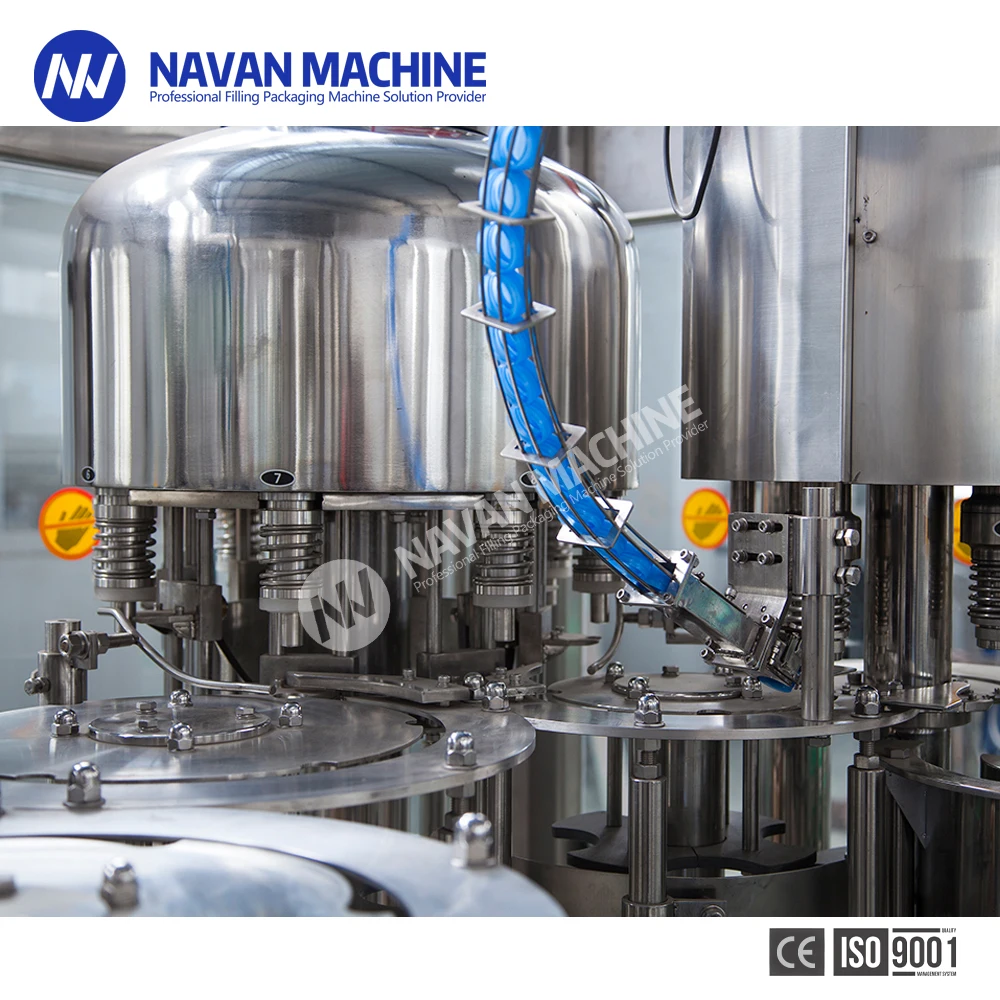

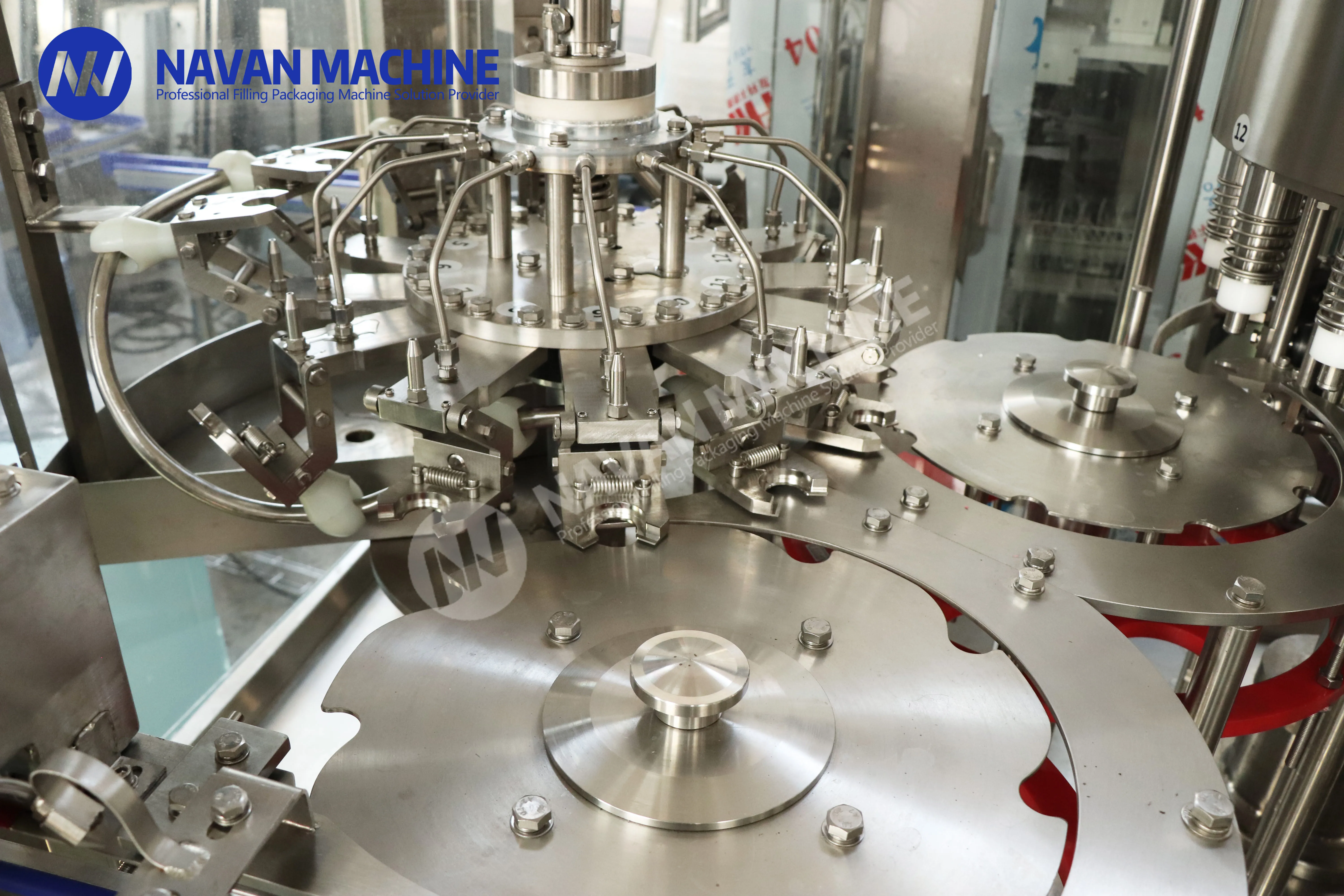

3-CGF Bottled Water Filling Machine 3 in 1 Packing Washing Machine Monoblock Machine
1/Enhanced food safety: Stainless steel 304/316L For all components that come into contact with your drinks
2/optimal uptime: 30% Reduce changes and maintenance downtime
3/Sustainable solution: Reducing filler and servo motor encapsulation reduces resource consumption
4/lmproving hygiene through volume control and contact less filling
5/Automatic dummies bottles: Safer and easier cleaning procedures6/Automatic bottle changes increase uptime.
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine details

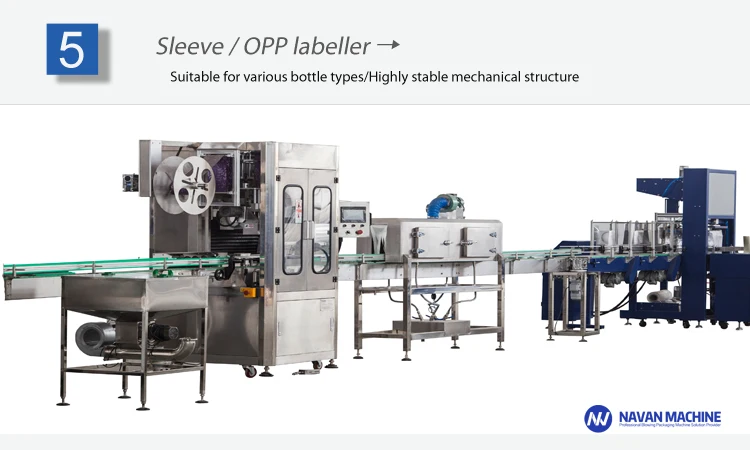

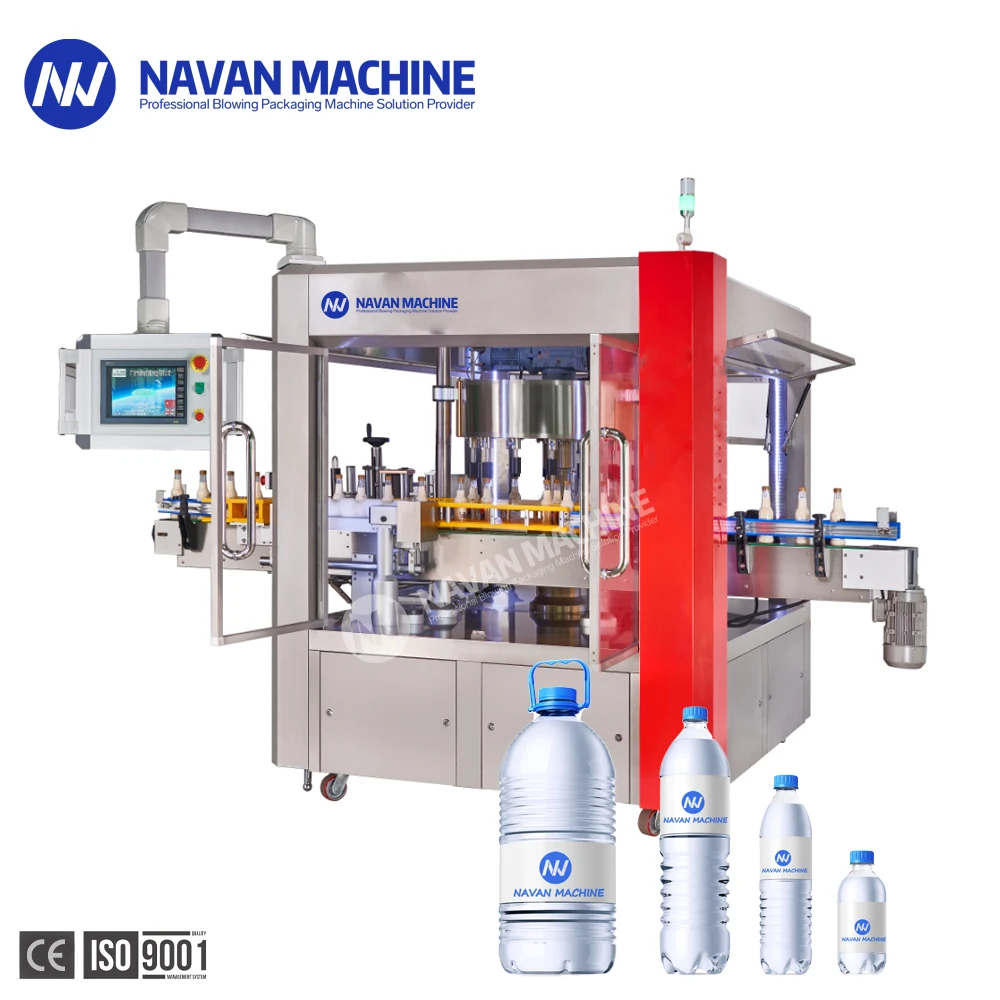

4-Bottle labeling machine, navan machine.
It can produce up to 36,000 results, four carousel sizes, up to three labeling stations, and 24 container configurations per hour
when standalone at a 98% efficiency rate. Uptime 3 Production/Sustainable and Quality Production
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine details
5-Bottle Packaging Machine Navan Machinery
Once your beverage products have been replenished and the bottles have been labeled, the primary packaging is gently transferred using a conveyor belt to the secondary packaging process. The end result the packaging that the customer sees at the point of sale, so it must capture their attention. These kits ensure protection from elements such as weather, pressure and temperature changes, whether you choose printed shrink film, stacked packs or wrapping boxes, the navan filling machine gently feeds the bottles to ensure that the packs are durable and cost-effective and beneficial
Automatic 3-5 Gallon Pet Bottle Blowing Molding Machine Water Filling Machine manufacture

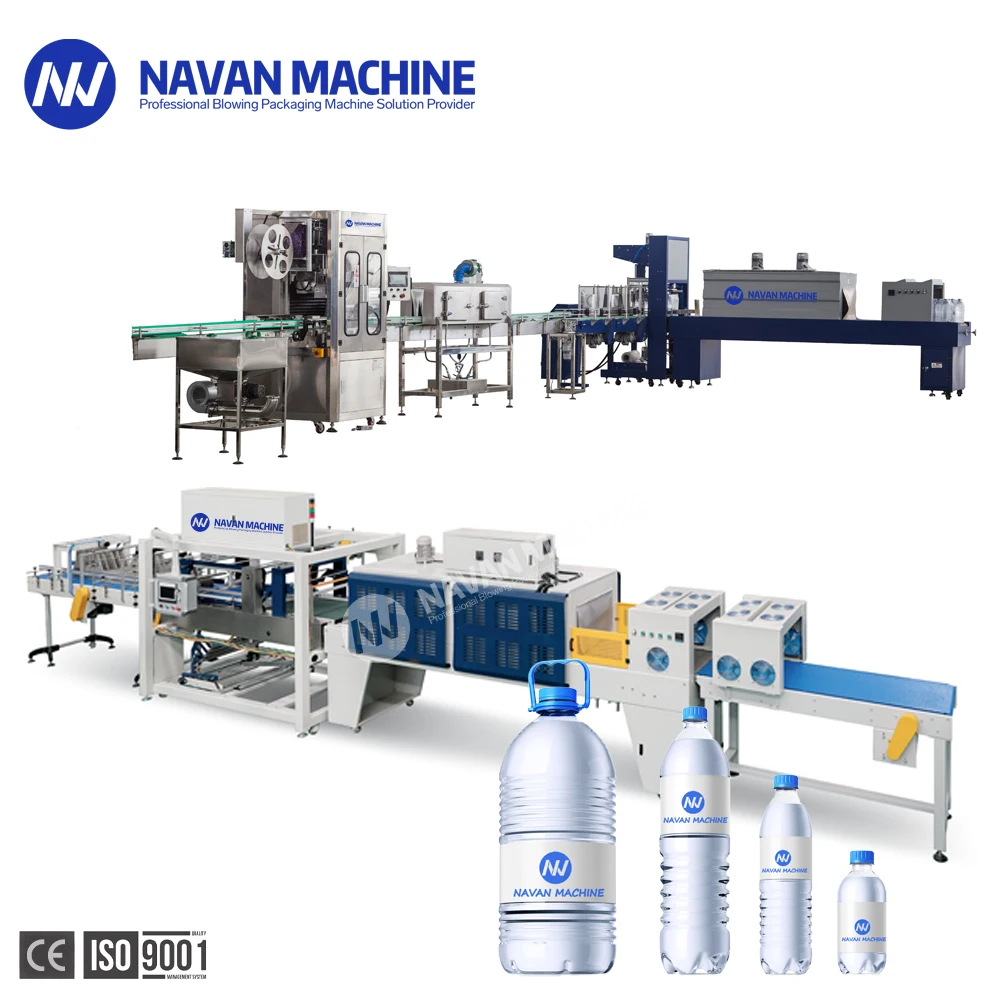

6-Automatic Bottle Packing Machine
Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The final result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure and temperature changes. Whether you choose shrink-printed film, nested packs or wraparound cartons, NAVAN Machine packers gently feed bottles to ensure durable and cost-effective packs.
BENEFITS.
1 / Transparent plastic film shrink wrapper packing machine
2 / Printed plastic film shrink wrapper packing machine
3 / Half tray shrink wrapper packing machine
4 / One piece carton packing machine with melting glue sealing
5 / One piece carton packing machine with plastic tape sealing
6 / Online palletizer and stretch wrapping packing machines
7 / Flexible & Motorized Conveying System
