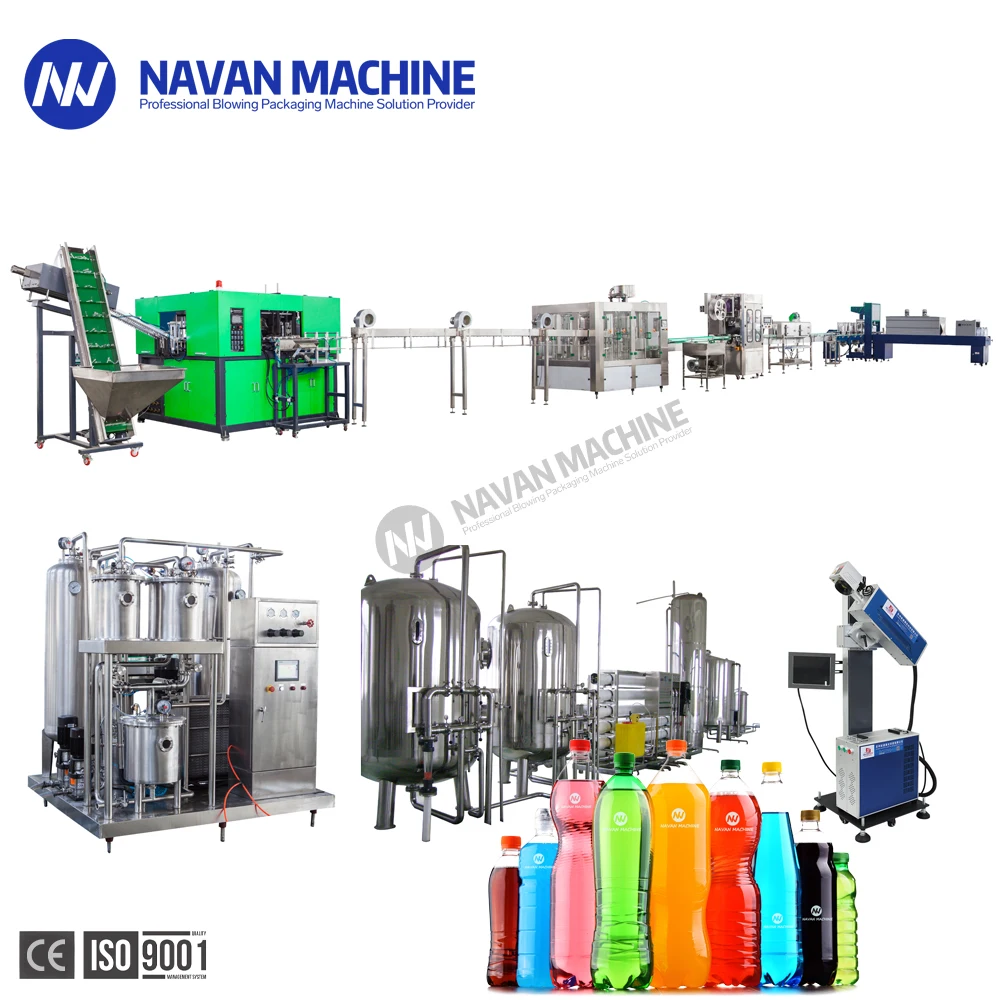

Complete Fully Automatic Carbonated Energy Drink Bottle Filling Production Line

Complete Fully Automatic Carbonated Energy Drink Bottle Filling Production Line

This state-of-the-art carbonated beverage production line delivers end-to-end automation for energy drink bottling operations. Engineered for maximum efficiency, the system seamlessly handles everything from bottle rinsing and filling to capping and labeling. The advanced carbonation system ensures precise CO2 levels, while high-speed filling heads maintain optimal production rates with minimal product loss. Built with food-grade stainless steel and featuring user-friendly PLC controls, this complete line is suitable for various bottle sizes and shapes. The integrated quality control system guarantees consistent fill levels and proper seal integrity. Perfect for medium to large-scale beverage manufacturers, this turnkey solution combines reliability, precision, and ease of maintenance to maximize your production output while minimizing labor costs.

Description

+8615601563990

[email protected]

Description

Final Products

Complete Fully Automatic Carbonated Energy Drink Bottle Filling Production Line manufacture

Equipment Type	Automatic
Bottle Type	PET round or square bottle Volume 200 - 2500ml Bottle diameter 50-115mm Bottle height 160-350mm
Output	up to 24,000 bph
Your product	Carbonated Soft Drink

NAVAN Machine.

We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China. Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.Navan Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training.

Products Description

Complete Fully Automatic Carbonated Energy Drink Bottle Filling Production Line

We are devoted to supplying complete solution for the carbonated beverage filling plant, including Water treatment system /Carbonated Beverage Processing, Mixing, Pasteurization system and Carbonation System / Washing filling capping machine / liquid nitrogen dosing system / Auto Bottle Checker / Bottle Spraying Warmer & Pasteurization Tunnel /Inverted bottle cap sterilization chain / Bottle Blow Dryer / Laser Inkjet Printer / Automatic labeling machine / Automatic packing machine / Automatic Conveyor System / Automatic Palletizer system and other auxiliary equipment such as transformer, electric generator, steam boiler, CIP cleaning system forklift truck .... etc

One partner for all your needs.

A complete CSD line solution from NAVAN takes into account every step of your PET carbonated soft drink process, from minimising resource waste to determining your bottle's ideal look and weight. With everything centred around one supplier, you get wide-ranging expertise, line equipment and ongoing services. This ensures high quality and efficiency from packaging to equipment,fast ramp-up and beyond.

Complete Fully Automatic Carbonated Energy Drink Bottle Filling Production Line factory

Enhancing flexibility and consistency, NAVAN Carbonated Soft Drinks Lines provide:

Different filling machine capacities 8-8-4 Bottle Carbonated Beverage Filling Machine Capacity:800-2000 bottles per hour. 12-12-6 Bottle Carbonated Beverage Filling Machine Capacity:1800-2000 bottles per hour. 18-18-6 Bottle Carbonated Beverage Filling Machine Capacity:3000-4000 bottles per hour. 24-24-8 Bottle Carbonated Beverage Filling Machine Capacity:6000-7000 bottles per hour. 32-32-10 Bottle Carbonated Beverage Filling Machine Capacity:9000-10000 bottles per hour. 40-40-12 Bottle Carbonated Beverage Filling Machine Capacity:15000-16000 bottles per hour 50-50-15 Bottle Carbonated Beverage Filling Machine Capacity:19000-20000 bottles per hour 60-60-15 Bottle Carbonated Beverage Filling Machine Capacity:24000-25000 bottles per hour

Would like to know more about NAVAN Machine equipment, feel free to send us an inquiry!

Details Images

Complete Fully Automatic Carbonated Energy Drink Bottle Filling Production Line details

1-NAVAN Machine RO Water Treatment System

* Raw water tank + Raw water pump
* Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
* Reverse Osmosis (one level)
* UV sterilizer
* Finished water tank + Pure water pump

1/Stainless steel high-pressure film shell
2/All kinds of capacity indicators, pressure indicators, electricity magnetic valve, balance device, and pipe valve system
3/Online type pressure auto self-protection device
4/Online type electricity indicator (with stable compensation)
5/System safe protecting and alarm system
6/System frame

According to customer's water source analysis report and the final water standard required,we will recommend the customer suitable water treatment plants.

2 - Pre-process system -- Carbonation Equipment

Carbonated beverage mixing system with reasonable & high efficiency structure , high mix precision , CO2 mixing fully, two stage of cooling, two carbonation merits. Mainly is suitable for kinds of carbonated drink's mix processing and carbonation, also may use in the paste drink, the fermentation drink and so on other soft drinks' mix processing.

1 - High-shear emulsifying tank + Plate heat exchanger
2 - Mixing tank
3 - UHT sterilizer + homogenizer machine + Buffer tank
4 - Hot water system + Hot water tank
5 - CIP cleaning system

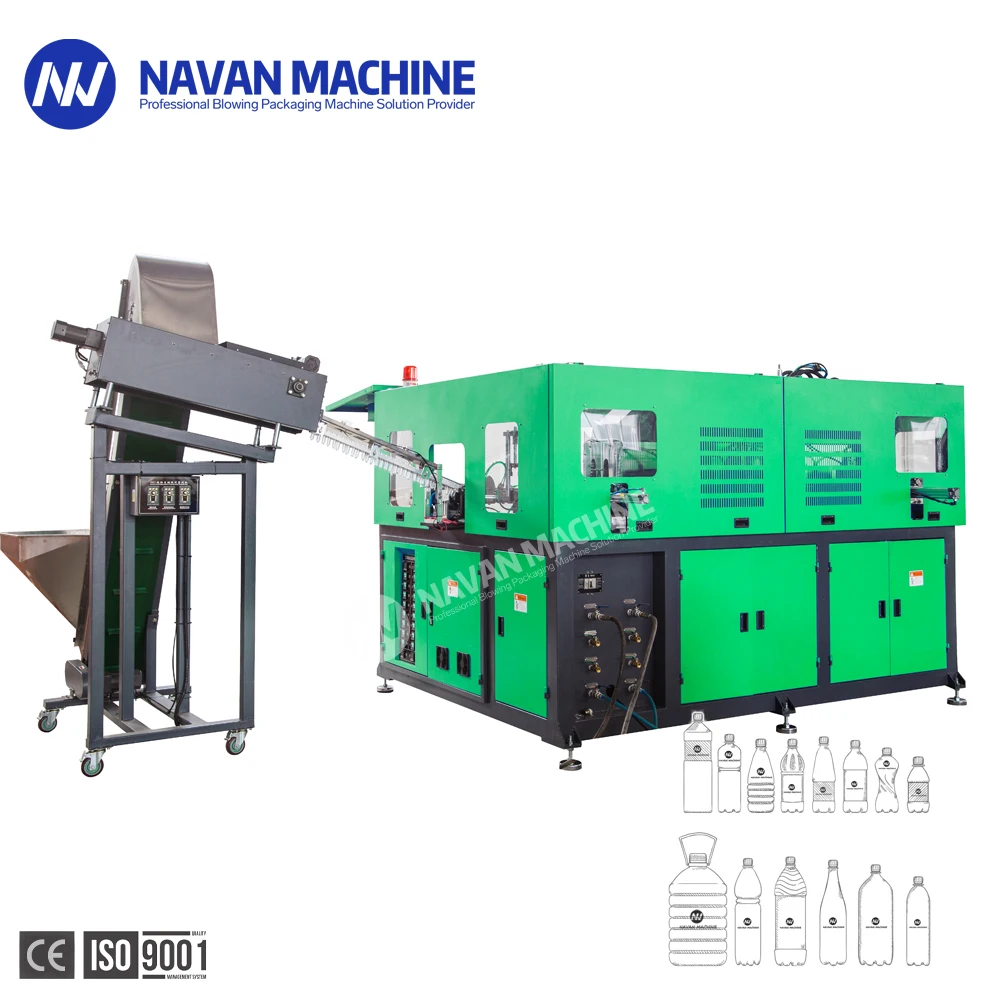

3 - NAVAN Machine Stretch Bottle Blow Moulding Machine.

This machine is a fully automatic, high intelligent, stable and reliable blowing machine, with simple structure, and low energy consumption. It is very popular and well used in food, beverages, cosmetics, pharmaceutical industry

1 / Blower : Industry-leading blower performance with patented control and self-regulation systems for repeatable and consistently high bottle quality
2 / Production flexibility: Up to 200 different equipment size configurations from one platform
3 / Top quality: Electrical stretching for bottle integrity, full material distribution control and performance
4 / Fast output: Boosted uptime and speed (up to 2,400 bottles/mould/hour)
5 / Efficient consumption: Up to 45 % less electricity and 35 % less compressed air

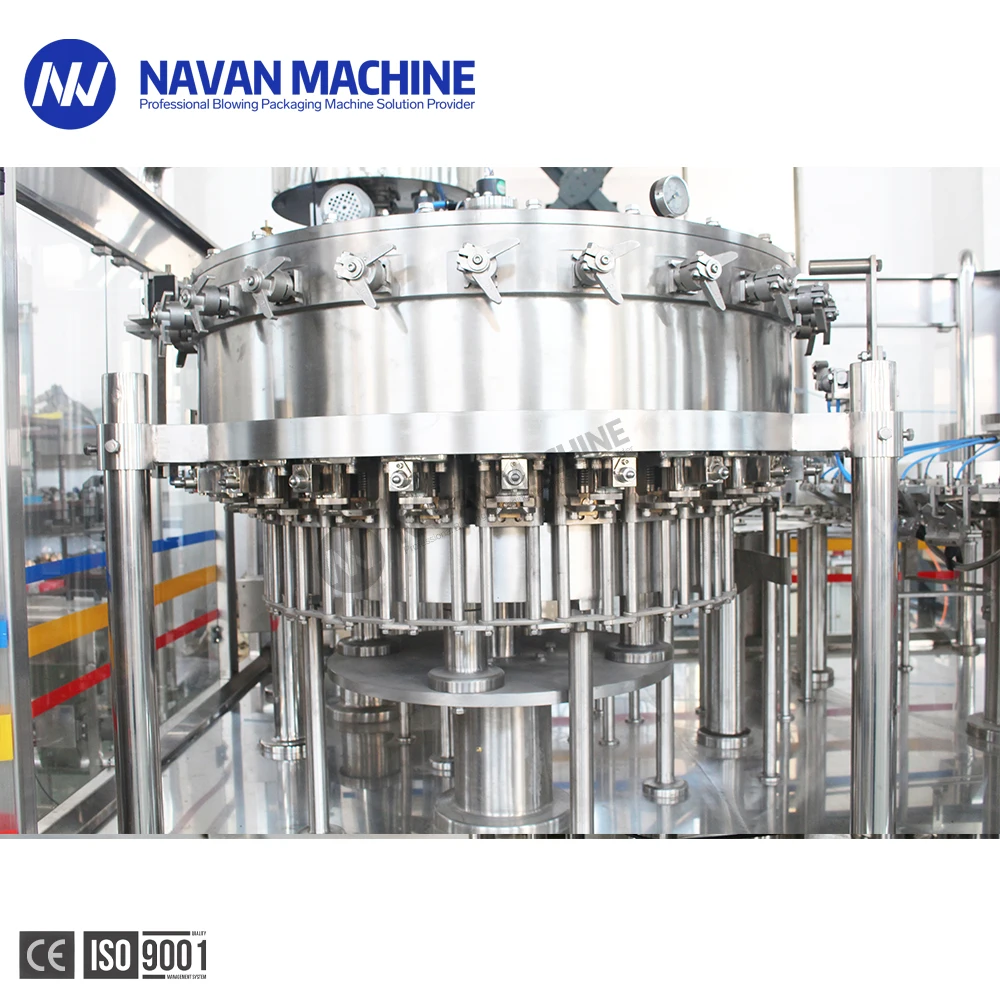

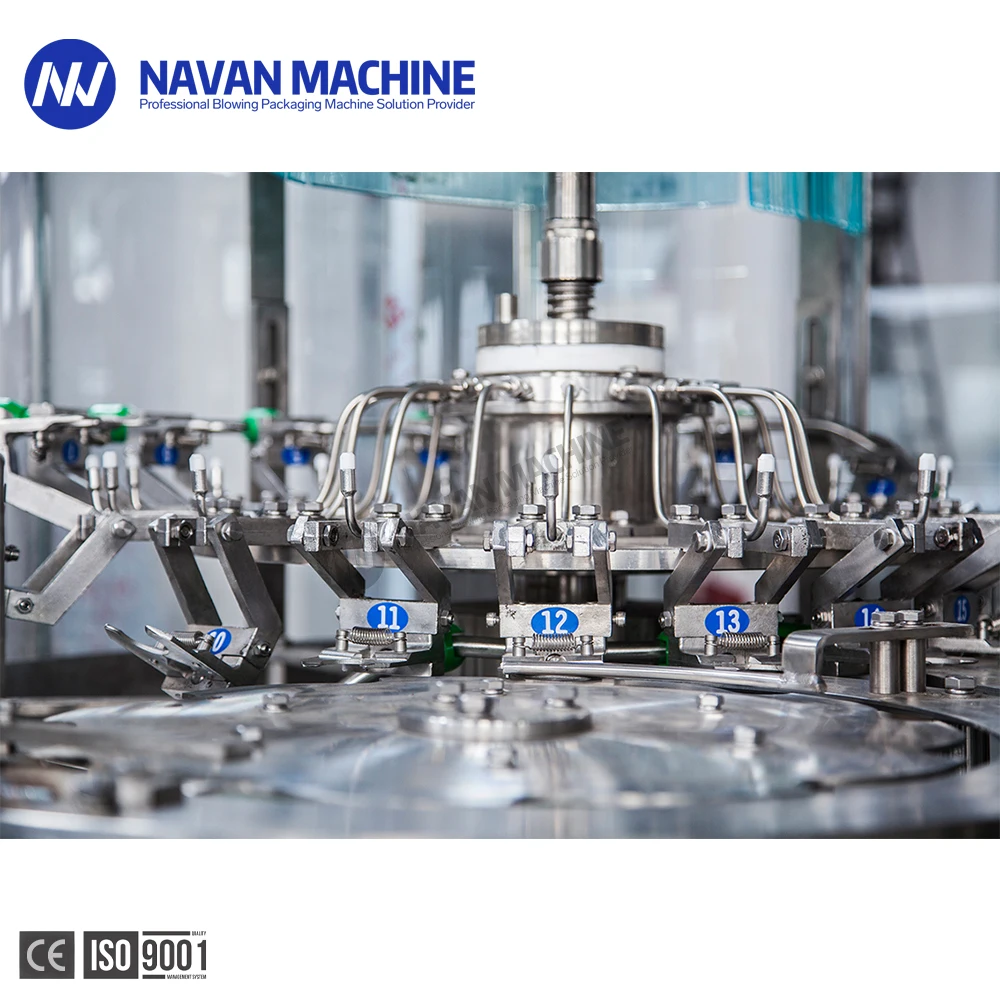

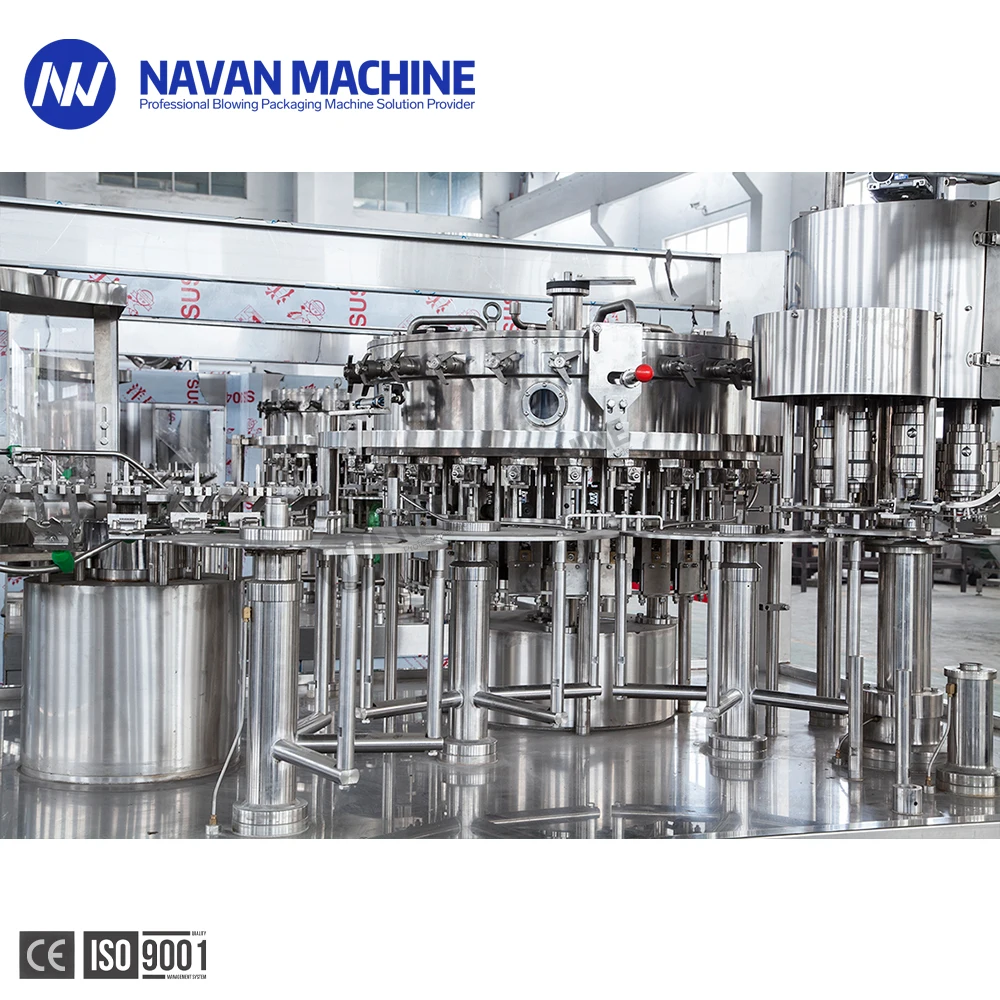

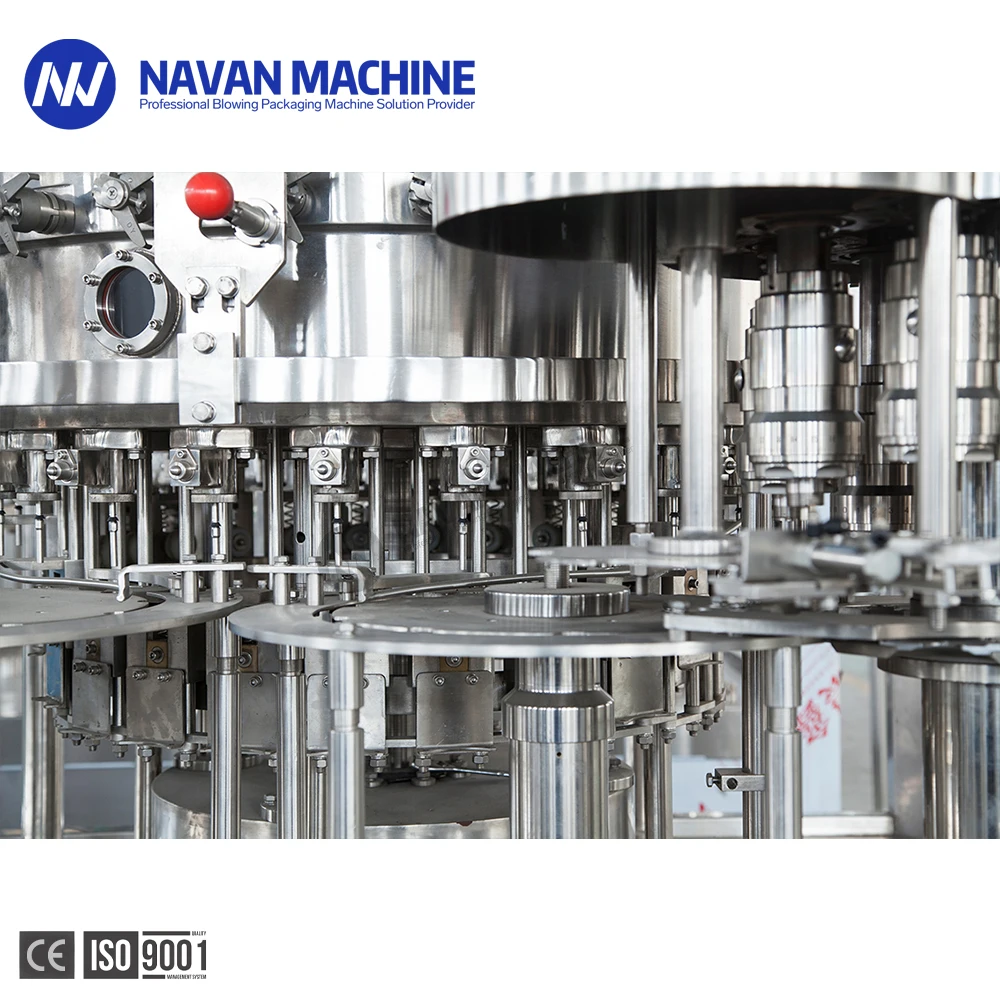

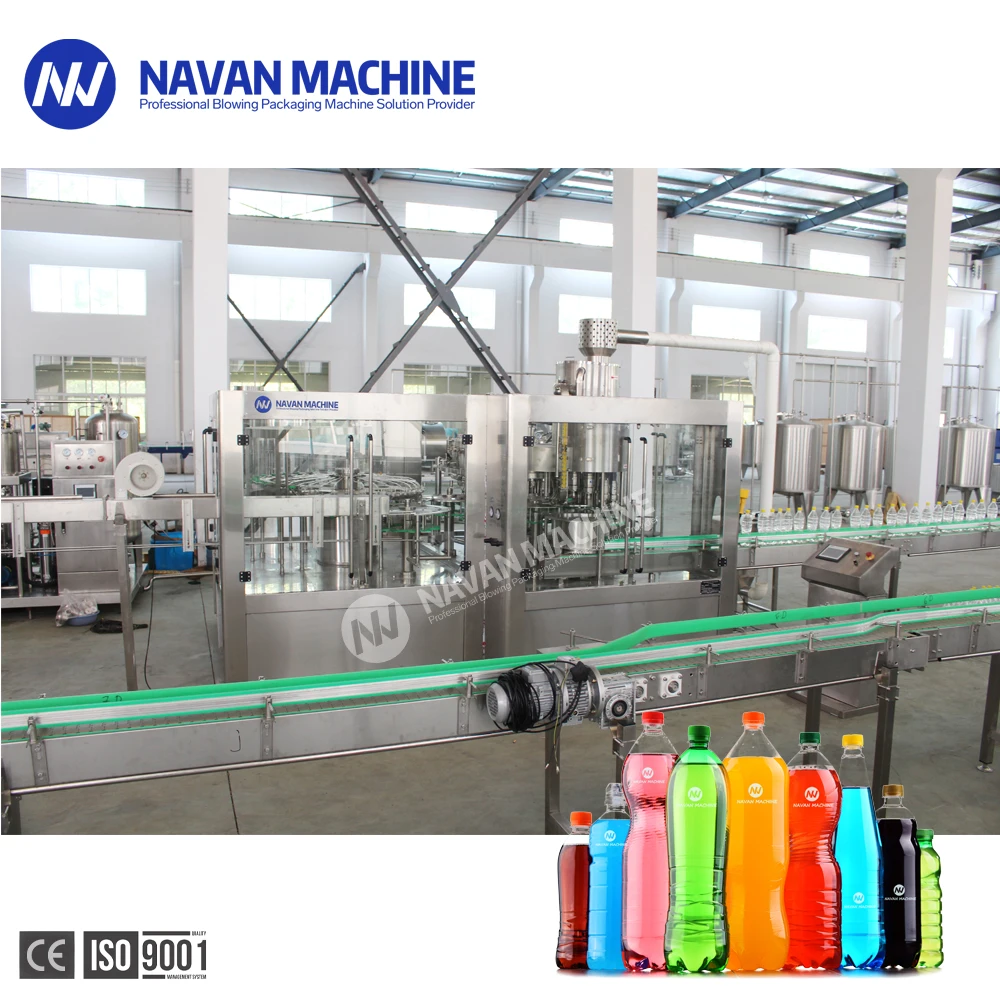

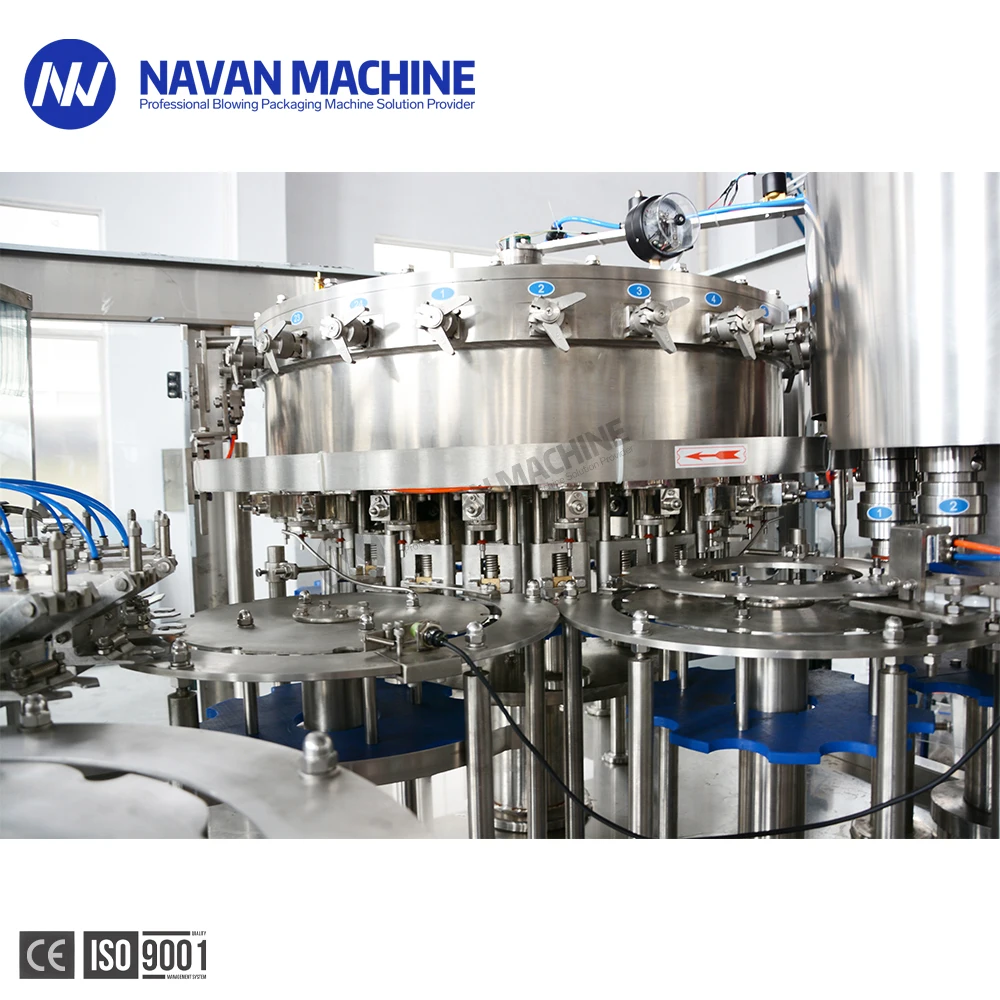

4-NAVAN CGFD Carbonated Beverage Filling Machine [ Washing Filling Capping 3 in 1 type ]

This kind of complete set of carbonated soft drink filling machines combining rinsing ,filling ,capping function into one unit adopting advanced International technology, is a fully automatic and high efficiency gas liquid filling and packing machine . It is suitable for filling and packing the carbonated (aerated)beverage ,such as Cola , Soda water , Kvass , Kombucha , Banana Beer . Its has the following features :all parts ,for instance , filling valves ,which directly contact material are made of food stage stainless steel .So It reach the requirements of food sanitation .Capping part are made of heat-proofing rubber ,in order to meet the technique requirements of users to sterilize the whole machine at high temperature . Adopting programmable controller to realize fully automatic control from bottle entering to finished packages .Using the transducer as speed regulator , so the user can regulate the machine easily to meet different power requirements . Adopting balanced pressure filling principle and spring valves to assure the beverage quality .Besides these, it also use advanced magnetic coupler to regulate the cap-screwing torque to avoid cap and bottle damages.

1 / Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage
2 / Optimum uptime: 30 % reduction in changeover and maintenance downtime
3 / Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4 / Hygiene improvement through volume control and contactless filling
5 / Automatic dummy bottles: Safer, easier cleaning procedures
6 / Automatic bottle changeover improves uptime

5 - NAVAN Bottle Warmer and Pasteurization Tunnel System.

- Mainly for cooling and sterilization
- The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
- Nozzles are manufactured using U.S. technology and spray water evenly
- Conveyor belt adopts Rexnor technology, flat surface with small wear
- Smooth and reliable operation with low energy consumption

OPP Rotary Labeling Machine

Shrink Sleeve Labeling Machine

Adhesive Labeling Machine

6- NAVAN Machine Bottle Labeling Machine.

Boasting four carousel sizes, up to three labelling stations and 24 configurations, can generate outputs of up to 72,000 containers per hour, when standalone, at an efficiency rate of 98%.
Benefits
As customer request and market demand ,we provide the better solution for the final product package ,We have various kinds of options .Labeling machine have the PVC sleeve label ,BOPP hot glue label,Adhesive stick label ,Wet glue label ,and packing machine have the film shrink machine and carton box package.

Finished product display

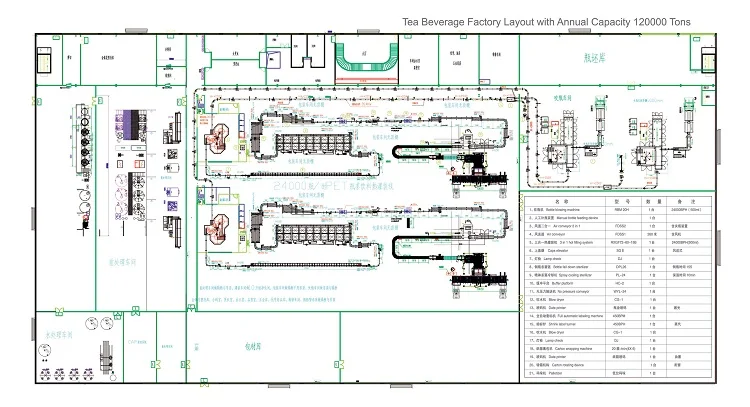

We design the factory layout based on customer factory sizes,whole line design is based on famous brand motors and automatic lubricant system ,and with less power consumption ,and save space .

Automatic Carton Packing Machine with hot melting glue

L Type Filmg Wrapping Packing Machine

Linear Type Film Wrapping Packing Machine

7- NAVAN Machine Bottle Packing Machine.

Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The final result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure and temperature changes.Whether you choose shrink-printed film, nested packs or wraparound cartons, NAVAN Machine packers gently feed bottles to ensure durable and cost-effective packs.

BENEFITS.
1 / Pack consistency and quality
2 / Gentle and precise infeed configuration
3 / Flexible handling of multiple SKUs
4 / Automatic pack and raw material changeovers
5 / Heat, glue, carton and film optimisation

Would like to know more about NAVAN Machine equipments, feel free to send us an inquiry!

Finished product display

Full Set Complete Energy Saving Drinks Production Line Table Top Brand Carbonated Beverage Filling Cola Machine

Leadership in quality and technology from raw material to bottled liquid to selling products - NAVAN Industrial Co.,Ltd, A-Z turnkey plant supplier, is known for developing innovative high-end products and new technologies.

Product Parameters

Model	CGFD8-8-3/4	CGFD12-12-5/6	CGFD18-18-6	CGFD24-24-8
Application	Carbonated drink /aerated drink / Sparkling Drink drink and so on
No. of Rinsing/Filling/Capping	8-8-3/4	12-12-5/6	18-18-6	24-24-8
Production Capacity(500ml)	800~1000BPH	2000~2500BPH	4000-5000BPH	7000~8000BPH
Filling precision	≤±5mm(liquid level)
User Ambient Conditions	Temperature:10~40℃; Humidity: No dew
Suitable bottle specification	Volume=100-2000ml Diameter φ=50-100mm Bottle height H=150 ~340mm			Volume=100-2500ml Diameter φ=50-115mm Bottle height H=150 ~350mm
Bottle type	Plastic bottle / PET Bottle
Bottle neck/Cap Style	Plastic Screw Cap φ=20-50mm
Machine material	Food stage SS304 OR SS316
Air source pressure	0.5~0.6Mpa
Filling way/principle	Isobar filling method
Control system	SIMENS PLC+ TOUCH SCREEN
Features	No Bottle No Filling No Bottle No Capping
Main Power	1.9kw	3.5kw	4.0kw	4.8kw
Power Supply	Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement
Overall dimensions (mm)	190014202000	205018002400	258021002200	278022002200
Weight (kg)	1500	2500	3500	4500
All machines could be customized, we could design and produce machines according to your request.
Model	CGFD32-32-10	CGFD40-40-10/12	CGFD50-50-12/15	CGFD60-60-15
Application	Carbonated drink /aerated drink / Sparkling Drink drink and so on
No. of Rinsing/Filling,/Capping	32-32-10	40-40-10/12	50-50-12/15	60-60-15
Production Capacity(500ml)	9000-10000BPH	15000-16000BPH	19000-20000BPH	22000~24000BPH
Filling precision	≤±5mm(liquid level)
User Ambient Conditions	Temperature:10~40℃; Humidity: No dew
Suitable bottle specification	Volume=100-2500ml Diameter φ=50-115mm Bottle height H=150 ~350mm
Bottle type	Plastic bottle / PET Bottle
Bottle neck/Cap Style	Plastic Screw Cap φ=20-50mm
Machine material	Food stage SS304 OR SS316
Air source pressure	0.5~0.6Mpa
Filling way/principle	Isobar filling method
Control system	SIMENS PLC+ TOUCH SCREEN
Features	No Bottle No Filling No Bottle No Capping
Main Power	5.5kw	7.5kw	11kw	15kw
Power Supply	Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement
Overall dimensions (mm)	380028002600	460028002600	545033002600	650045002600
Weight (kg)	6500	8500	9800	12800
All machines could be customized, we could design and produce machines according to your request.

Recommend Products

Bottle Blowing Machine

Water Treatment System

Water Filling Machine

Bottle Labeling Machine

Bottle Packing Machine.

Beverage Solution

Best Service

Options & Upgrades.

Beverage producers need to be able to meet the demands of an evolving beverage industry, and NAVAN Machine is committed to ensuring optimal productivity and performance over your line's entire lifetime. With NAVAN Machine Options & Upgrades, new technologies or refurbished components help to maintain or even improve performance - without replacing your entire line.
Options: New functionalities that optimise flexibility and costs
Upgrades: New technologies that improve performance, safety, hygiene and resource savings
Since we built your line, we have a comprehensive understanding of its design, and our engineering experts can analyse equipment and processes to determine how to strengthen performance. As new technologies and solutions are introduced to the market, we ensure that your production benefits accordingly, so you can stay on target in a changing, competitive marketplace.

NAVAN Machine Options & Upgrades helps you:
The sample service

1. We can send you the video of the running machine for your reference .

2. You are always welcome to come to visit our factory and watch the operation of the machines here. We will make the arrangement to pick you up when you reachthe airport or the railway station.

3.If we get the permission of the customer who has brought the machines from us, we will arrange for your visit to their factory.

Customized service

1. We can design the machines according to your requirements(material, power, filling type, the kinds of bottles, and so on).

2. At the same time, we will give you our professional suggestions on factory design, bottle design, label design, etc

After-sales service

1. We will provide the B/L and concerning Invoice, Packing List, Certificate on time to make sure you can get the machine quickly

2. When you finish the Preparation conditions, we will send our engineer to your factory for the installation, testing and training .

3. We provide one-year warranty with spare parts free since the machine installation done. Browse our online catalogue

Label Design.

We can provide the label design according to the bottle size, the icon style you want.

Bottle Design.

Our designers can design bottle styles according to your requirement.

Machine Layout.

We will design andconfirm the machine layout according to your factory sketch.

Why Choose Us

NAVAN Machinery.

Navan Industrial has invested its best resources in technical research, to design and realize innovative in bottle blowing, filling, capping , labeling and packing systems which enable to respond and reach different demands and achieve new goals everyday, seizing the market's expectations in the pass years . At the same time , we also provides turn-key services for customers, from plant layout, equipment manufacturing, production line setup, to operators training. We are always trying our best to meet the demands of our customers continuously and seeking for mutual development. Today Navan has enhanced its exsitence both in domestic and global market. Thanks to its various and perfect cases, we provide our customers with delicated and customized solutions at quick response. Navan machines are utilized in large and small companies all around the world since 1990s. Massive experience gained through the years of water, juice , soft drink , beer, honeys, sauces etc., with all the abundant experience we are able to deal with any problems related to specific customers requirements, such as daily or special products., and perfect the creation of various machine to satisfy any customer's demands.

Factory Show.

<1> Standardized workshop of total 3,000 square meters.

<2>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.

<3>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.

<4>Engineers are experienced. We can produce different products with different capacities and work out reasonable flow chart as per customers’ requirements to save space.

<5>Professional installation team can speak fluent English can help customers make benefits in the shortest time.

Certificates.

Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS-COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration,etc.

Customers.

We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature techniques and first-class quality.

FAQ

Q 1 When can I get installation from you? how much the cost?

When you finish the preparation conditions(water resource,electricity,air supply,production materials) according to our designed layout , please contact with our sales manager, we will dispatch engineer to you.

 Inspect and improve connection jobs together with your team .

 Guide your staff to operate machines , and explain how to operate and maintain machines .

 Collected your your comments on our machines , we will send feedback to our technical team to improve our machines continuously. The customer should be responsible for the room, meals and board and the two-way air tickets and visa and fee as well the allowance 100~200USD per day for each person. And should be also responsible for the engineer’s personal safety. Note: Normally when your preparation is done,you can contact with our sales people and cooperate us to get the visa for the engineer and our engineer will be there within 15 days more or less .

Q 2 How long time for installation?

According your machines order,we will send one or two engineers to your plant,it will take about 15 days to 30 days.

Q 3When can I get my machine after I paid?

Normally production time is around 30-60days , it depends on your ordered machines and quantity . The shipping time is based on your destination port.(Usually we use Shanghai port , Ningbo Port as loading port )

Q 4 How about the spare parts?

We will send one year enough easy broken spare parts together with the machines together when delivery. During the warranty time, we will supply the spare parts with our cost price including and delivery fees.

Q 5 How to test machine before delivery?

We will connect all machines in line make them running over 8 hours non-stop , then take and send testing videos. Or we could live video inspection.

Q 6 Do you have reference project?

We have reference project in most countries. After getting the permission of the customer who has brought the machines from us ,we will send you their contact information and arrange your visiting to their factory. And you are always welcome to come to visit our factories ,and inspect the machine running in our factory .We will be glad offer necessary supports on hotel booking , transportation , VISA application. OR you can get video of our reference running machine on our website too.

Q 7 Do you provide a turnkey project?

YES Turnkey project is available .We can help you to start a new beverage / water factory from A to Z.

Q 8 What`s your guarantee or the warranty of the quality if we buy your machines?

We offer you high quality machines with 1 year guarantee and supply life-long technical support for free.

Q 9 : What kind of machines you supply, where are you located?

We are factory , just 150km(1.5hour by car) away from Shanghai Airport. We offer pickup service at Shanghai for your visit.

NAVAN supply and manufacture the followings machines

1) Water treatment equipment--- Electrolytic water equipment, RO purified equipment, UF purified equipment, Sand filter, Carbon filter, Water softner, Sea Water treatment.

2) Filling Machine --- 2 in 1 Filling Capping Machine / 3 in 1 Washing filling capping machine / 4 in 1 Washing filling capping machine / 5 in 1 Washing filling capping machine ---for your water, beer , kombucha , Kvass , cabonated drink,juice,wine,vinegar, milk,tea and so on. --- 100 to 2500ml bottle, 3-10L,11- 20L bottle (3-6gallon bottle) --- PET bottle, Glass bottle, PP bottle and Can --- Pressure Cap , Screw cap, Aluminum cap, Grown Cap , T-cork , Wooden Cork and three (four) twist caps etc.

3) Labeling Machine --- Stick label, Shrink sleeve label, Hot melt Opp labels. Wet gule label

4) Printer --- Manual code printer , Inkjet printer , Laser printer

5) Packing Machine ---- Shrink wrapper , Carton Packer , Palletizer , Conveyor system , Robot Packing System

6) Bottle Blowing Machine --- Linear and Rotary Blowing Machine for making plastic bottle

7)Injection Molding Machine --- for your cap and proform.

8) Subsidiary products for drink production --- Bottle Washer, Bottle Capper, Conveyor, Bottle Dryer, Bottle Warmer, Bottle Loading system, Bottle unscrambler, CIP system, Bottle Cooler, Bottle Sterilizer, Blending tank, Storage Tank, Sugar Melting Pot, Syrup Filter Conveyor and so on.

NAVAN will supply you bottle design, label design, workshop design free and make Turnkey Project for you. Don't hesitate to contact us if you show interested on our beverage production machine and our NAVAN company.

+8615601563990

[email protected]

+86-15601563990

Carbonated Drink Filling Machine

All Categories

All Small Categories

Complete Fully Automatic Carbonated Energy Drink Bottle Filling Production Line

Description

Complete Fully Automatic Carbonated Energy Drink Bottle Filling Production Line

6- NAVAN Machine Bottle Labeling Machine.

7- NAVAN Machine Bottle Packing Machine.

NAVAN Machinery.

Get a Free Quote

Our Products

Quick Links

GET IN TOUCH

+8615601563990

[email protected]

+86-15601563990

Carbonated Drink Filling Machine

All Categories

All Small Categories

Complete Fully Automatic Carbonated Energy Drink Bottle Filling Production Line

Description

Complete Fully Automatic Carbonated Energy Drink Bottle Filling Production Line

6- NAVAN Machine Bottle Labeling Machine.

7- NAVAN Machine Bottle Packing Machine.

NAVAN Machinery.

Related Products

Automatic Rotary PET Bottle Oil Filling Machine for Olive Sunflower Edible Oil and Cooking Oil Bottle Bottling Packing Line

Navan Trade Assurance RO Water Treatment System with Pump Juice Solution Lines Ideal 1-Year Warranty

China Maker's Flexible CSD Filling Machine Energy Drink Can Filling Line for Food & Beverage for Plastic Bottle Packaging

Full Automatic Drinking Water Bottle Filling Machine Water Bottling Machine Whole Production Line

Get a Free Quote

Get a Free Quote

Get a Free Quote

Get a Free Quote

Get a Free Quote

Our Products

Quick Links

GET IN TOUCH
