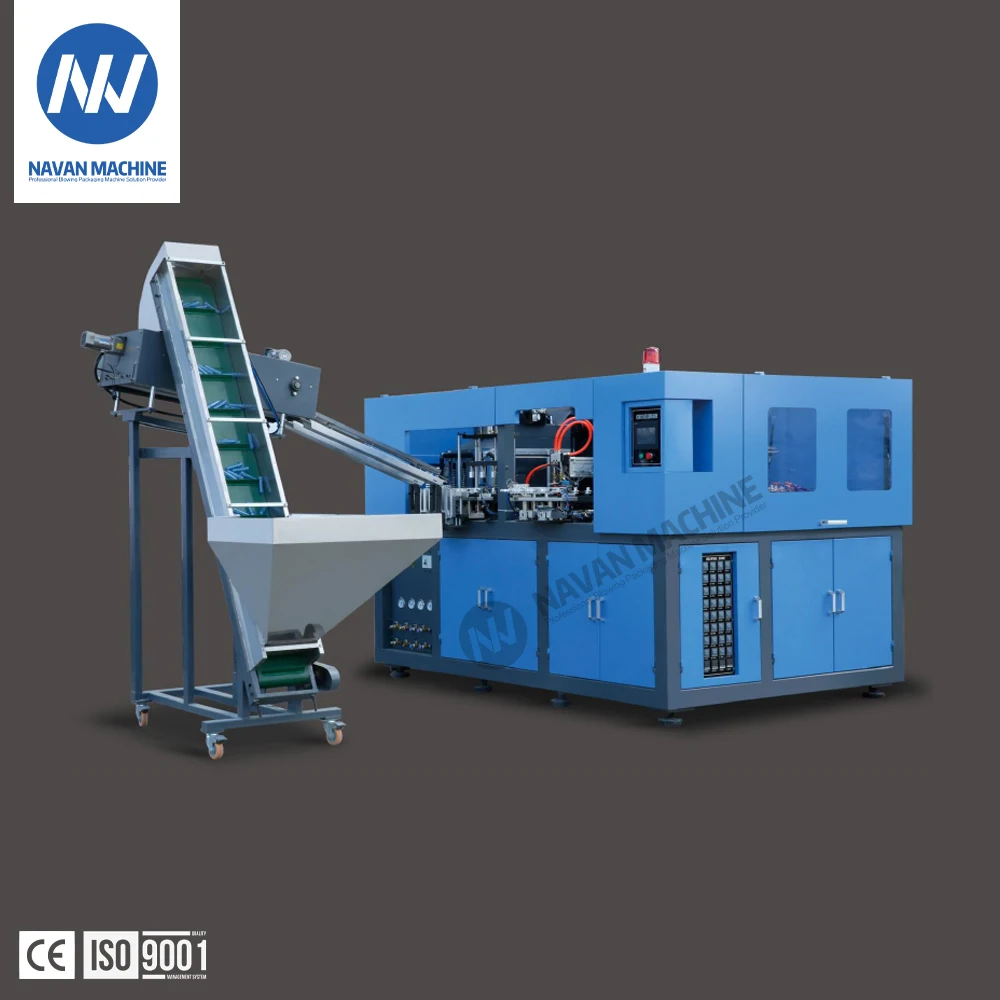

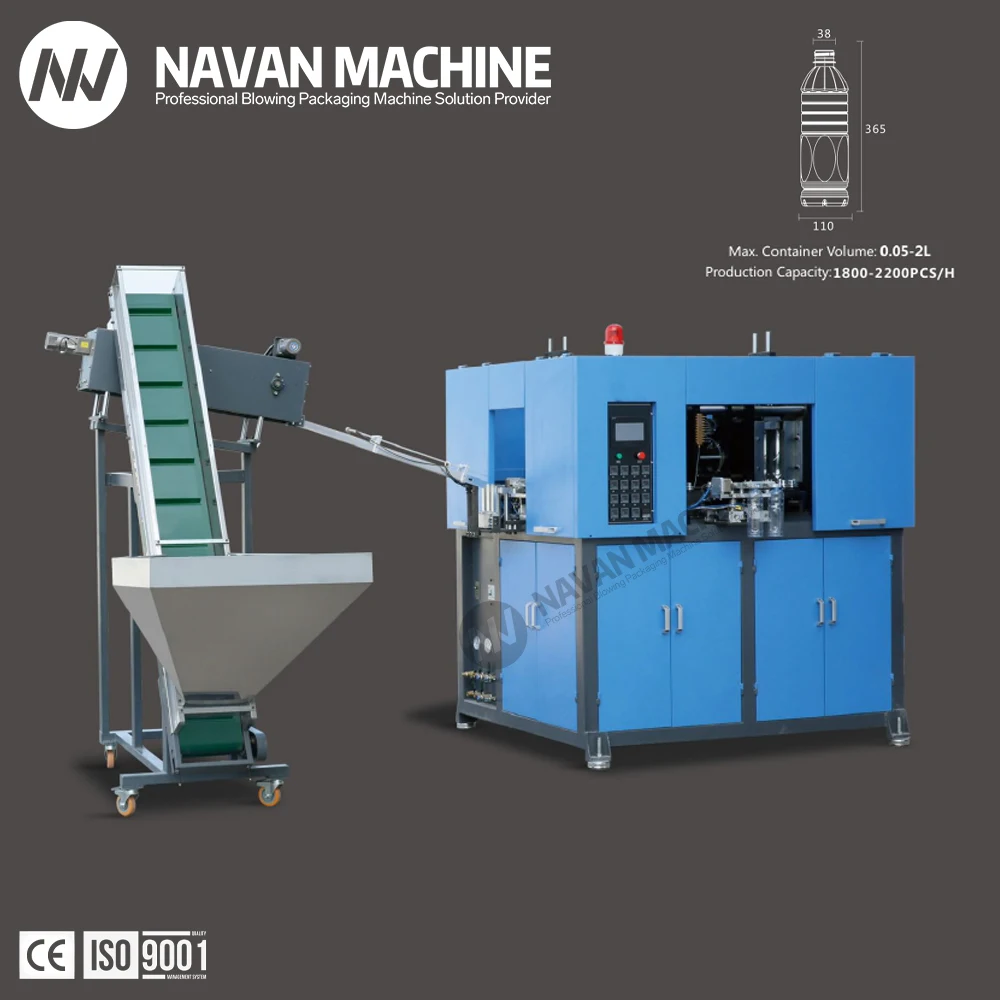

Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine

Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine

The Full Automatic PET Bottle Blowing Machine is a high-efficiency solution for plastic bottle manufacturing, capable of producing 1800-2200 bottles per hour. This versatile system handles a wide range of bottle sizes from 50ml to 2L, making it ideal for beverage, pharmaceutical, and chemical packaging industries. Featuring advanced PET blow molding technology, the machine ensures consistent quality and precise dimensional control in every production cycle. The fully automated operation minimizes human intervention, reducing labor costs while maximizing productivity. Built with industrial-grade components, this machine offers stable performance, low maintenance requirements, and excellent energy efficiency. The user-friendly control interface allows for easy parameter adjustments and quick mold changes, while the safety systems protect operators during production. This reliable equipment is perfect for both small-scale manufacturers and large production facilities looking to enhance their bottle manufacturing capabilities.

Get a Quote
  • Description

+8615601563990
[email protected]
Inquiry
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine manufacture
NAVAN Machine.
We produce NB series of fully automatic, semi-automatic PET blow molding machines and other 0.2L-2L Full Automatic Blow Molding Machine with output from 1000 to 8000 bottles per hour, which can satisfy different customers' requirements. Our products Certificated by CE. In order to meet customers’ specific requirements, factory offer product capacity ranges from 50ml to 30L, suitable for all kinds of PET bottles which contain mineral water, carbonated beverages, fruit juice, teas, edible oils cosmetics, detergents, and wide-mouth jar, etc. Navan Machinery is an ideal choice for large beverage factories, mineral water companies, and PET packaging enterprises.
Products Description
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine manufacture
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine.
Full automatic blow molding machine is suitable for producing PETplastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine manufacture
Container
Max Container Volume Itr
2
Max Neck Diameter mm
50
Max Container diameter mm
110
Max Container Height mm
320
Details Images
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine details

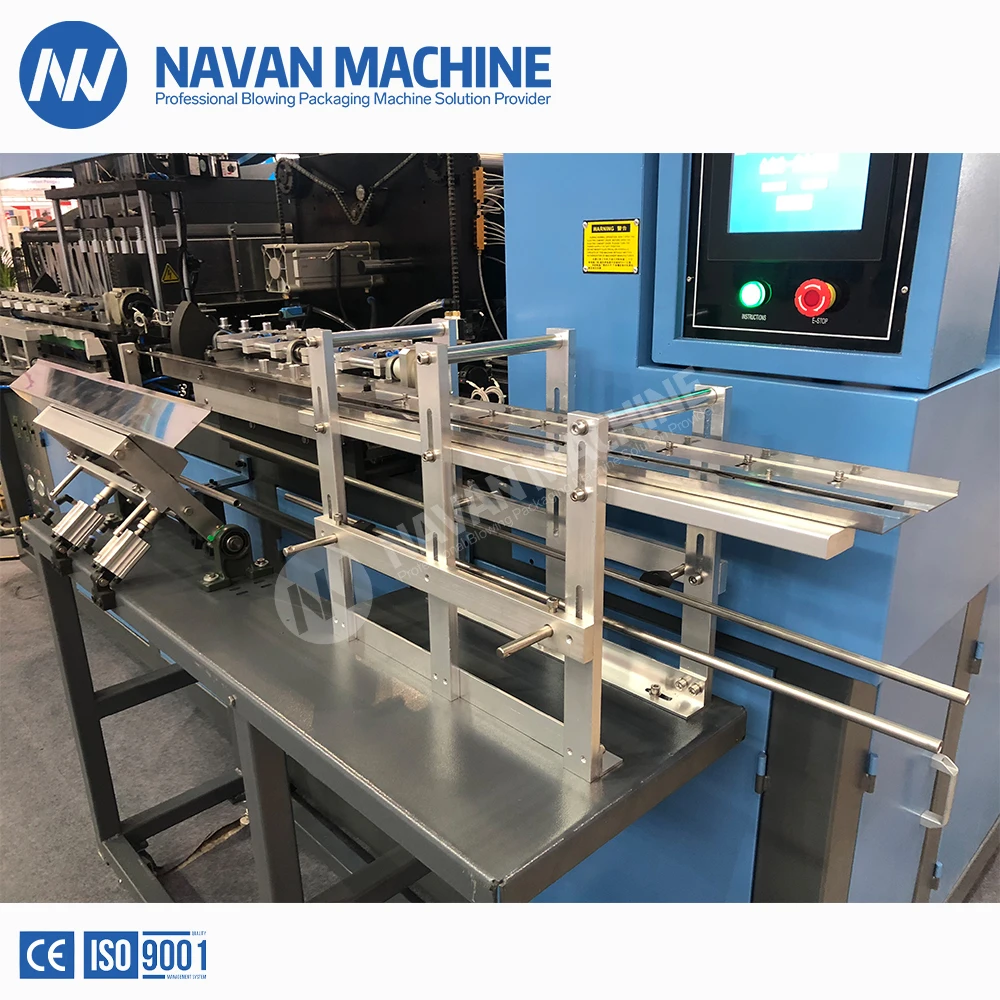

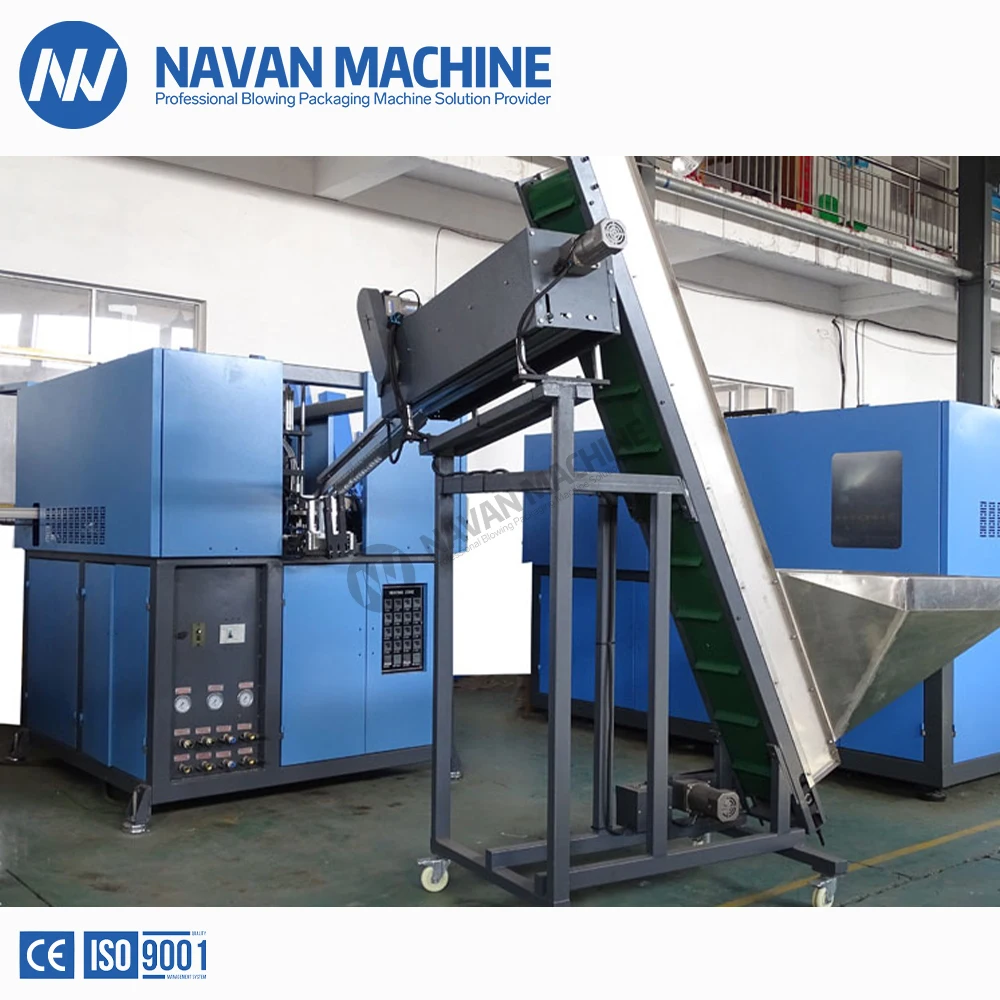

New Auto Preform Unscrambler System.
*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and abrasion problem.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine supplier

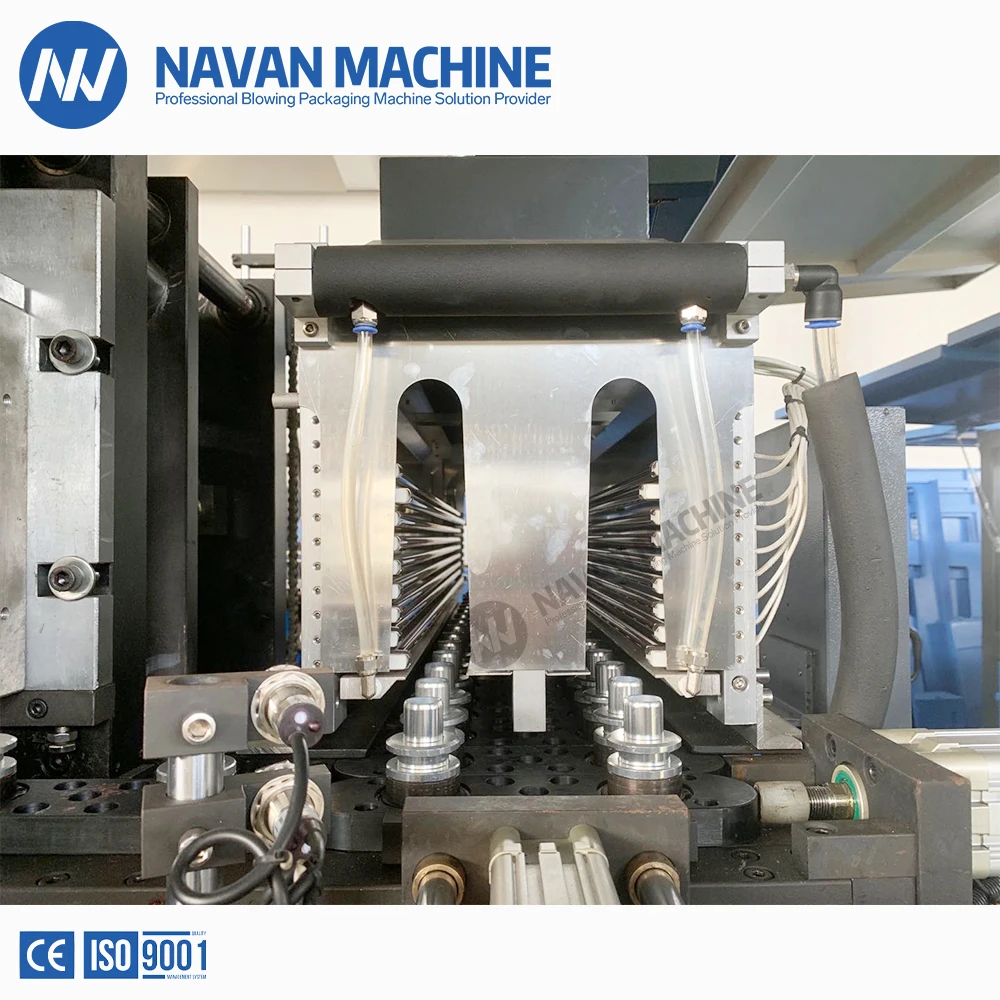

New Heating System.
*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine manufacture

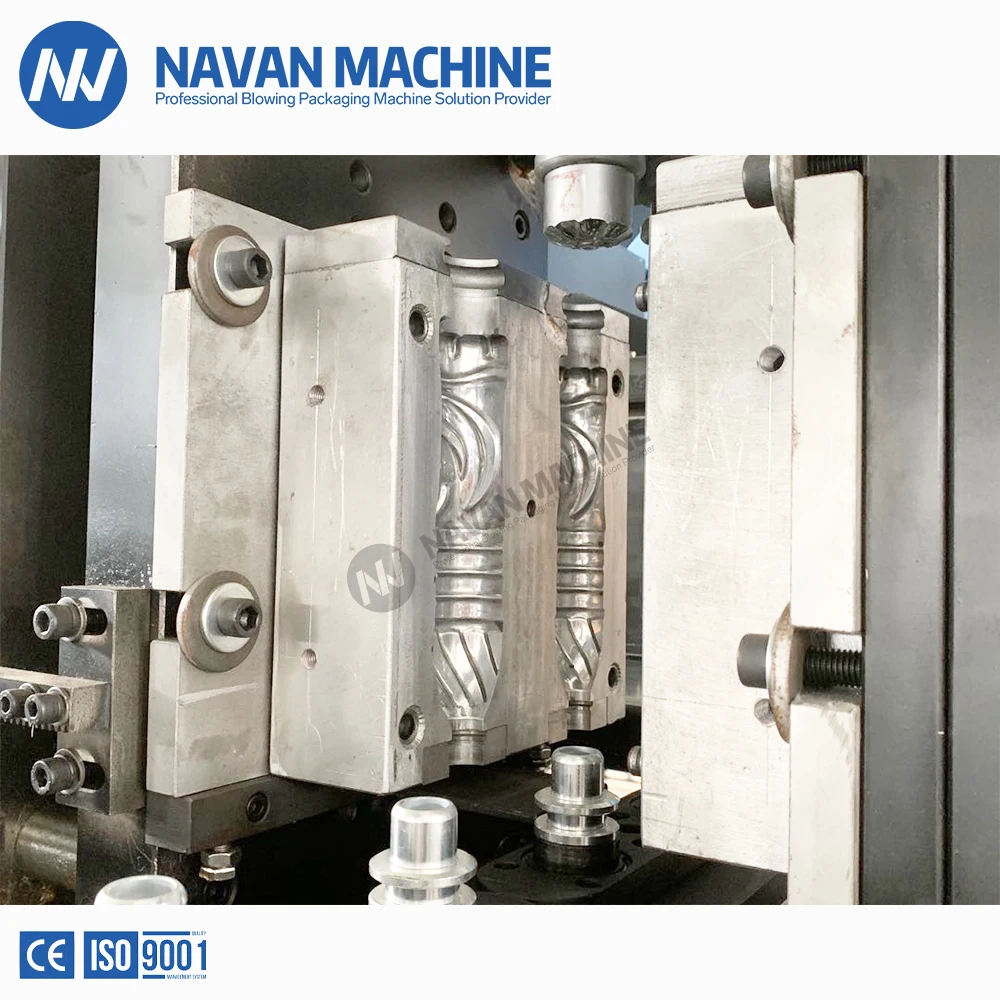

Easy To Change Bottle Shape.
*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottle neck diameter.
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine factory

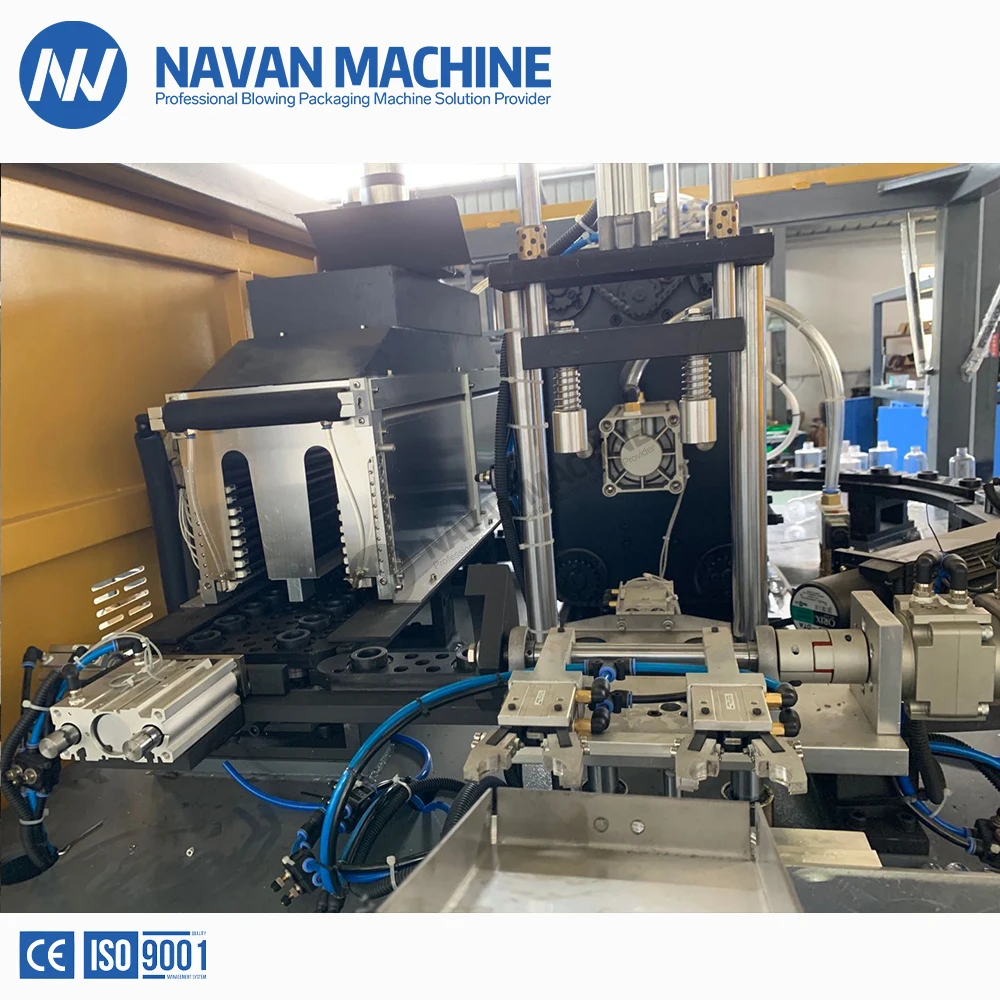

Servo Technology Innovation On Clamping System & Stretching.
* Adopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine manufacture

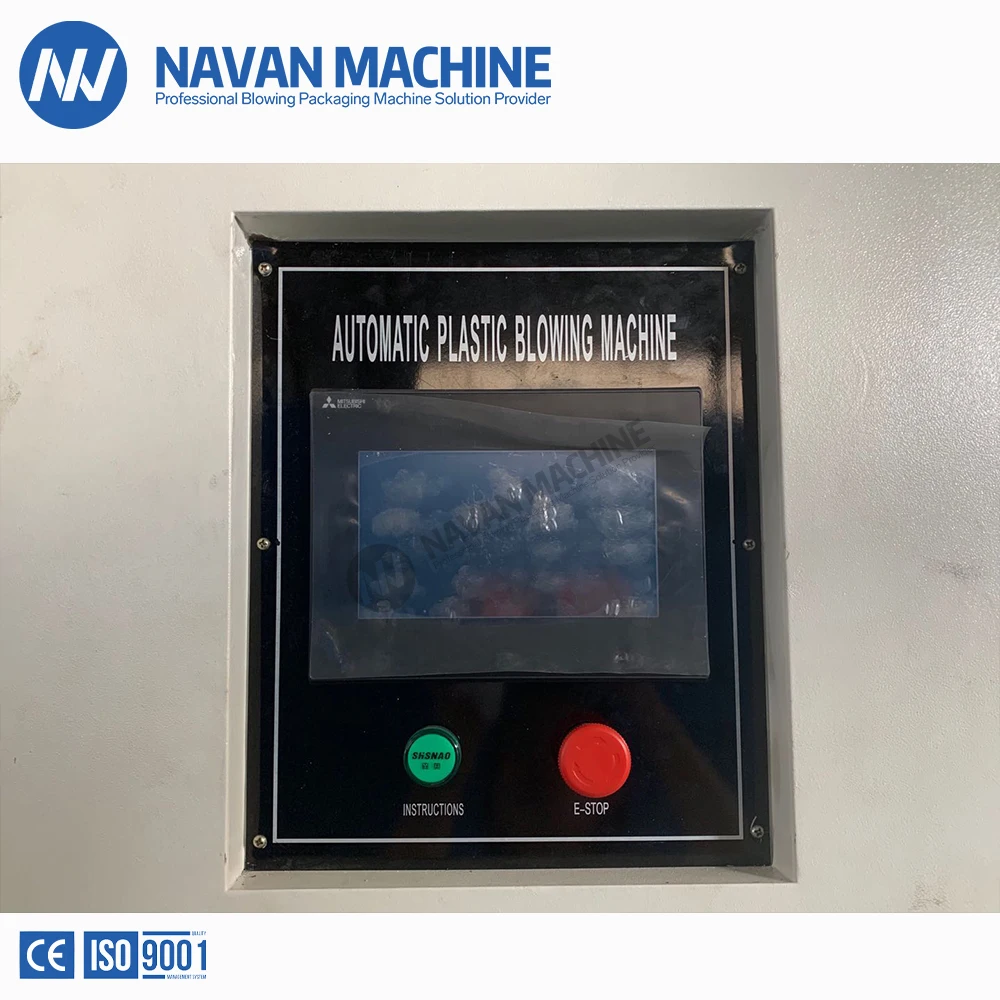

Intelligent Human-Machine Interface.
*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine supplier
Intelligent Human-Machine Interface.
*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
Product Paramenters
Model
NB-2000
NB-2000S
Molding
Clamping Force kg
18000
14000
Clamping Stroke mm
125
125
Stretching strok mm
450
450
Bottom Stroke mm
40/70
40/70
Cavity Spacing mm
120
120
Number of Cavity Cavities
2
2
Carriage Unit pcs
66
66
Theoretical Output
bph
1800-2200
1800-2200
Electrical System
Total Power kw
26
26
Heating Power kw
16x1.5KW=24
16x1.5KW=24
Number of Lamp Layers Layers
8
8
Air System
Operating Pressure kg/cm²
7-9
7-9
Low Pressure Air Consumpt Itr/min
1600
1600
Blowing Pressure kg/cm²
20-30
20-30
High Pressure Air Consumpt Itr/min
1600
1600
Chiller
Operating Pressure kg/cm²
2-4
2-4
Temperature Range ℃
10-12
10-12
Consumption kcal/hr
2000
2000
Flow Rate Itr/min
130
130
Main Machine
Main machine dimensions mm(L*W*H)
1950 x1850x2100
1950x1850x2100
Main Machine Weight kg
1950
1950
Preform Loader
Preform Loader Dimensions mm(L*W*H)
2150x1450x2450
\
Preform Loader Weight kg
450
\
Recommend Products
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine details

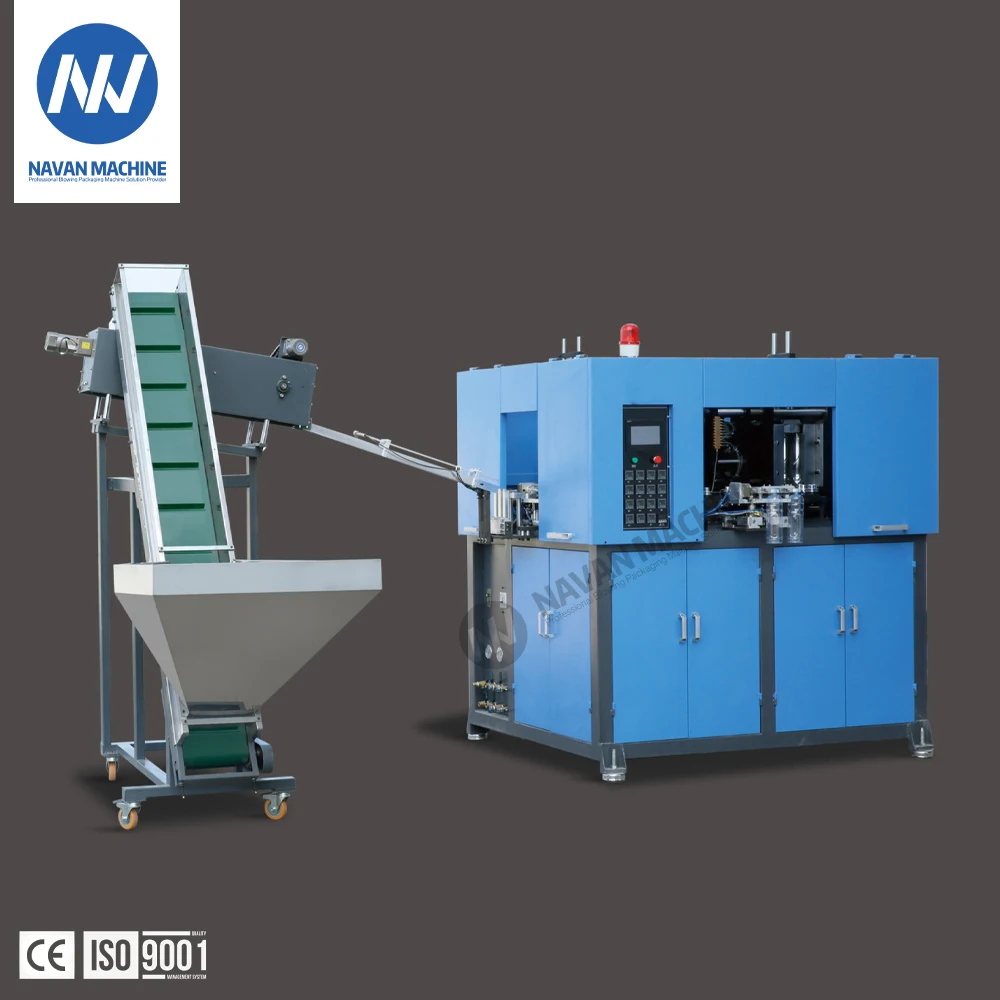

Full Automatic PET Bottle Blowing Machine
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine manufacture

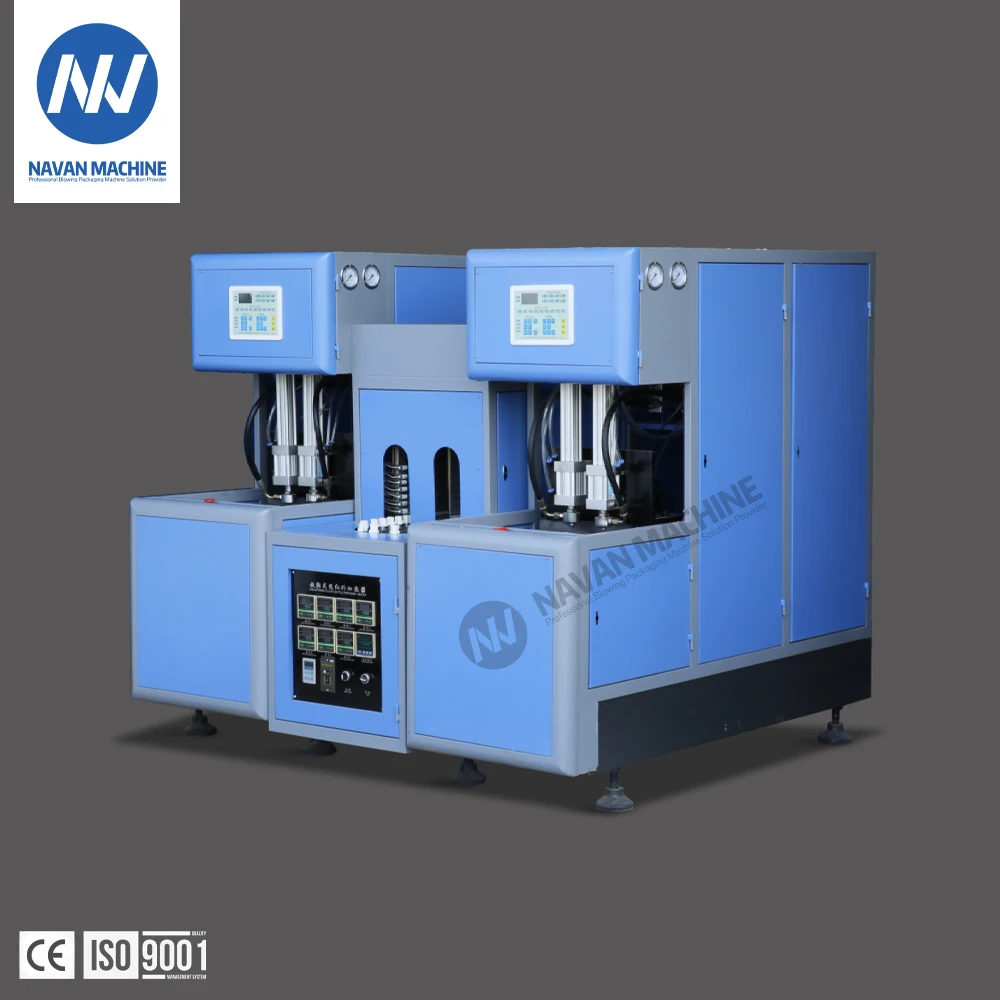

Semi Automatic PET Bottle Blowing Machine
Why Choose Us
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine supplier
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine supplier
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine details

NAVAN Machinery.

We are a hi-tech designing and manufacturing enterprise, which is specialized in beverage production and packing complete lines as well as various water treatment machines. We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China. NAVAN Machinery can provide turn-key services for customers, from plant layout, equipment manufacture, and production line set up to operator training. We will continually carry on trying our best to meet the demands of our customers and seek for development together with our customers. Additionally, we also supply technique consultation, factory construction design plan, equipment installation and adjustment, technology training, and other after-sales services. Now our products are exported to over ten countries and regions, including Southeast Asia, Russia, the Commonwealth of the Independent States, Western Asia, and South Africa.
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine manufacture
Factory Show.
<1> Standardized workshop of total 3,000 square meters.
<2>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
<3>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
<4>Engineers are experienced. We can produce different products with different capacities and work out reasonable flow chart as per customers’ requirements to save space.
<5>Professional installation team who can speak fluent English can help customers make benefits in the shortest time.
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine manufacture
Certificates.
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration,etc.
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine details
Customers.
We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature techniques and first-class quality.
Full Automatic 1800-2200bph 0.05-2L PET Bottle Blowing Machine details
FAQ
Q1 : What is the warranty period?
We provide 12 months warranty for all spare parts. (exclude fragile parts).
Q2 : How do you control the quality?
1) All NAVAN machines are in strict accordance with the ISO quality and CE system requirements. 2) Each procedure is crafted by professional Skilled labour, followed by particular QC 3) All information of our products can be checked in efficient management system.
Q3 : What certifications do you have?
All our products are CE and ISO9001 certified. Numerous design and innovation patent for all our current models and spare parts. Such as the innovation patent squeegee design.
Q4 : What kind of service do you provide?
Before sales: Provide product information, market research forecasting, product customization, product processing, consultation and other services for your convenience.
After sales:
1. Technical training on according to customer requirements;
2. We promise replacement under warranty;
3. We promise to supply the maintenance spare parts;
4. Regular call back or visit customers;
5. On time response to mail and phone calls of your complaints or consultation.
Q5 : Are you a factory or a trading company, where are you located?
We are factory , just 150km(1.5hour by car) away from Shanghai Airport. We offer pickup service at Shanghai for your visit.
