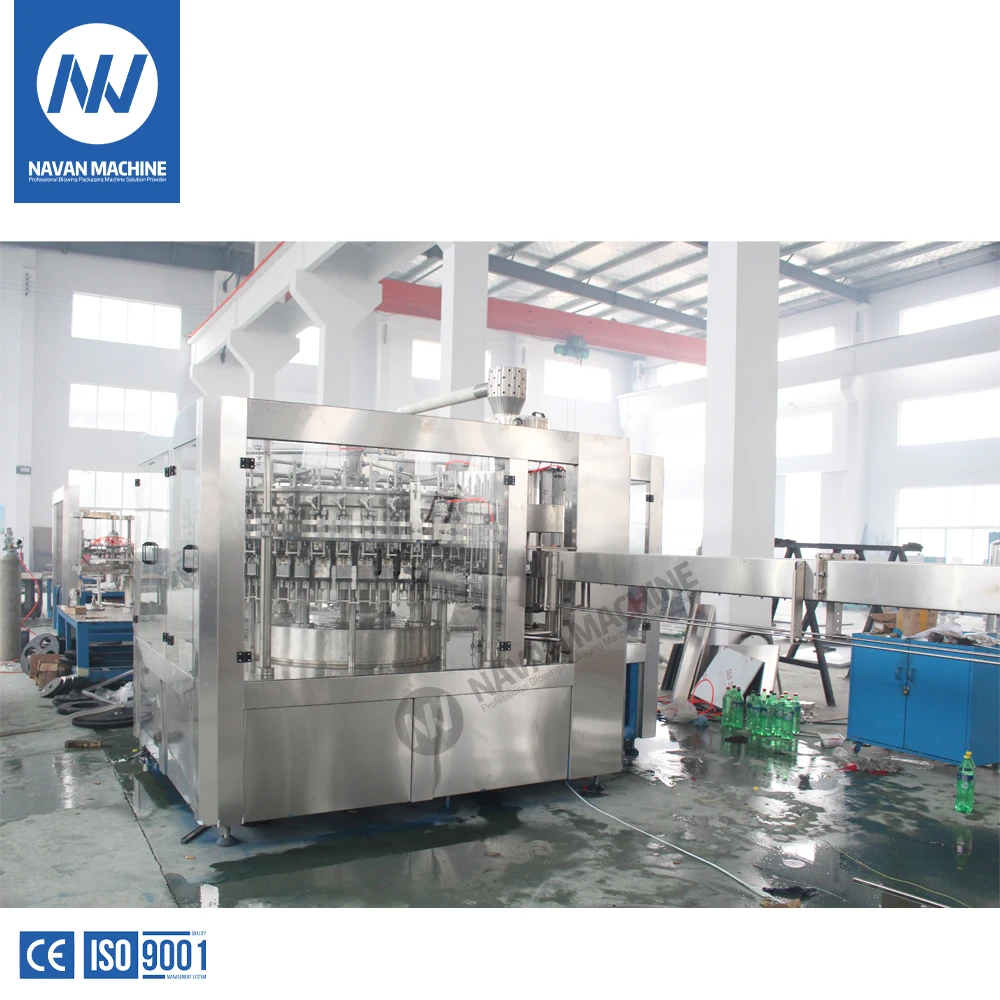

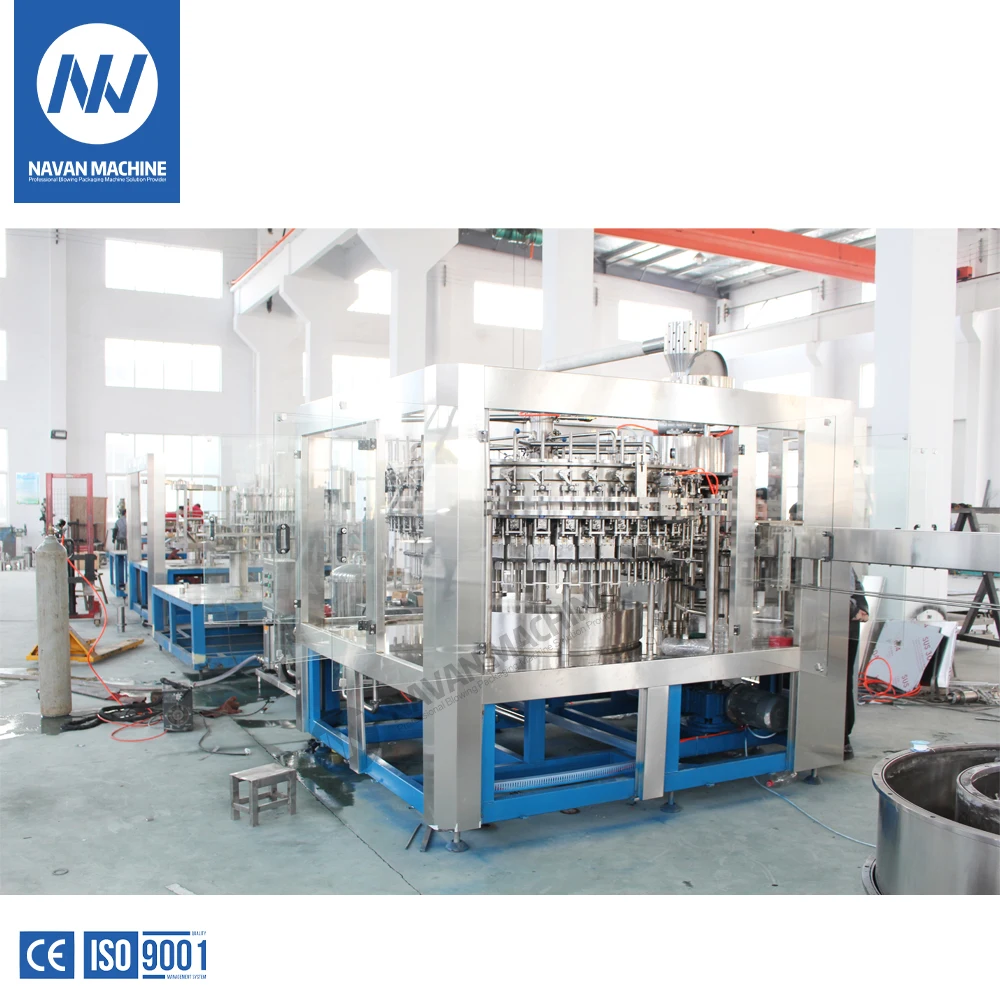

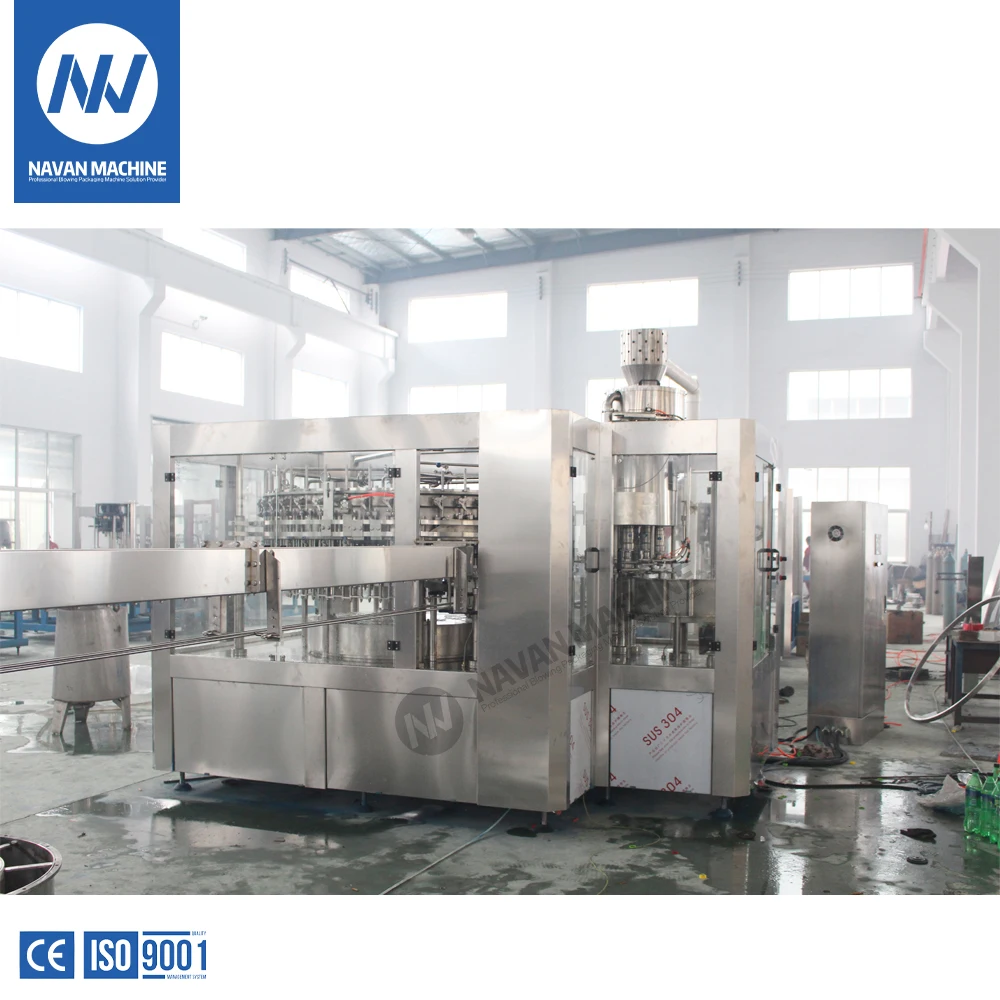

NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line

NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line

The NAVAN 1-liter Bottle Carbonated Beverage Filling Machine is a high-performance production line designed for efficient bottling of carbonated drinks. This automated system handles everything from bottle rinsing to filling and capping, ensuring consistent quality and optimal carbonation levels. Perfect for small to medium-sized beverage manufacturers, the machine processes 1-liter bottles with precision and reliability. Its stainless steel construction meets food-grade standards, while the advanced PLC control system enables easy operation and monitoring. The production line features adjustable filling parameters to accommodate different carbonation levels and beverage types. With enhanced safety features and low maintenance requirements, this equipment guarantees stable performance and minimal downtime. Suitable for various carbonated drinks including sodas, sparkling water, and energy drinks, the NAVAN filling machine delivers industry-standard output while maintaining product quality.

Get a Quote
  • Description

+8615601563990
[email protected]
Inquiry
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line details
NAVAN Machine.
We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China. Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.Navan Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training.
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line factory
We can produce and fill various carbonated beverage bottles, such as cola, Sprite, Fanta, and so on. Here are the main types of bottles we have encountered in the past, from the most common plastic bottles to glass bottles and cans. We have a successful complete solution and will provide you with the best quality service.
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line supplier
Products Description

Navan Machine Bottle Soda Sparkling Water CSD Beverage Production Line for Small Scale Business

We are devoted to supplying complete solution for the carbonated beverage filling plant ,including Water treatment system /Carbonated Beverage Processing , Mixing , Pasteurization system and Carbonation System / Washing filling capping machine / liquid nitrogen dosing system / Auto Bottle Checker / Bottle Spraying Warmer & Pasteurization Tunnel /Inverted bottle cap sterilization chain / Bottle Blow Dryer / Laser Inkjet Printer / Automatic labeling machine / Automatic packing machine / Automatic Conveyor System / Automatic Palletizer system and other auxiliary equipment such as transformer , electric generator , steam boiler , CIP cleaning system forklift truck .... etc
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line factory
One partner for all your needs.
A complete CSD line solution from NAVAN takes into account every step of your PET carbonated soft drink process, from minimising resource waste to determining your bottle's ideal look and weight. With everything centred around one supplier, you get wide-ranging expertise, line equipment and ongoing services. This ensures high quality and efficiency from packaging to equipment,fast ramp-up and beyond.
Different water filling machine capacities
8-8-4 Bottle Carbonated Beverage Filling Machine Capacity:800-2000 bottles per hour.
12-12-6 Bottle Carbonated Beverage Filling Machine Capacity:1800-2000 bottles per hour.
18-18-6 Bottle Carbonated Beverage Filling Machine Capacity:3000-4000 bottles per hour.
24-24-8 Bottle Carbonated Beverage Filling Machine Capacity:6000-7000 bottles per hour.
32-32-10 Bottle Carbonated Beverage Filling Machine Capacity:9000-10000 bottles per hour.
40-40-12 Bottle Carbonated Beverage Filling Machine Capacity:15000-16000 bottles per hour .
50-50-15 Bottle Carbonated Beverage Filling Machine Capacity:19000-20000 bottles per hour
60-60-15 Bottle Carbonated Beverage Filling Machine Capacity:24000-25000 bottles per hour

NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line manufacture
Improve speed and hygiene, complete set of fully automatic PET plastic small bottle carbonated beverage production line/bottled beverage filling machine
1. Packaging solutions for carbonated beverages to reduce your total cost of ownership
2- Higher speed, gentler handling
3. Hygiene production of high-quality beverages
4- Reduce consumption by utilizing resources more effectively
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line manufacture
Would like to know more about NAVAN Machine equipments, feel free to send us an inquiry!
Final Products
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line factory
Equipment Type
Automatic
Bottle Type
PET round or square bottle
Volume 200 - 2500ml
Bottle diameter 50-115mm
Bottle height 160-350mm
Output
up to 24,000 bph
Your product
Carbonated Soft Drink
Product Parameters
Model
XGFD8-8-8-3/4
XGFD12-12-5/6
XGFD18-18-6
XGFD24-24-8
Application
Carbonated drink /aerated drink / Sparkling Drink drink and so on
No. of Rinsing/Filling/Capping
8-8-3/4
12-12-5/6
18-18-6
24-24-8
Production Capacity(500ml)
800~1000BPH
2000~2500BPH
4000-5000BPH
7000~8000BPH
Filling precision
≤±5mm(liquid level)
User Ambient Conditions
Temperature:10~40℃; Humidity: No dew
Suitable bottle specification
Volume=100-2000ml
Diameter φ=50-100mm
Bottle height H=150 ~340mm
Volume=100-2500ml
Diameter φ=50-115mm
Bottle height H=150 ~350mm
Bottle type
Plastic bottle / PET Bottle
Bottle neck/Cap Style
Plastic Screw Cap φ=20-50mm
Machine material
Food stage SS304 OR SS316
Air source pressure
0.5~0.6Mpa
Filling way/principle
Isobar filling method
Control system
SIMENS PLC+ TOUCH SCREEN
Features
No Bottle No Filling No Bottle No Capping
Main Power
1.9kw
3.5kw
4.0kw
4.8kw
Power Supply
Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement
Overall dimensions (mm)
1900*1420*2000
2050*1800*2400
2580*2100*2200
2780*2200*2200
Weight (kg)
1500
2500
3500
4500
All machines could be customized , we could design and produce machines according to your request.
Model
XGFD32-32-10
XGFD40-40-10/12
XGFD50-50-12/15
XGFD60-60-15
Application
Carbonated drink /aerated drink / Sparkling Drink drink and so on
No. of
Rinsing/Filling/Capping
32-32-10
40-40-10/12
50-50-12/15
60-60-15
Production Capacity(500ml)
9000-10000BPH
15000-16000BPH
19000-20000BPH
22000~24000BPH
Filling precision
≤±5mm(liquid level)
User Ambient Conditions
Temperature:10~40℃; Humidity: No dew
Suitable bottle specification
Volume=100-2500ml
Diameter φ=50-115mm
Bottle height H=150 ~350mm
Bottle type
Plastic bottle / PET Bottle
Bottle neck/Cap Style
Plastic Screw Cap φ=20-50mm
Machine material
Food stage SS304 OR SS316
Air source pressure
0.5~0.6Mpa
Filling way/principle
Isobar filling method
Control system
SIMENS PLC+ TOUCH SCREEN
Features
No Bottle No Filling No Bottle No Capping
Main Power
5.5kw
7.5kw
11.0kw
15.0kw
Power Supply
Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement
Overall dimensions (mm)
3800*2800*2600
4600*2800*2600
5450*3300*2600
6500*4500*2600
Weight (kg)
6500
8500
9800
12800
All machines could be customized , we could design and produce machines according to your request.
Details Images
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line supplier
1-NAVAN Machine RO Water Treatment System
* Raw water tank + Raw water pump
* Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
* Reverse Osmosis (one level)
* UV sterilizer
* Finished water tank + Pure water pump
1/Stainless steel high pressure film shell
2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3/Online type pressure auto self-protection device
4/Online type electricity indicator (with stable compensation)
5/System safe protecting and alarm system
6/System frame

According to customer's water source analysis report and the final water standard required ,we will recommend customer the suitable water treatment plants.
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line details
2 - Pre-process system -- Carbonation Equipment
Carbonated beverage mixing system with reasonable & high efficiency structure , high mix precision , CO2 mixing fully, two stage of cooling, two carbonation merits. Mainly is suitable for kinds of carbonated drink's mix processing and carbonation, also may use in the paste drink, the fermentation drink and so on other soft drinks' mix processing.

1 - High-shear emulsifying tank + Plate heat exchanger
2 - Mixing tank
3 - UHT sterilizer + homogenizer machine + Buffer tank
4 - Hot water system + Hot water tank
5 - CIP cleaning system
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line supplier
3 - NAVAN Machine Stretch Bottle Blow Moulding Machine.
This machine is a fully automatic, high intelligent, stable and reliable blowing machine, with simple structure, and low energy consumption. It is very popular and well used in food, beverages, cosmetics, pharmaceutical industry

1 / Blower : Industry-leading blower performance with patented control and self-regulation systems for repeatable and consistently high bottle quality
2 / Production flexibility: Up to 200 different equipment size configurations from one platform
3 / Top quality: Electrical stretching for bottle integrity, full material distribution control and performance
4 / Fast output: Boosted uptime and speed (up to 2,400 bottles/mould/hour)
5 / Efficient consumption: Up to 45 % less electricity and 35 % less compressed air
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line manufacture
4-NAVAN CGFD Carbonated Beverage Filling Machine [ Washing Filling Capping 3 in 1 type ]
This kind of complete set of carbonated soft drink filling machines combining rinsing ,filling ,capping function into one unit adopting advanced International technology, is a fully automatic and high efficiency gas liquid filling and packing machine . It is suitable for filling and packing the carbonated (aerated)beverage ,such as Cola , Soda water , Kvass , Kombucha , Banana Beer . Its has the following features :all parts ,for instance , filling valves ,which directly contact material are made of food stage stainless steel .So It reach the requirements of food sanitation .Capping part are made of heat-proofing rubber ,in order to meet the technique requirements of users to sterilize the whole machine at high temperature . Adopting programmable controller to realize fully automatic control from bottle entering to finished packages .Using the transducer as speed regulator , so the user can regulate the machine easily to meet different power requirements . Adopting balanced pressure filling principle and spring valves to assure the beverage quality .Besides these, it also use advanced magnetic coupler to regulate the cap-screwing torque to
avoid cap and bottle damages.

1 / Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage
2 / Optimum uptime: 30 % reduction in changeover and maintenance downtime
3 / Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4 / Hygiene improvement through volume control and contactless filling
5 / Automatic dummy bottles: Safer, easier cleaning procedures
6 / Automatic bottle changeover improves uptime
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line details
Washing Parts.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line details

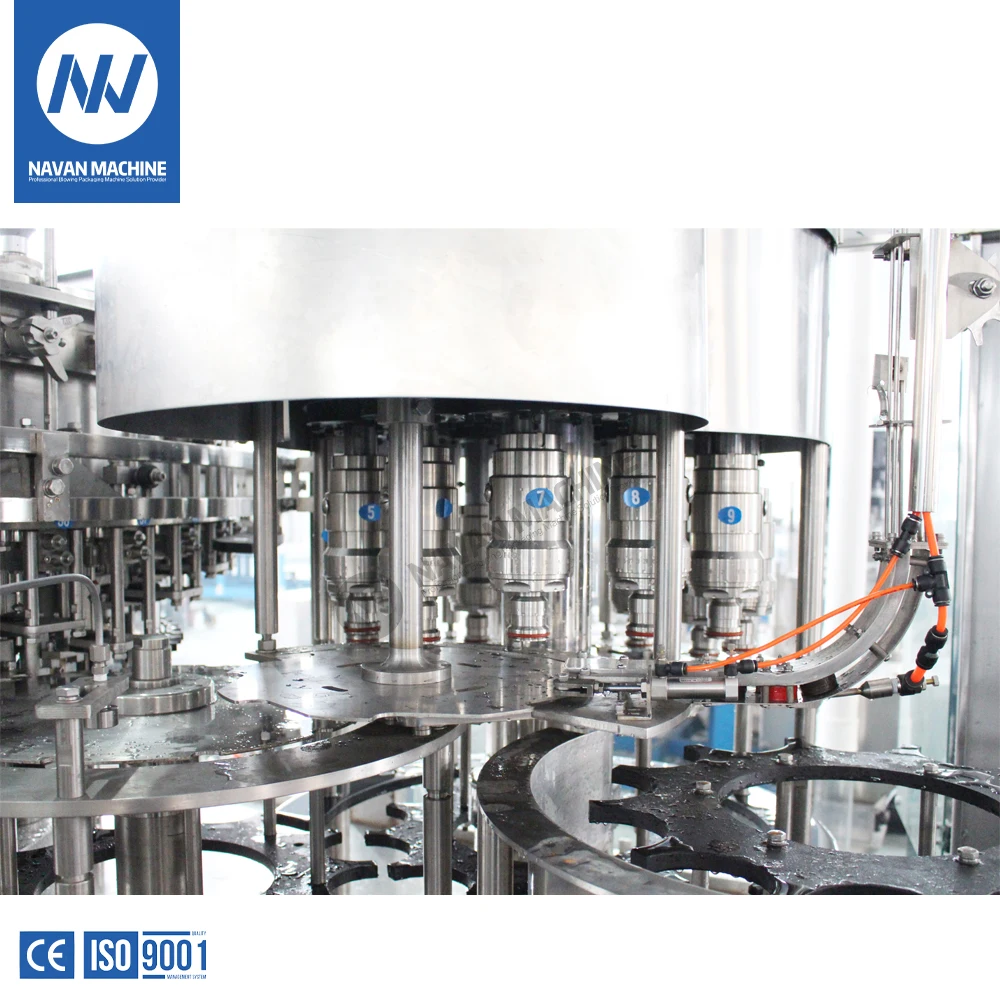

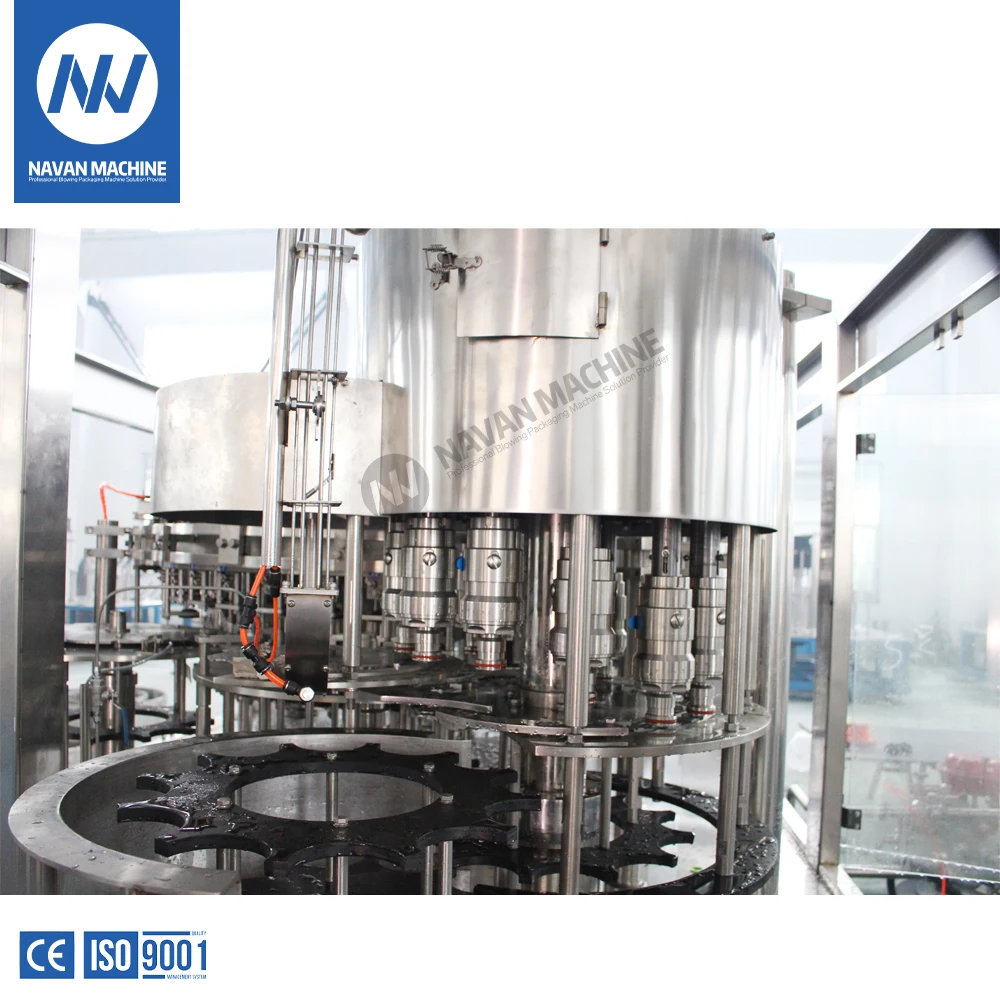

Filling Parts.
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line supplier
Capping Parts.
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line details
5 - NAVAN Bottle Cooling System.
- Mainly for cooling and sterilization
- The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
- Nozzles are manufactured using U.S. technology and spray water evenly
- Conveyor belt adopts Rexnor technology, flat surface with small wear
- Smooth and reliable operation with low energy consumption
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line details
OPP Rotary Labeling Machine
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line details
Shrink Sleeve Labeling Machine
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line details
Adhesive Labeling Machine

6 - NAVAN Machine Bottle Labeling Machine.

Boasting four carousel sizes, up to three labelling stations and 24 configurations, can generate outputs of up to 36,000 containers per hour, when standalone, at an efficiency rate of 98%.
Benefits
1 / Greater performance and ergonomics
2 / Boasted production uptime
3 / Sustainable and quality production
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line manufacture
finished product display
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line details
Automatic Carton Packing Machine with hotling glue
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line factory
L Type Film Wrapping Packing Machine
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line manufacture
Linear Type Film Wrapping Packing Machine

7 - NAVAN Machine Bottle Packing Machine.

Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The final result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure and temperature changes.Whether you choose shrink-printed film, nested packs or wraparound cartons, NAVAN Machine packers gently feed bottles to ensure durable and cost-effective packs.
BENEFITS.
1 / Pack consistency and quality
2 / Gentle and precise in feed configuration
3 / Flexible handling of multiple SKUs
4 / Automatic pack and raw material changeover.
5 / Heat, glue, carton and film optimisation
Would like to know more about NAVAN Machine equipments, feel free to send us an inquiry!
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line manufacture
Finished Product Display
NAVAN Factory Competitive Prices Water Lines Solution for PET 200-2000ml Bottle
Recommend Products
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line factory
Bottle Blowing Machine
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line details
Water Treatment System
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line details
Water Filling Machine
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line details
Bottle Labeling Machine
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line details
Bottle Packing Machine.
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line factory
Beverage Solution
Why Choose Us
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line details
NAVAN Machinery.
Navan Industrial has invested its best resources in technical research, to design and realize innovative inbottle blowing,filling, capping , labeling and packing systemswhich enable to respond and reach different demands and achieve new goals everyday, seizing the market's expectations in the pass years.
At the same time , we also provides turn-key services for customers, from plant layout, equipment manufacturing, production line setup, to operators training. We are always trying our best to meet the demands of our customers continuously and seeking for mutual development.
Today Navan has enhanced its exsitence both in domestic and global market. Thanks to its various and perfect cases, we provide our customers with delicated and customized solutions at quick response. Navan machines are utilized in large and small companies all around the world since 2008.
Massive experience gained through the years of water, juice , soft drink , beer, honeys, sauces etc., with all the abundant experience we are able to deal with any problems related to specific customers requirements, such as daily or special products., and perfect the creation of various machine to satisfy any customer's demands.
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line manufacture
Factory Show.
<1> Standardized workshop of total 3,000 square meters.
<2>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
<3>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
<4>Engineers are experienced. We can produce different products with different capacities and work out reasonable flow chart as per customers’ requirements to save space.
<5>Professional installation team who can speak fluent English can help customers make benefits in the shortest time.
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line manufacture
Certificates.
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS-COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration,etc.
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line factory
Customers.
We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature techniques and first-class quality.
NAVAN 1-liter Bottle Carbonated Beverage Filling Machine Equipment Production Line details
FAQ
Q 1 When can I get installation from you? how much the cost?
When you finish the preparation conditions(water resource,electricity,air supply,production materials) according to our designed layout , please contact with our sales manager, we will dispatch engineer to you.
 Inspect and improve connection jobs together with your team .
 Guide your staff to operate machines , and explain how to operate and maintain machines .
 Collected your your comments on our machines , we will sendfeedback to our technical team to improve our machines continuously.
The customer should be responsible for the room, meals andboard and the two-way air tickets and visa and fee as well the allowance 150 ~200 USD per day for each person. And should be also responsible for the engineer’s personal safety.
Note: Normally when your preparation is done,you can contact with our sales people and cooperate us to get the visa for the engineer and our engineer will be there within 15 days more or less .
Q 2 How long time for installation?
According your machines order,we will send one or two engineers to your plant,it will take about 15 days to 30 days.
Q 3 When can I get my machine after I paid?
Normally production time is around 30-60days , it depends on your ordered machines and quantity . The shipping time is based on your destination port.(Usually we use Shanghai port , Ningbo Port as loading port )
Q 4 How about the spare parts?
We will send one year enough easy broken spare parts together with the machines together when delivery. During the warranty time, we will supply the spare parts with our cost price including and delivery fees.
Q 5 What`s your payment term?
We accept TT , TT/LC/Western union.etc
Q 6 What`s your delivery term?
We provide EXW,FOB,CFR,CIF ... etc delivery terms.
Q 7 How to test machine before delivery?
We will connect all machines in line make them running over 8 hours non-stop , then take and send testing videos. Or we could live video inspection .
Q 8 How about the Packaging details?
Standard export packing to ensure that the product packaging integrity and safety. ( Heavy products adopt export plywood case packing with waterproof film . Small products use thick carton packing waterproof film)
Q 9 Do you have reference project?
We have reference project in most countries. After getting the permission of the customer who has brought the machines from us ,we will send you their contact information and arrange your visiting to their factory. And you are always welcome to come to visit our factories，and inspect the machine running in our factory .We will be glad offer necessary supports on hotel booking , transportation , VISA application. OR you can get video of our reference running machine on our website too .
Q 10 Do you provide turnkey project?
YES Turnkey project is available .We can help you to start a new beverage / water factory from A to Z.
Q 11 Do you have agent and after-service stations?
So far we have agent in Kampala ,Uganda and Dubai ,UAE .You are mostly welcomed to join us!
Q 12 Do you have any certificate?
We have been certificated by the famous certification authority such as CE , ISO, SGS ...etc
Q 13 Do you provide customized service?
We are able to develop the machines according your requirements(material ,power,filling type,the kinds of the bottles,and so on),at the same time we will offer you professional advice based on our 30+ years beverage machine industrial experience.
Q 14 What`s your guarantee or the warranty of the quality if we buy your machines?
We offer you high quality machines with 1 year guarantee and supply life-long technical support for free .

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000
TopTop
