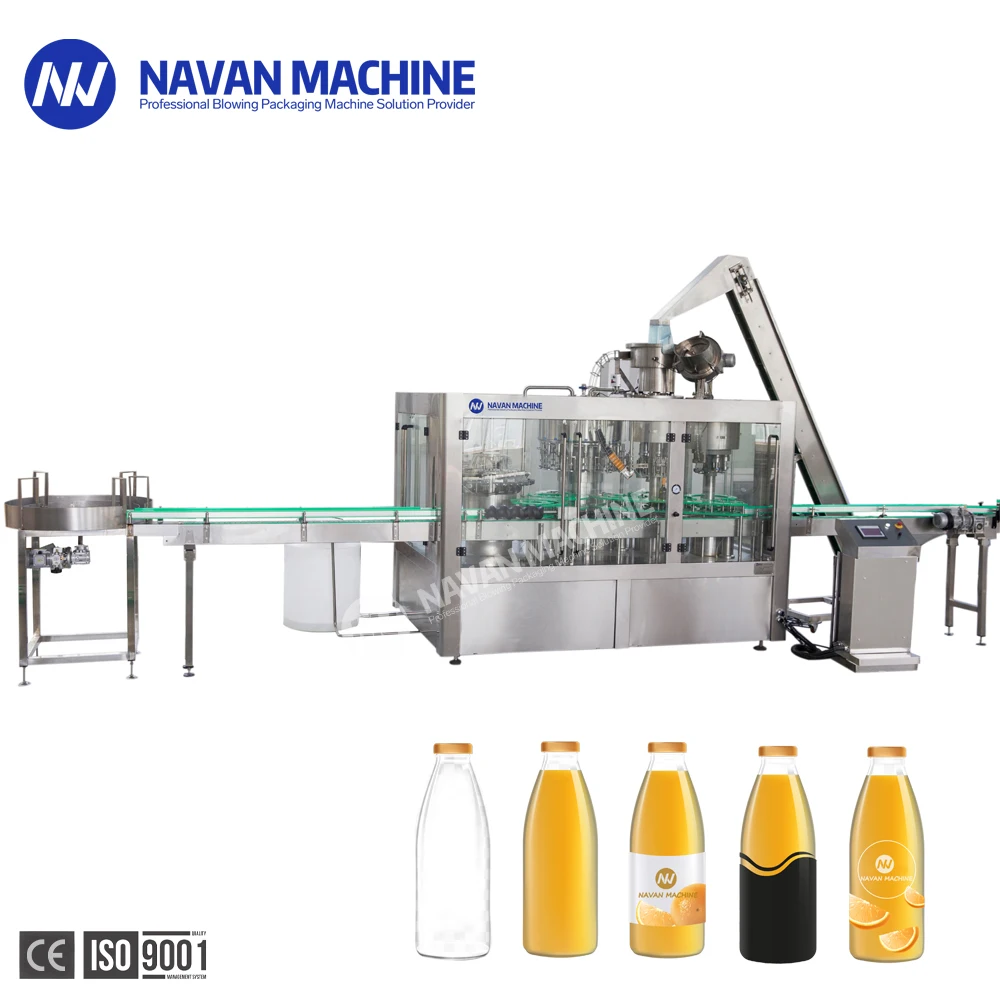

NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line

NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line

The NAVAN Citrus Juice Filling Machine offers a complete automated solution for orange juice production and packaging. This state-of-the-art production line seamlessly handles the entire process from juice extraction to final bottling with minimal human intervention. Featuring advanced PLC control systems and food-grade stainless steel construction, the machine ensures consistent quality and maximum hygiene throughout operation. The fully automatic system includes integrated components for juice extraction, filtration, pasteurization, and precision filling, capable of handling various bottle sizes and formats. With adjustable filling speeds and accurate volume control, this professional-grade equipment is ideal for medium to large-scale beverage manufacturers seeking to optimize their production efficiency. The user-friendly interface allows for easy operation and monitoring, while the robust design ensures reliable performance and long service life, making it a cost-effective investment for your juice processing facility.

Get a Quote
  • Description

+8615601563990
[email protected]
Inquiry
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line supplier
NAVAN Machine.
We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China. Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.Navan Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training.
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line supplier
We can produce and fill various juice beverage bottles, such as orange juice, apple juice, mango juice, grape juice, etc. The following are the main types of bottles we have encountered in the past, ranging from the most common plastic bottles to glass bottles and cans. We have a successful complete solution that will provide you with the highest quality service.
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line manufacture
Products Description

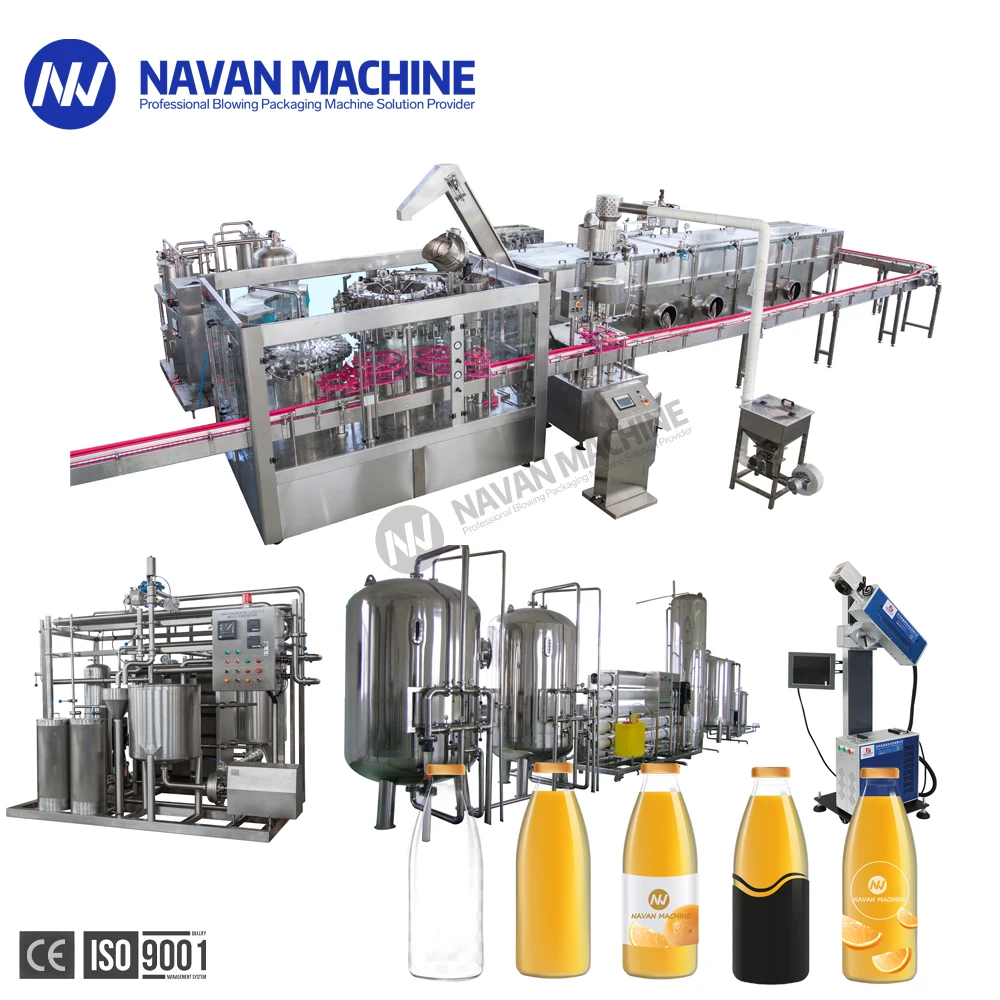

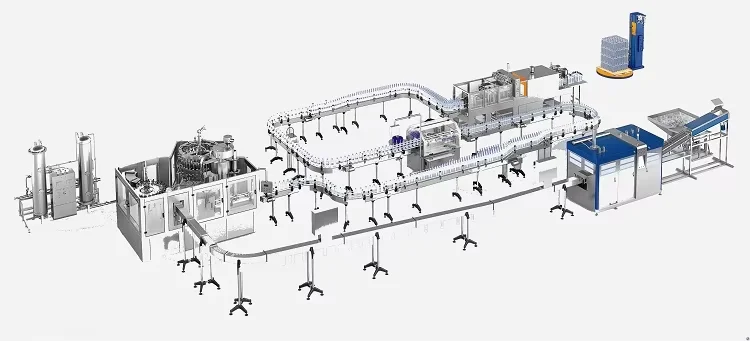

Navan Small Bottled Juice Beverage Production Line

We are committed to providing complete solutions for juice beverage filling factories, including water treatment systems /Juice beverage processing, mixing, pasteurization system and carbonation system/cleaning, filling and capping machine/liquid nitrogen dosing system/automatic bottle inspection machine/spray bottle warmer and pasteurization tunnel/inverted bottle cap sterilization chain/blow drying machine/laser inkjet printer/automatic labeling machine/automatic packaging machine/automatic conveying system/automatic palletizing system, as well as auxiliary equipment such as transformers, generators, steam boilers, CIP cleaning system forklifts, etc.... etc.
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line supplier
One partner for all your needs.
NAVAN's complete CSD production line solution considers every step of the PET juice soft drink process, from minimizing resource waste to determining the ideal appearance and weight of the bottles. Everything is centered around one supplier, and you will gain extensive professional knowledge, production line equipment, and continuous service. This ensures high quality and efficiency from packaging to equipment, as well as rapid capacity improvement.
Different juice filling machine capacities
8-8-4 Bottle juice Filling Machine Capacity:800-2000 bottles per hour.
12-12-6 Bottle juice Filling Machine Capacity:1800-2000 bottles per hour.
18-18-6 Bottle juice Filling Machine Capacity:3000-4000 bottles per hour.
24-24-8 Bottle juice Filling Machine Capacity:6000-7000 bottles per hour.
32-32-10 Bottle juice Filling Machine Capacity:9000-10000 bottles per hour.
40-40-12 Bottle juice Filling Machine Capacity:15000-16000 bottles per hour .
50-50-15 Bottle juice Filling Machine Capacity:19000-20000 bottles per hour
60-60-15 Bottle juice Filling Machine Capacity:24000-25000 bottles per hour

NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line supplier
Hot Fill Lines.
Hot filling technology can expand production and packaging opportunities for juices, nectars, soft drinks, isotonics and teas. No matter your beverage type, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities.
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line factory
Would like to know more about NAVAN Machine equipments, feel free to send us an inquiry!
Final Products
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line manufacture
Equipment Type
Automatic
Bottle Type
PET round or square bottle
Volume 200 - 2500ml
Bottle diameter 50-115mm
Bottle height 160-350mm
Output
up to 72,000 bph
Your product
Juice/Tea/non-gas wine drink and so on.
Product Parameters
Model
CGFR8-8-3
CGFR16-12-6
CGFR18-18-6
CGFR24-24-8
CGFR32-32-10
CGFR40-40-10
Rinsing Head No
8
16
18
24
32
40
Filling Head No
8
12
18
24
32
40
Capping Head No
3
6
6
8
10
12/10
RatedCapacity
(500ml)
2000BPH
4000BPH
7000-8000BPH
10000-12000BPH
12000-15000BPH
15000-18000BPH
Overall Size (mm)
1900*1420*2000
2200*1600*2300
2450*1900*2300
2750*2180*2400
4000*2300*2300
4550*2650*2300
Weight
1.5T
2.2T
3.0T
4.0T
8.0T
12.0T
Power(KW)
3.0kw
3.5kw
4.0kw
4.8kw
7.6kw
8.3Kw
Rated Voltage
380V
380V
380V
380V
380V
380V
Details Images
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line factory

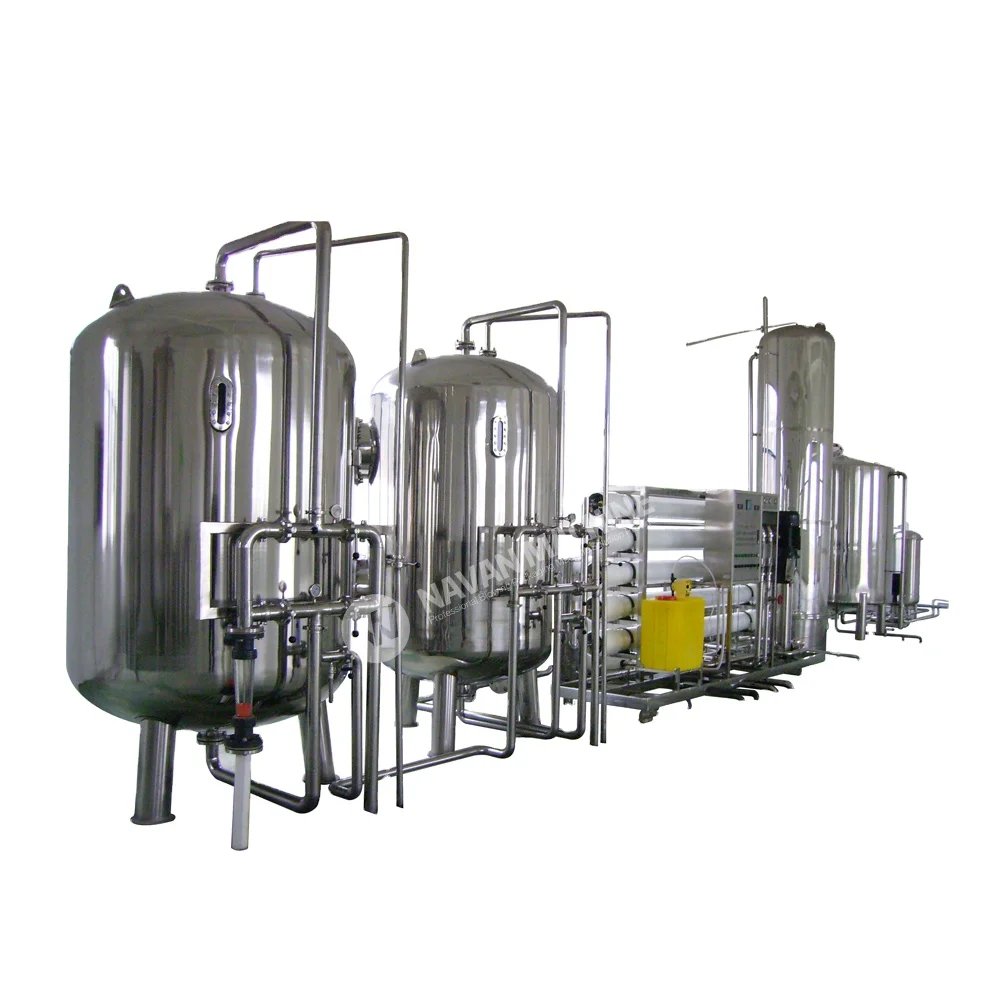

1-NAVAN Machine RO Water Treatment System
* Raw water tank + Raw water pump
* Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
* Reverse Osmosis (one level)
* UV sterilizer
* Finished water tank + Pure water pump
1/Stainless steel high pressure film shell
2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3/Online type pressure auto self-protection device
4/Online type electricity indicator (with stable compensation)
5/System safe protecting and alarm system
6/System frame

According to customer's water source analysis report and the final water standard required ,we will recommend customer the suitable water treatment plants.
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line manufacture

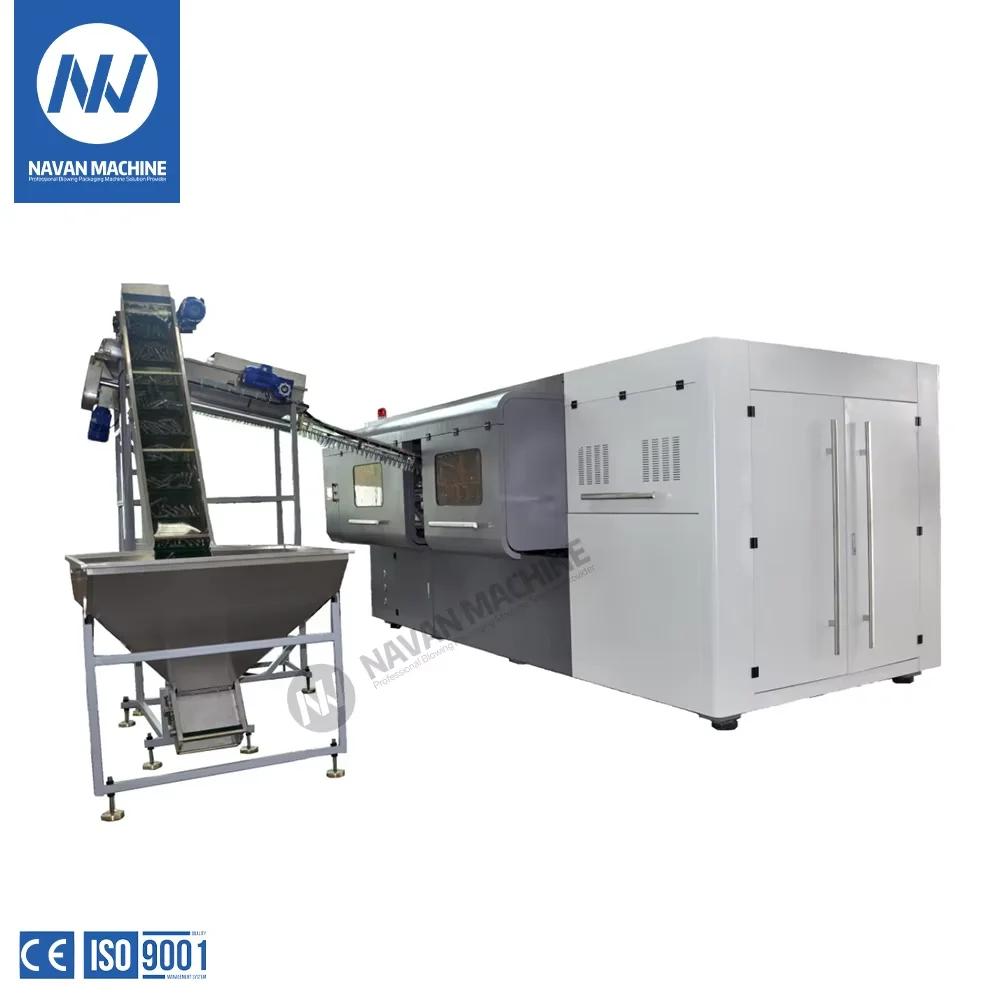

2 - NAVAN Machine Stretch Bottle Blow Moulding Machine.
This machine is a fully automatic, high intelligent, stable and reliable blowing machine, with simple structure, and low energy consumption. It is very popular and well used in food, beverages, cosmetics, pharmaceutical industry

1 / Blower : Industry-leading blower performance with patented control and self-regulation systems for repeatable and consistently high bottle quality
2 / Production flexibility: Up to 200 different equipment size configurations from one platform
3 / Top quality: Electrical stretching for bottle integrity, full material distribution control and performance
4 / Fast output: Boosted uptime and speed (up to 2,400 bottles/mould/hour)
5 / Efficient consumption: Up to 45 % less electricity and 35 % less compressed air
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line supplier

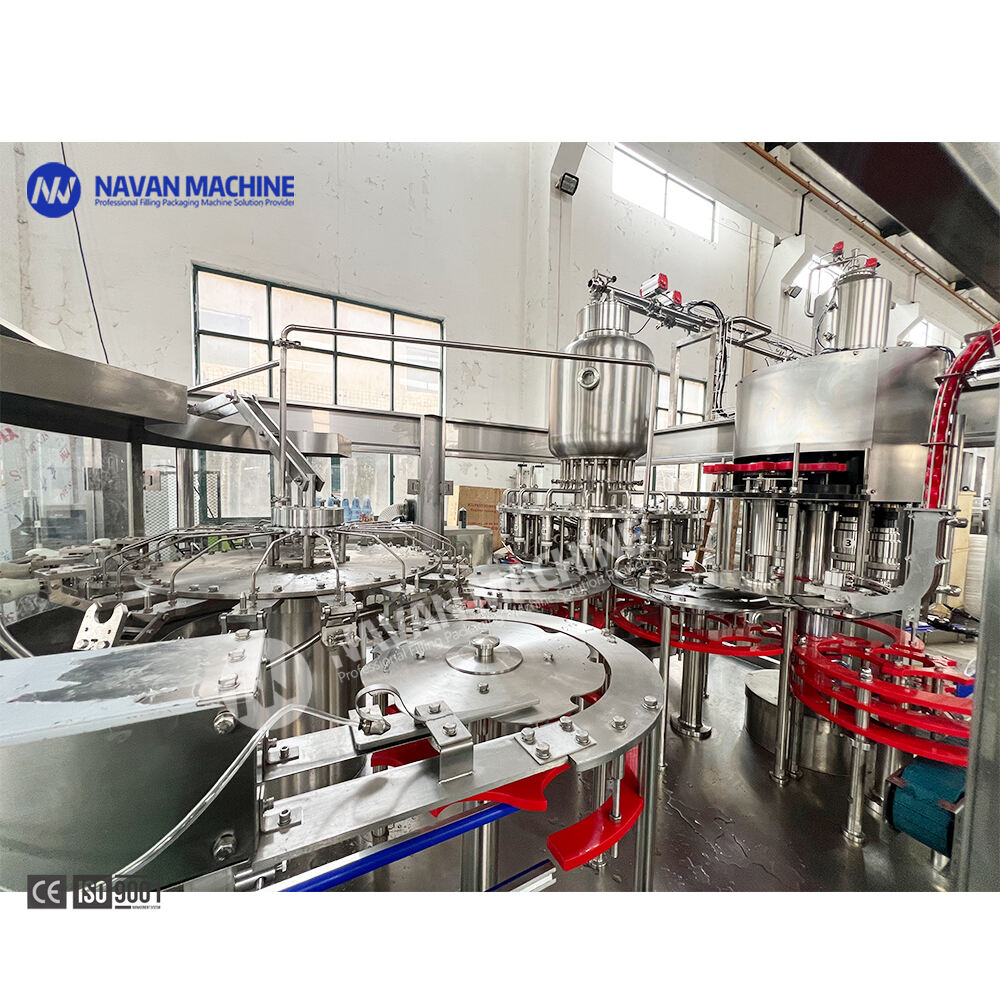

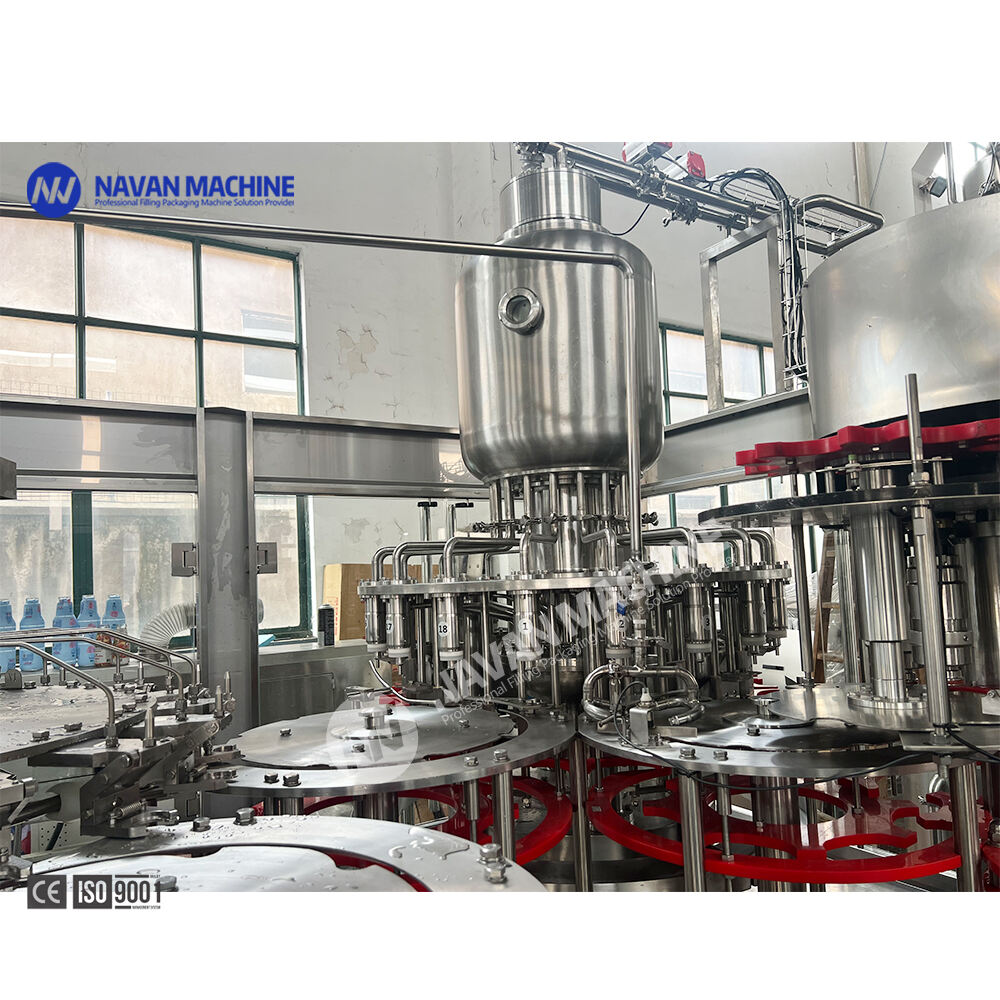

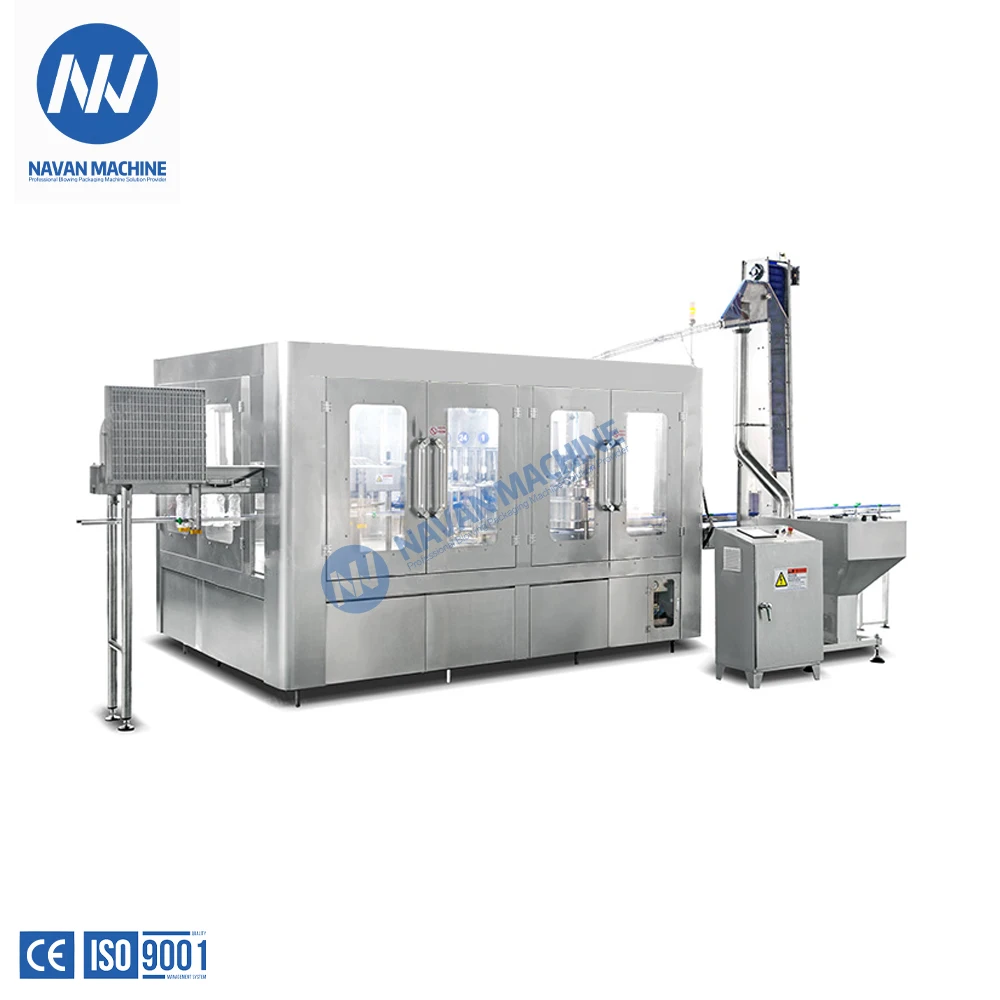

3-NAVAN fruit juice beverage filling machine [three in one type for cleaning, filling, and capping]
This complete set of juice and soft drink filling machine, which integrates flushing, filling, and sealing functions, adopts international advanced technology and is a fully automatic and efficient liquid filling and packaging machine. Suitable for filling and packaging juice drinks such as orange juice, apple juice, mango juice, grape juice, etc. It has the following characteristics: all components that come into direct contact with materials, such as filling valves, are made of food grade stainless steel. Therefore, it meets the requirements of food hygiene. The sealing part is made of heat-resistant rubber to meet the technical requirements of users for high-temperature sterilization of the whole machine. Adopting a programmable controller to achieve fully automatic control from bottle feeding to finished product packaging. By using a frequency converter as a speed regulator, users can easily adjust the machine to meet different power requirements. Adopting balanced pressure filling principle and spring valves to assure the beverage quality .Besides these, it also use advanced magnetic coupler to regulate the cap-screwing torque to avoid cap and bottle damages.

1 / Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage
2 / Optimum uptime: 30 % reduction in changeover and maintenance downtime
3 / Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4 / Hygiene improvement through volume control and contactless filling
5 / Automatic dummy bottles: Safer, easier cleaning procedures
6 / Automatic bottle changeover improves uptime
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line factory

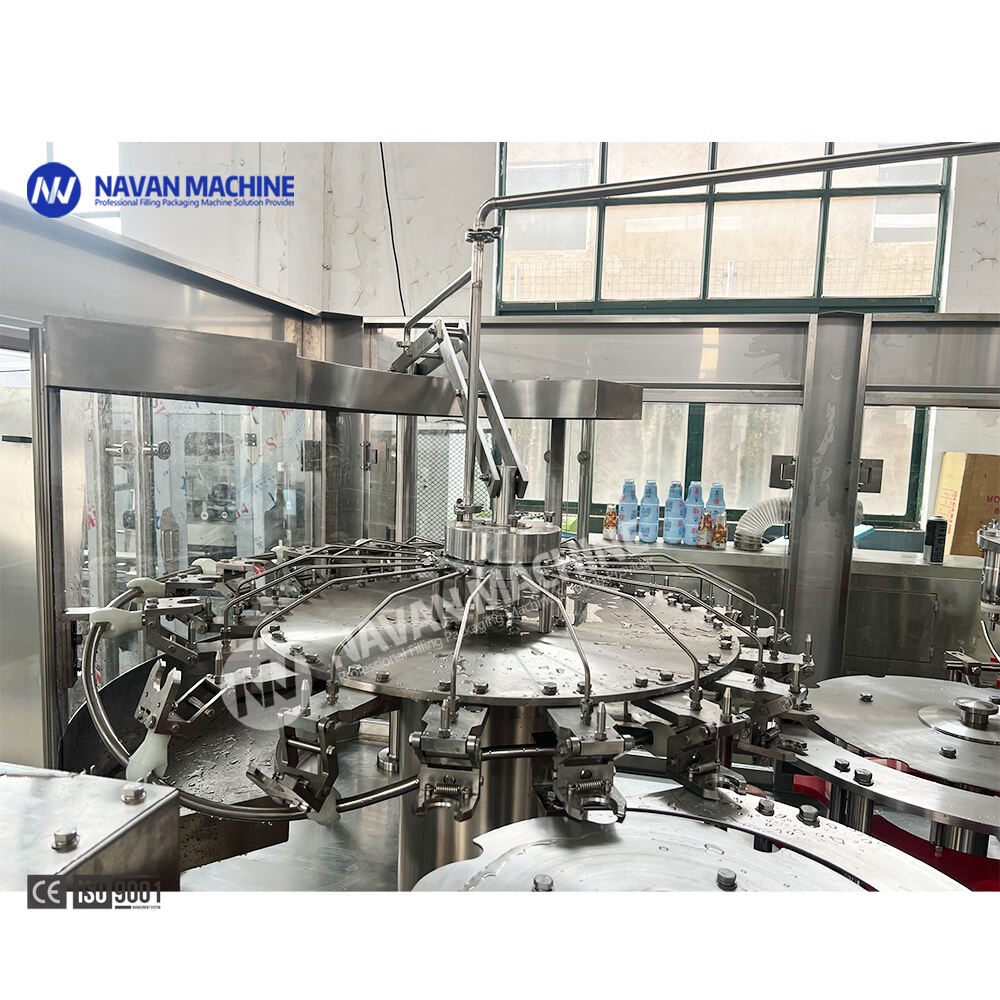

Washing Parts.
-Rotary rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line supplier

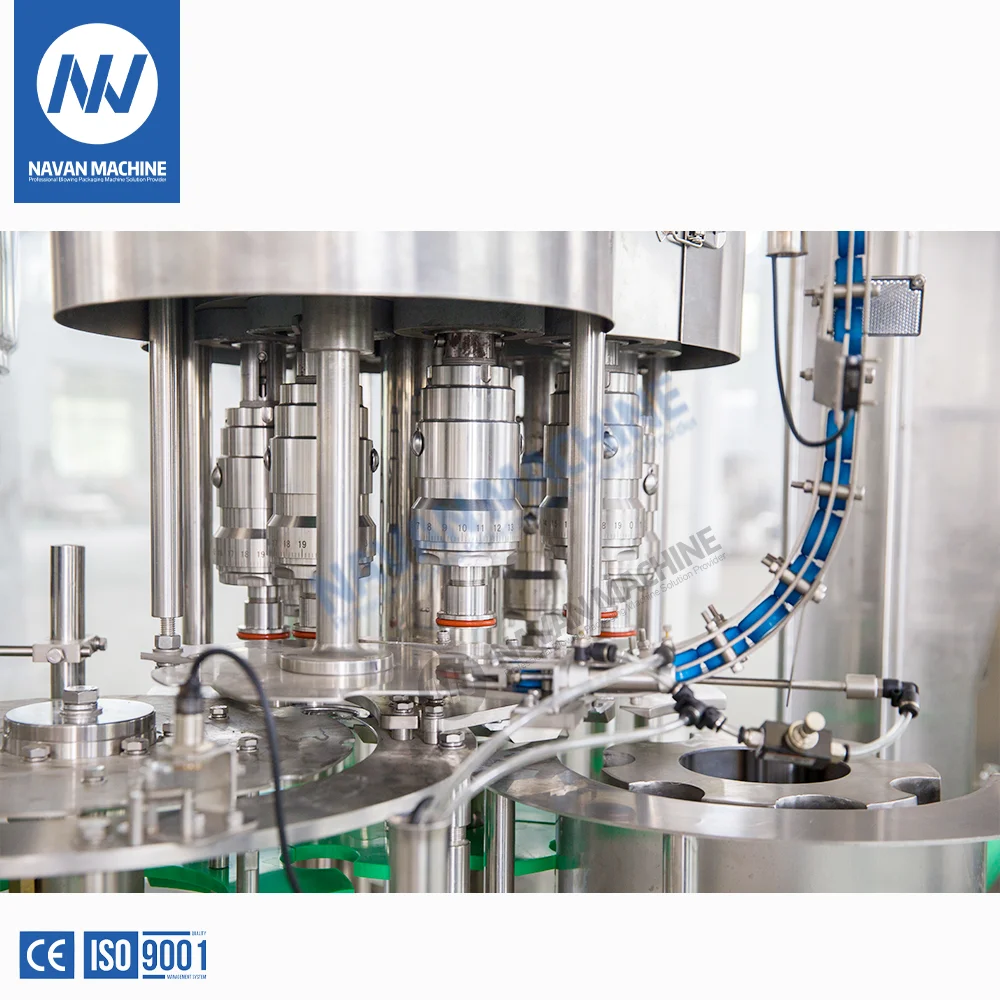

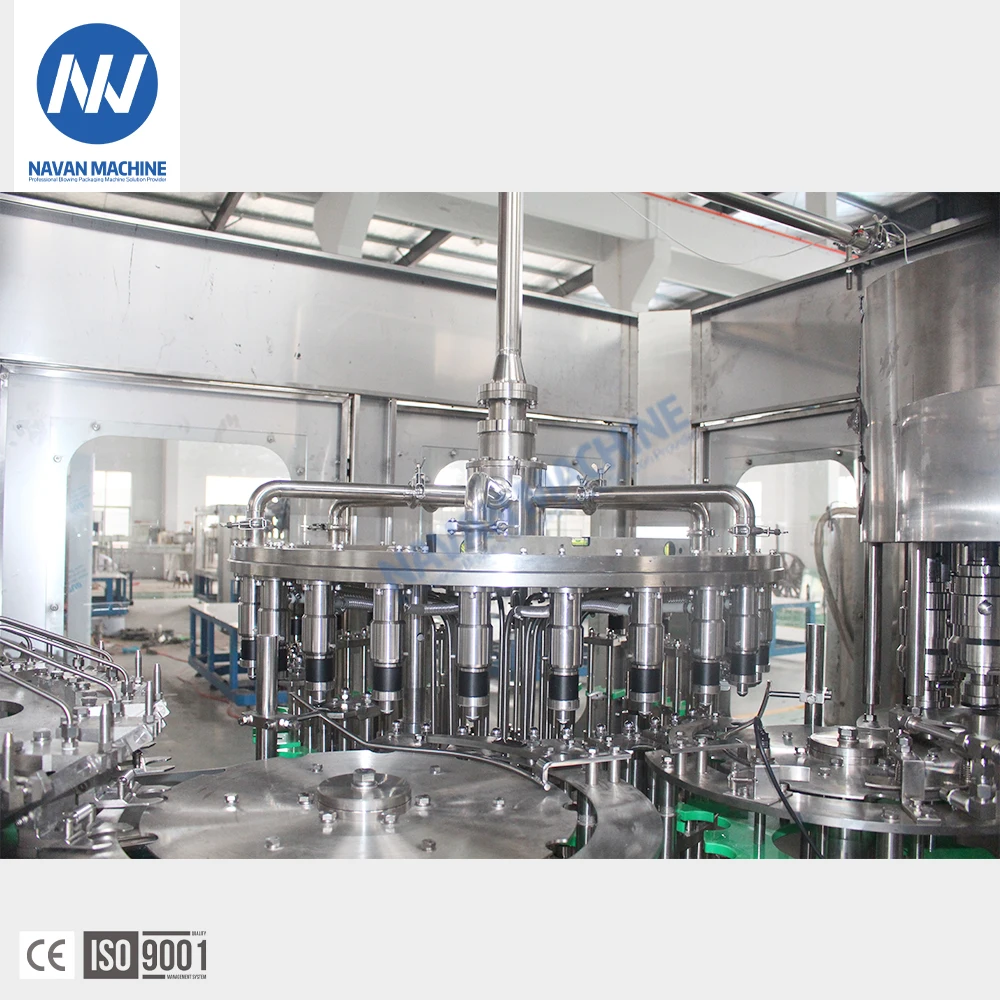

Filling Parts.
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line factory
Capping Parts.
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line manufacture
4 - NAVAN Bottle Inverter Chain.
- Use juice own high temperature to kill the bacterial inside cap.
- Use juice own high temperature to improve sealing of bottle to extend warranty time.
- Use SUS 304/316 stainless steel chain and high polymer material conveyor to keep high quality and increase service life.
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line details

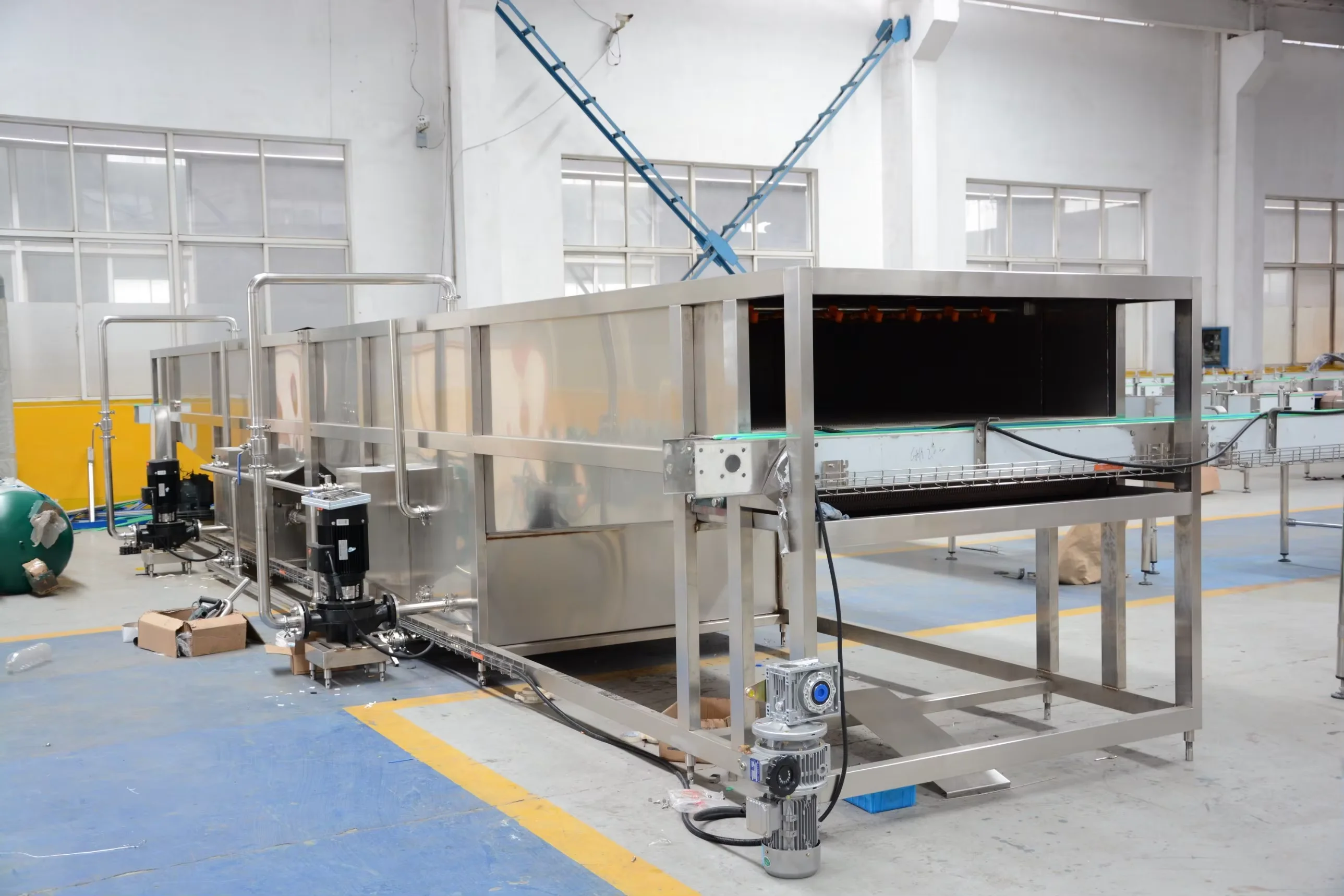

5 - NAVAN Bottle Cooling System.
- Mainly for cooling and sterilization
- The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
- Nozzles are manufactured using U.S. technology and spray water evenly
- Conveyor belt adopts Rexnor technology, flat surface with small wear
- Smooth and reliable operation with low energy consumption
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line supplier

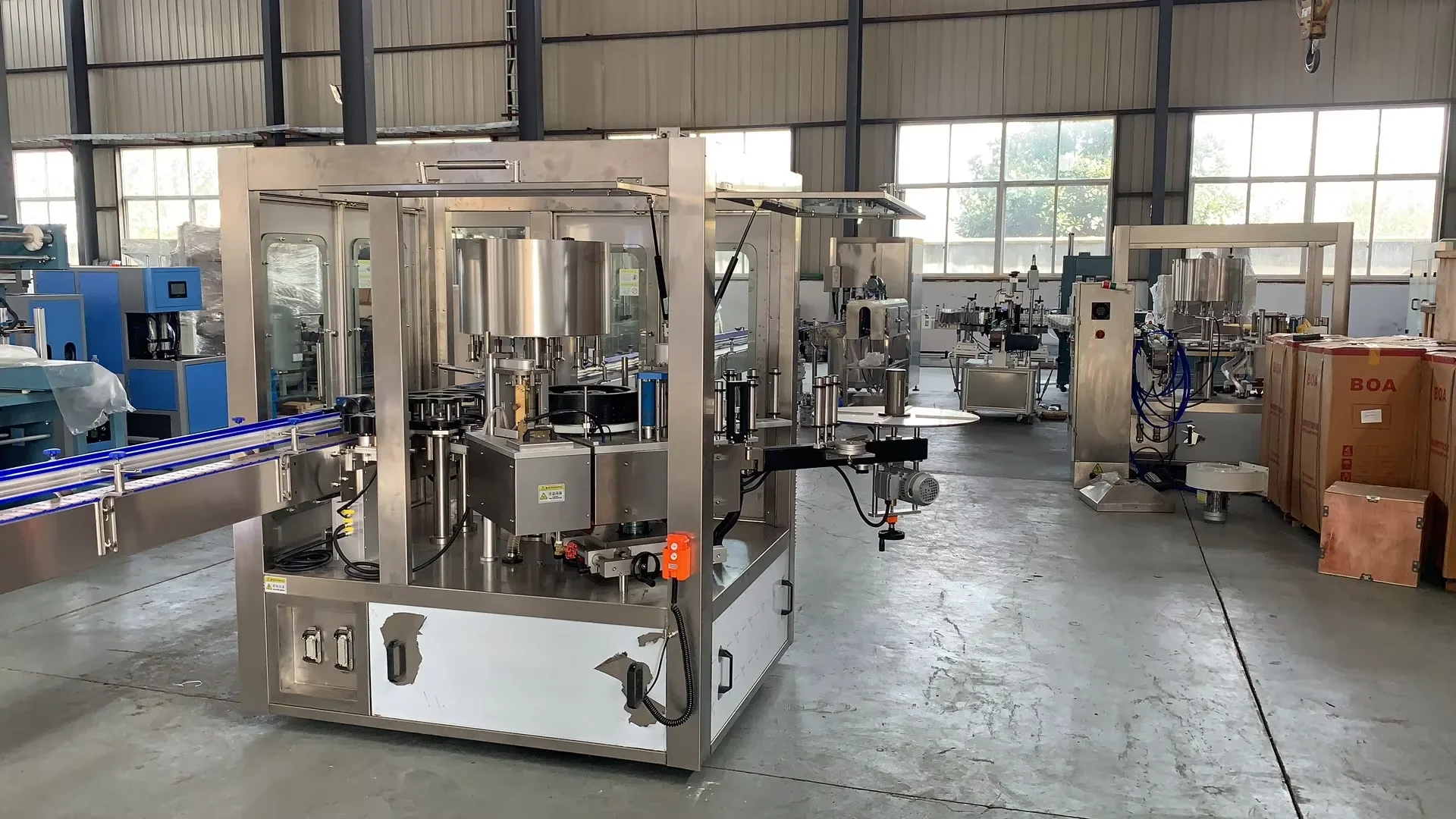

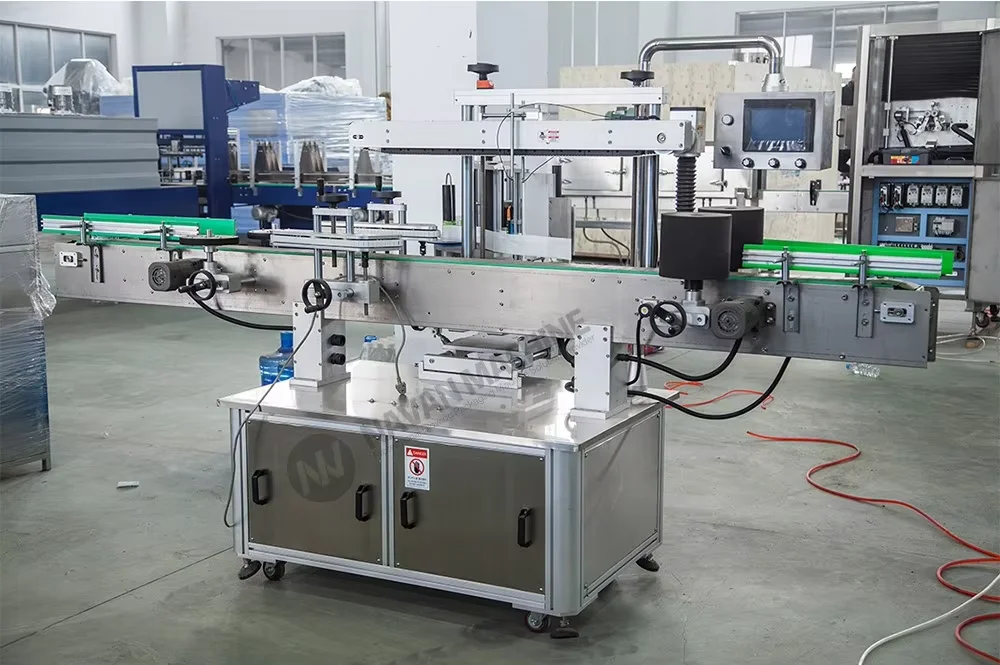

OPP Rotary Labeling Machine
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line manufacture

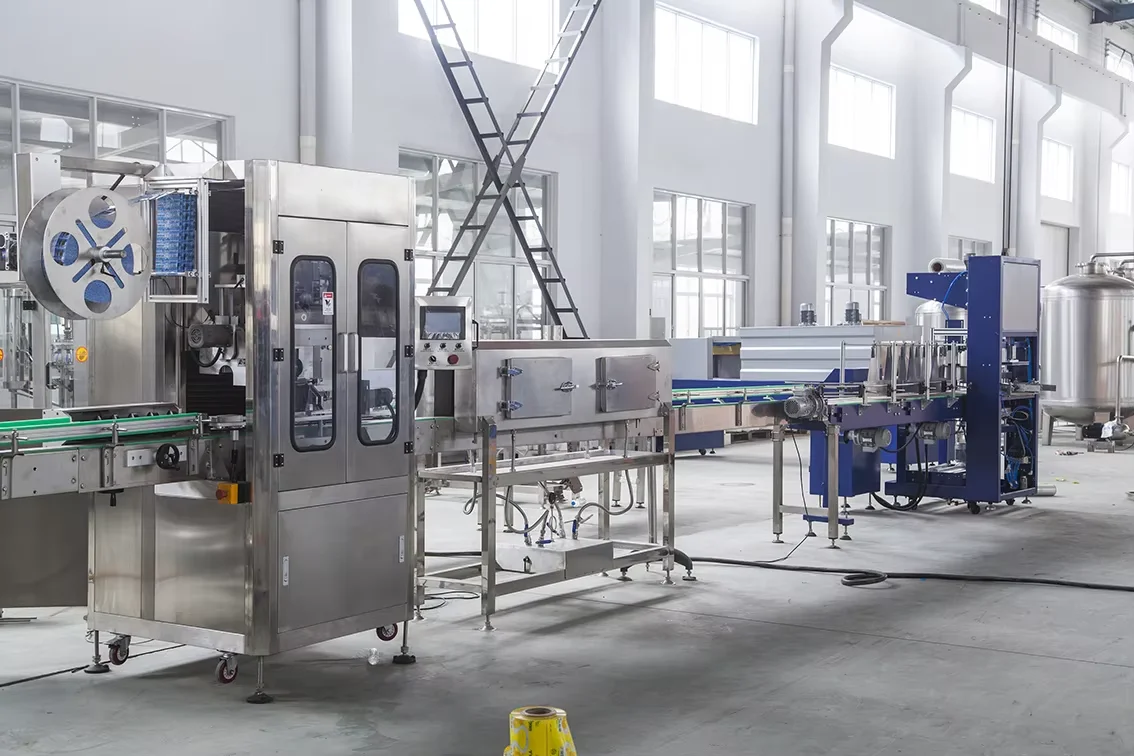

Shrink Sleeve Labeling Machine
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line details
Adhesive Labeling Machine

6 - NAVAN Machine Bottle Labeling Machine.

Boasting four carousel sizes, up to three labelling stations and 24 configurations, can generate outputs of up to 36,000 containers per hour, when standalone, at an efficiency rate of 98%.
Benefits
1 / Greater performance and ergonomics
2 / Boasted production uptime
3 / Sustainable and quality production
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line manufacture
finished product display
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line details
Automatic Carton Packing Machine with hotling glue
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line manufacture

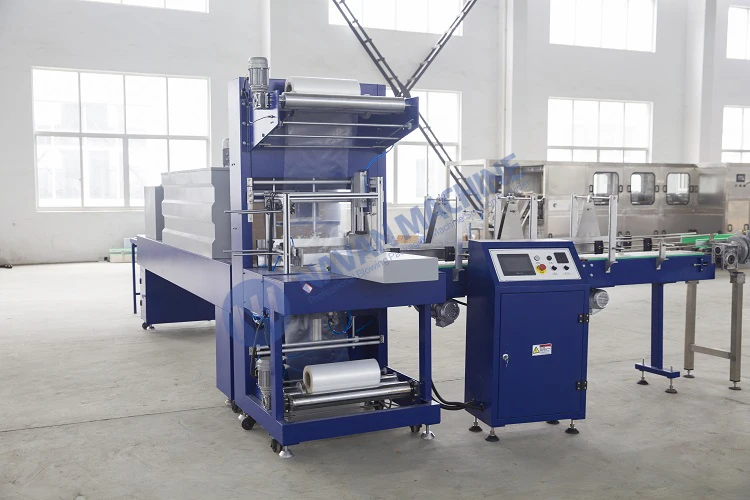

L Type Film Wrapping Packing Machine
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line details
Linear Type Film Wrapping Packing Machine

7 - NAVAN Machine Bottle Packing Machine.

Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The final result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure and temperature changes.Whether you choose shrink-printed film, nested packs or wraparound cartons, NAVAN Machine packers gently feed bottles to ensure durable and cost-effective packs.
BENEFITS.
1 / Pack consistency and quality
2 / Gentle and precise in feed configuration
3 / Flexible handling of multiple SKUs
4 / Automatic pack and raw material changeover.
5 / Heat, glue, carton and film optimisation
Would like to know more about NAVAN Machine equipments, feel free to send us an inquiry!
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line manufacture
Finished Product Display
NAVAN Factory Competitive Prices Water Lines Solution for PET 200-2000ml Bottle
Recommend Products
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line details
Bottle Blowing Machine
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line details
Water Treatment System
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line details
Water Filling Machine
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line details
Bottle Labeling Machine
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line supplier
Bottle Packing Machine.
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line details
Beverage Solution
Why Choose Us
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line manufacture
NAVAN Machinery.
Navan Industrial has invested its best resources in technical research, to design and realize innovative inbottle blowing,filling, capping , labeling and packing systemswhich enable to respond and reach different demands and achieve new goals everyday, seizing the market's expectations in the pass years.
At the same time , we also provides turn-key services for customers, from plant layout, equipment manufacturing, production line setup, to operators training. We are always trying our best to meet the demands of our customers continuously and seeking for mutual development.
Today Navan has enhanced its exsitence both in domestic and global market. Thanks to its various and perfect cases, we provide our customers with delicated and customized solutions at quick response. Navan machines are utilized in large and small companies all around the world since 2008.
Massive experience gained through the years of water, juice , soft drink , beer, honeys, sauces etc., with all the abundant experience we are able to deal with any problems related to specific customers requirements, such as daily or special products., and perfect the creation of various machine to satisfy any customer's demands.
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line supplier

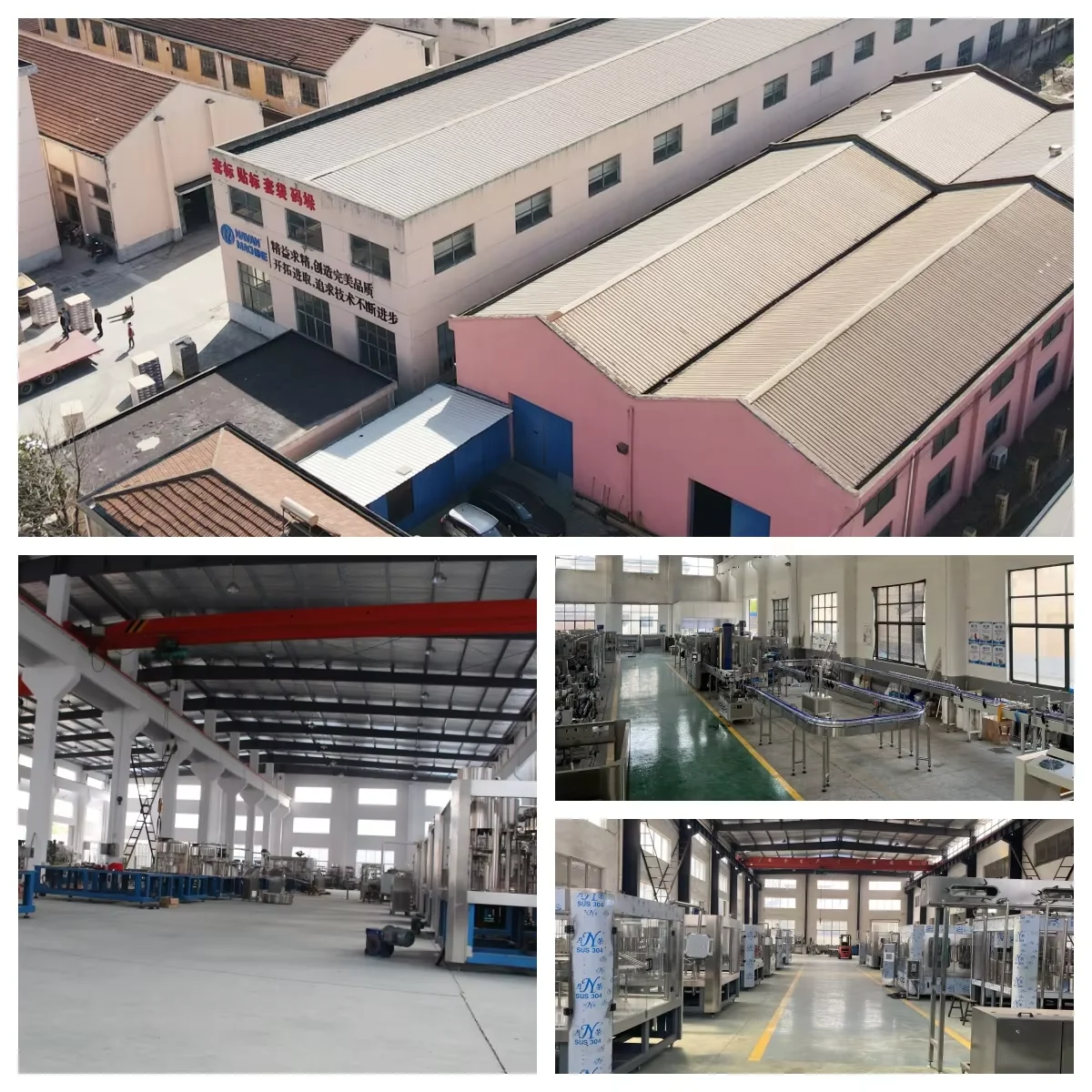

Factory Show.
<1> Standardized workshop of total 3,000 square meters.
<2>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
<3>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
<4>Engineers are experienced. We can produce different products with different capacities and work out reasonable flow chart as per customers’ requirements to save space.
<5>Professional installation team who can speak fluent English can help customers make benefits in the shortest time.
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line factory
Certificates.
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS-COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration,etc.
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line supplier
Customers.
We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature techniques and first-class quality.
NAVAN Citrus Juice Orange Juice Filling Machine Fully Automatic Production Line manufacture
FAQ
Q 1 When can I get installation from you? how much the cost?
When you finish the preparation conditions(water resource,electricity,air supply,production materials) according to our designed layout , please contact with our sales manager, we will dispatch engineer to you.
 Inspect and improve connection jobs together with your team .
 Guide your staff to operate machines , and explain how to operate and maintain machines .
 Collected your your comments on our machines , we will sendfeedback to our technical team to improve our machines continuously.
The customer should be responsible for the room, meals andboard and the two-way air tickets and visa and fee as well the allowance 150 ~200 USD per day for each person. And should be also responsible for the engineer’s personal safety.
Note: Normally when your preparation is done,you can contact with our sales people and cooperate us to get the visa for the engineer and our engineer will be there within 15 days more or less .
Q 2 How long time for installation?
According your machines order,we will send one or two engineers to your plant,it will take about 15 days to 30 days.
Q 3 When can I get my machine after I paid?
Normally production time is around 30-60days , it depends on your ordered machines and quantity . The shipping time is based on your destination port.(Usually we use Shanghai port , Ningbo Port as loading port )
Q 4 How about the spare parts?
We will send one year enough easy broken spare parts together with the machines together when delivery. During the warranty time, we will supply the spare parts with our cost price including and delivery fees.
Q 5 What`s your payment term?
We accept TT , TT/LC/Western union.etc
Q 6 What`s your delivery term?
We provide EXW,FOB,CFR,CIF ... etc delivery terms.
Q 7 How to test machine before delivery?
We will connect all machines in line make them running over 8 hours non-stop , then take and send testing videos. Or we could live video inspection .
Q 8 How about the Packaging details?
Standard export packing to ensure that the product packaging integrity and safety. ( Heavy products adopt export plywood case packing with waterproof film . Small products use thick carton packing waterproof film)
Q 9 Do you have reference project?
We have reference project in most countries. After getting the permission of the customer who has brought the machines from us ,we will send you their contact information and arrange your visiting to their factory. And you are always welcome to come to visit our factories，and inspect the machine running in our factory .We will be glad offer necessary supports on hotel booking , transportation , VISA application. OR you can get video of our reference running machine on our website too .
Q 10 Do you provide turnkey project?
YES Turnkey project is available .We can help you to start a new beverage / water factory from A to Z.
Q 11 Do you have agent and after-service stations?
So far we have agent in Kampala ,Uganda and Dubai ,UAE .You are mostly welcomed to join us!
Q 12 Do you have any certificate?
We have been certificated by the famous certification authority such as CE , ISO, SGS ...etc
Q 13 Do you provide customized service?
We are able to develop the machines according your requirements(material ,power,filling type,the kinds of the bottles,and so on),at the same time we will offer you professional advice based on our 30+ years beverage machine industrial experience.
Q 14 What`s your guarantee or the warranty of the quality if we buy your machines?
We offer you high quality machines with 1 year guarantee and supply life-long technical support for free .

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000
TopTop
