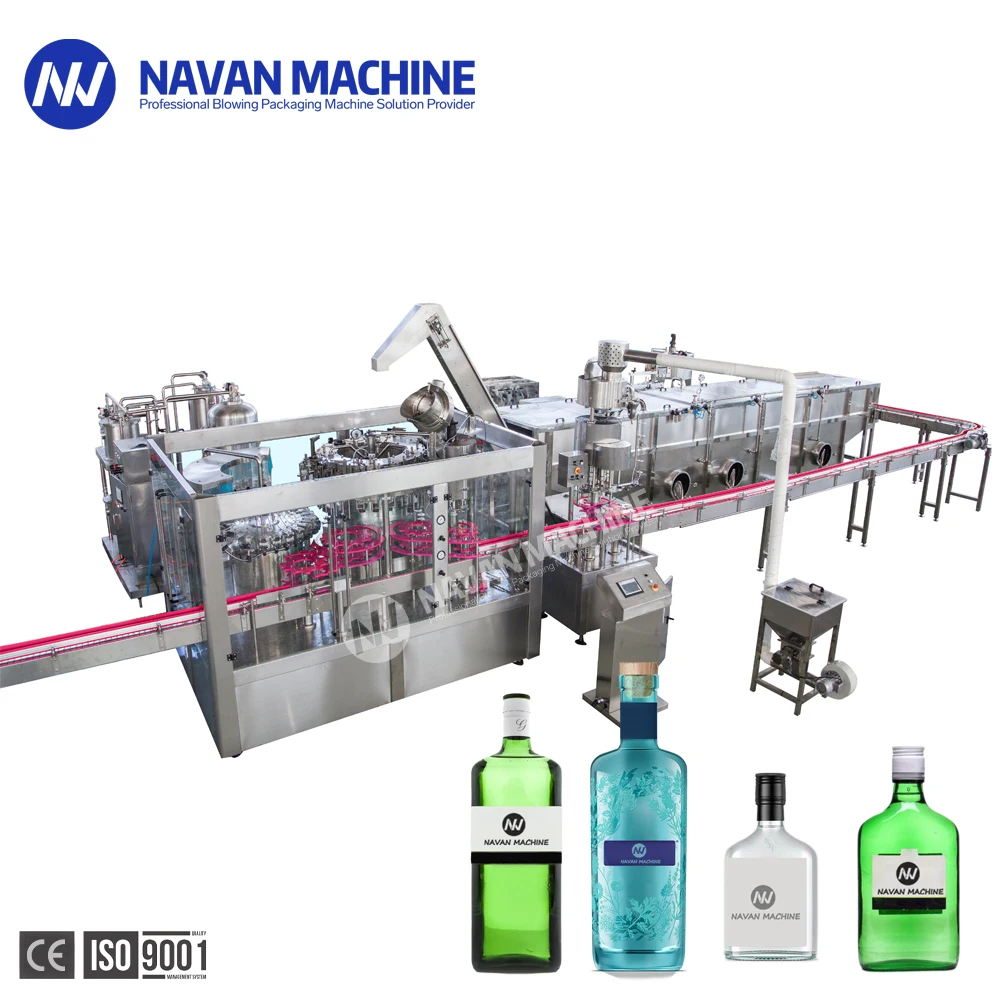

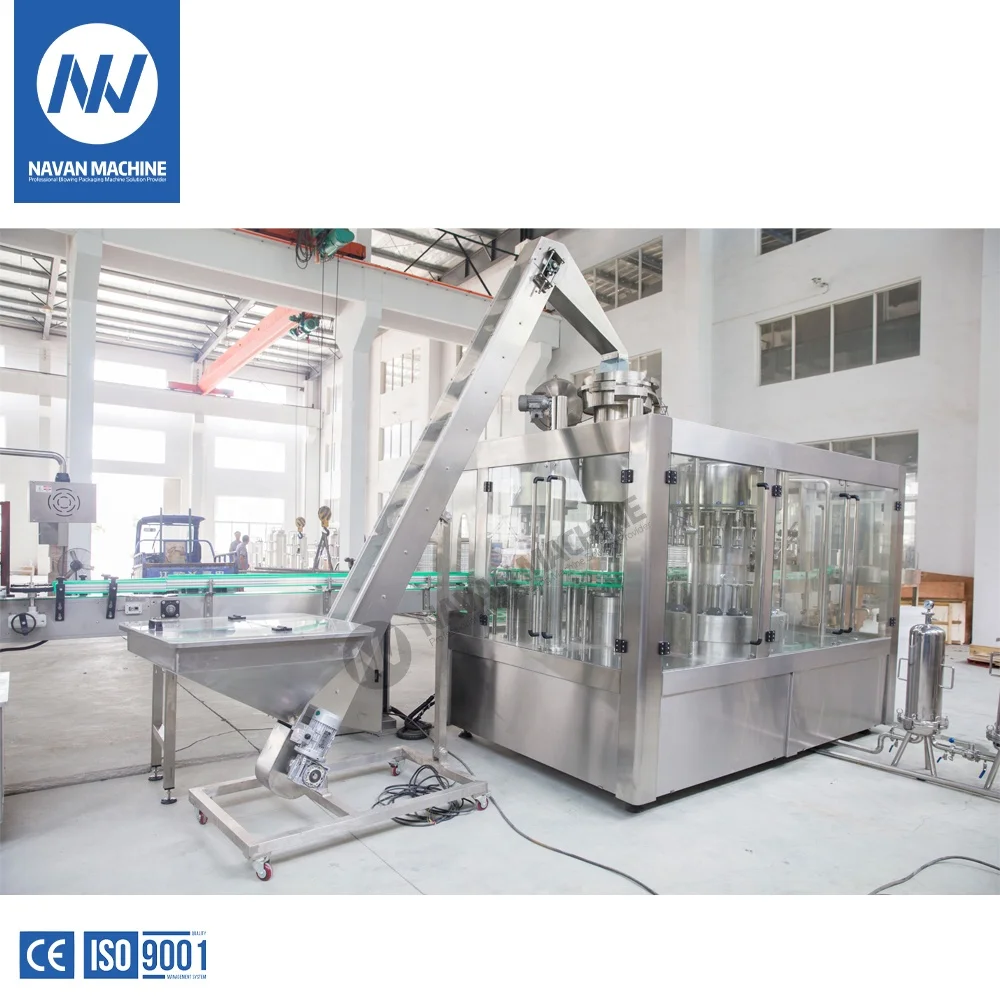

Turnkey Project Automatic Washing Filling Capping Machine for Alcohol Drinking Automatic Glass Bottled Gin Production

This fully automated production line offers a complete solution for gin and spirits bottling operations. The integrated system combines washing, filling, and capping processes in one efficient unit, ensuring maximum productivity and consistent quality. The advanced washing system thoroughly cleans glass bottles using high-pressure jets and sanitizing agents, while the precision filling mechanism guarantees accurate volume control and minimal product waste. The automatic capping station ensures airtight sealing for optimal product preservation. Designed for industrial-scale gin production, this turnkey system features stainless steel construction, user-friendly PLC controls, and adjustable settings to accommodate various bottle sizes. With production speeds capable of handling thousands of bottles per hour, this equipment is ideal for distilleries seeking to streamline their operations while maintaining the highest standards of hygiene and product quality. CE-certified and built to international safety standards, this system promises reliable performance and excellent return on investment.

Products Description
Turnkey Project Automatic Washing Filling Capping Machine for Alcohol Drinking Automatic Glass Bottled Gin Production supplier
Turnkey Project Automatic Washing Filling Capping Machine For Alcohol Drinking Automatic Glass Bottled Gin Production
This NXGF Wash-filling-capping 3-in-1 unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water,alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
Product paramenters
Turnkey Project Automatic Washing Filling Capping Machine for Alcohol Drinking Automatic Glass Bottled Gin Production manufacture
Turnkey Project Automatic Washing Filling Capping Machine for Alcohol Drinking Automatic Glass Bottled Gin Production factory
Model
NXGF14-12-6
NXGF18-18-6
NXGF24-24-8
NXGF32-32-8
NXGF40-40-12
NXGF50-50-15
Application
Beer /aerated drink / Sparkling Drink and so on
No. of Rinsing/
Filling/Capping
14-12-6
18-18-6
24-24-8
32-32-8
40-40-12
50-50-15
Production Capacity
(330ml)
3000BPH
5000BPH
8000BPH
12000BPH
15000BPH
19000BPH
Filling precision
≤±3mm(liquid level)
≤±5mm(liquid level)
≤±5mm(liquid level)
≤±5mm(liquid level)
Filling temperature
0~30℃ or customzied
User Ambient
Conditions
Temperature:10~40℃; Humidity: No dew
Suitable bottle
specification
Volume=200-2000ml
Diameter φ=50-100mm
Bottle height H=160 ~340mm
Bottle type
Glass Bottle
Bottle neck/Cap Style
Metal Crown Cap φ=24-28mm
Machine material
Food stage SS304 OR SS316
Air source pressure
0.15~0.5Mpa
Filling way/principle
Micro negative pressure filling / gravity filling
Control system
SIMENS PLC+ TOUCH SCREEN
Features
No Bottle No Filling No Bottle No Capping
Main Power
2.75kw
3.18kw
4.18kw
7.68kw
7.68kw
11.5kw
Power Supply
Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement
Overall dimensions
(mm)
2700x1500x2300
3012x2012x3260
3280x2420x3200
4430x2880x3200
4650x3200x3200
4987x3846x3200
Weight (kg)
2800
3800
5000
6800
8800
11000
All machines could be customized , we could design design and produce machines according to your request.
Details Images
Turnkey Project Automatic Washing Filling Capping Machine for Alcohol Drinking Automatic Glass Bottled Gin Production factory

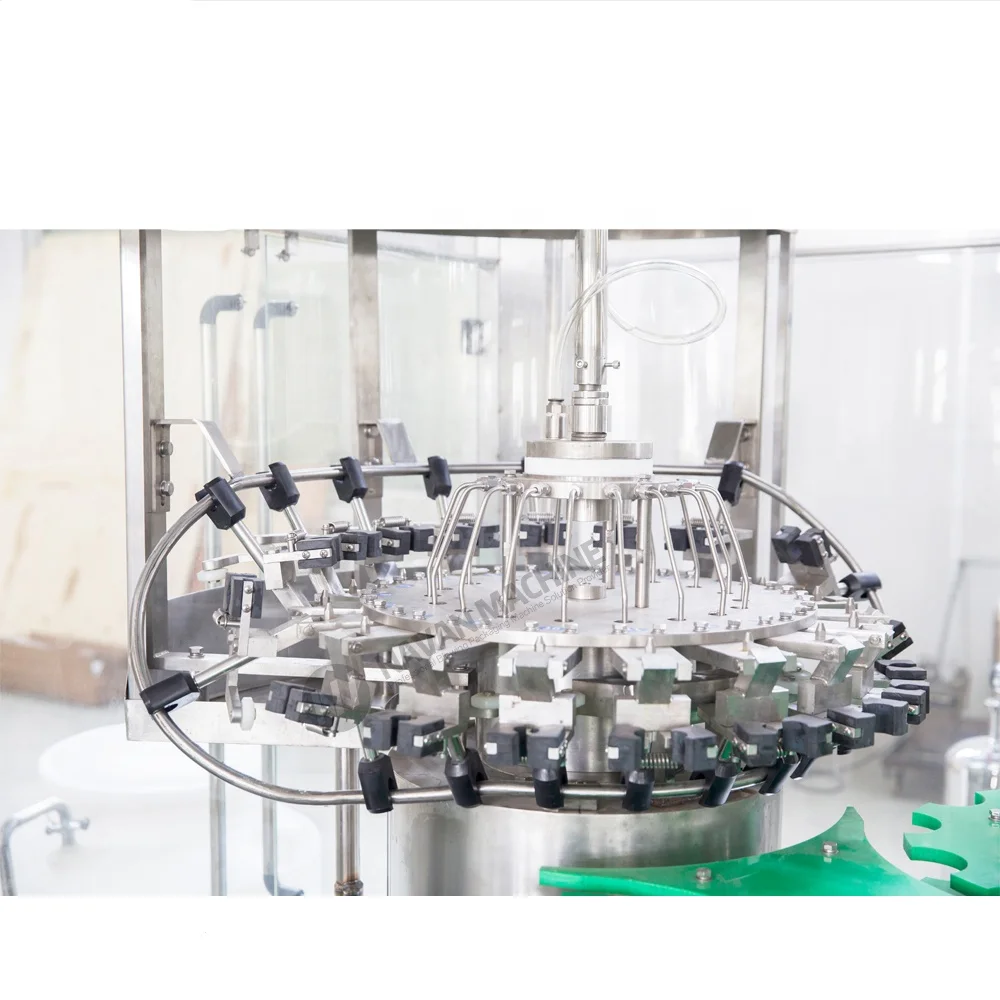

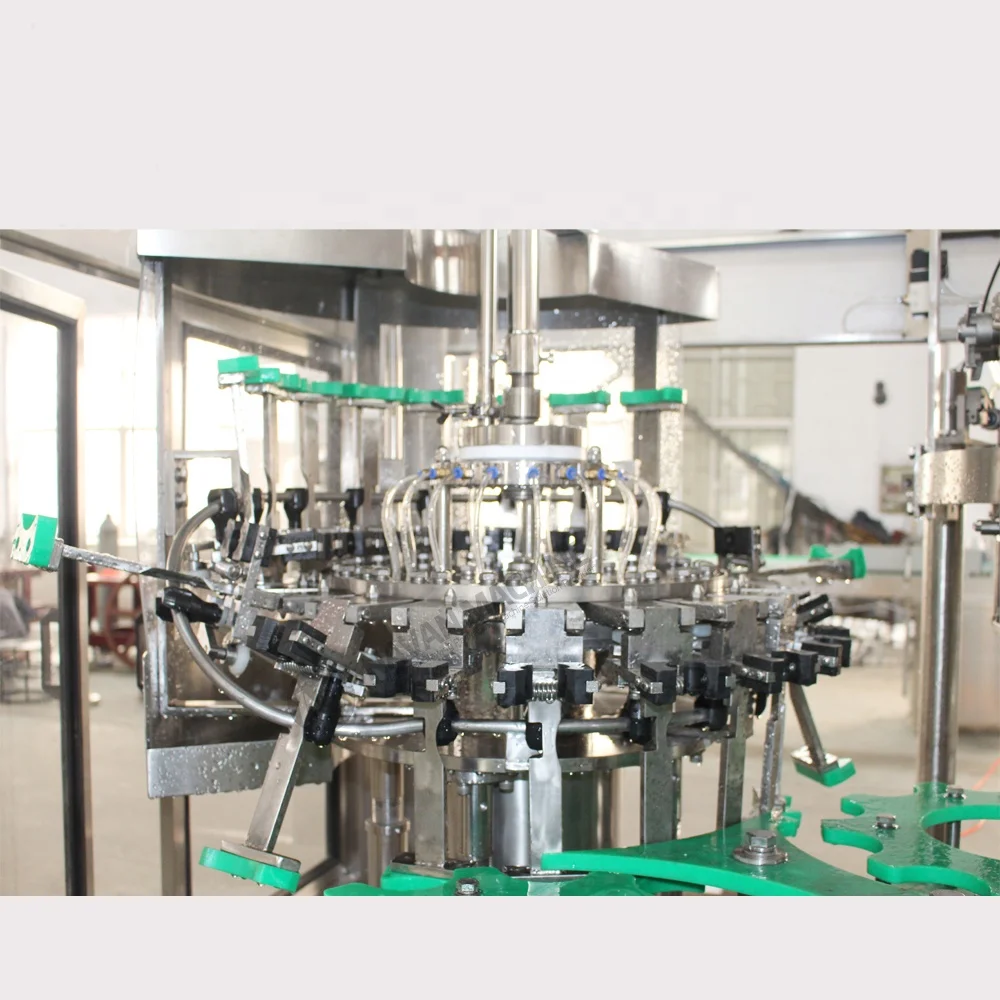

Washing Parts.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.

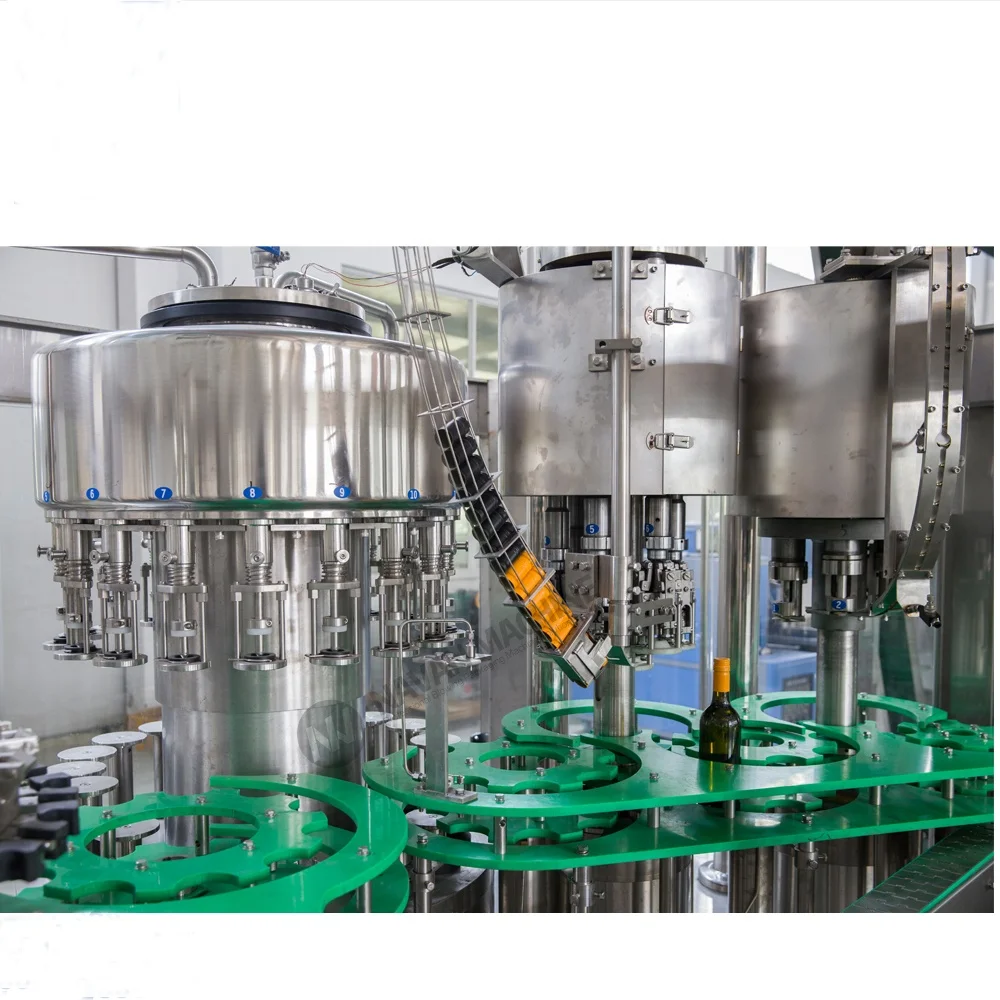

Filling Parts.
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
Turnkey Project Automatic Washing Filling Capping Machine for Alcohol Drinking Automatic Glass Bottled Gin Production manufacture
Turnkey Project Automatic Washing Filling Capping Machine for Alcohol Drinking Automatic Glass Bottled Gin Production factory

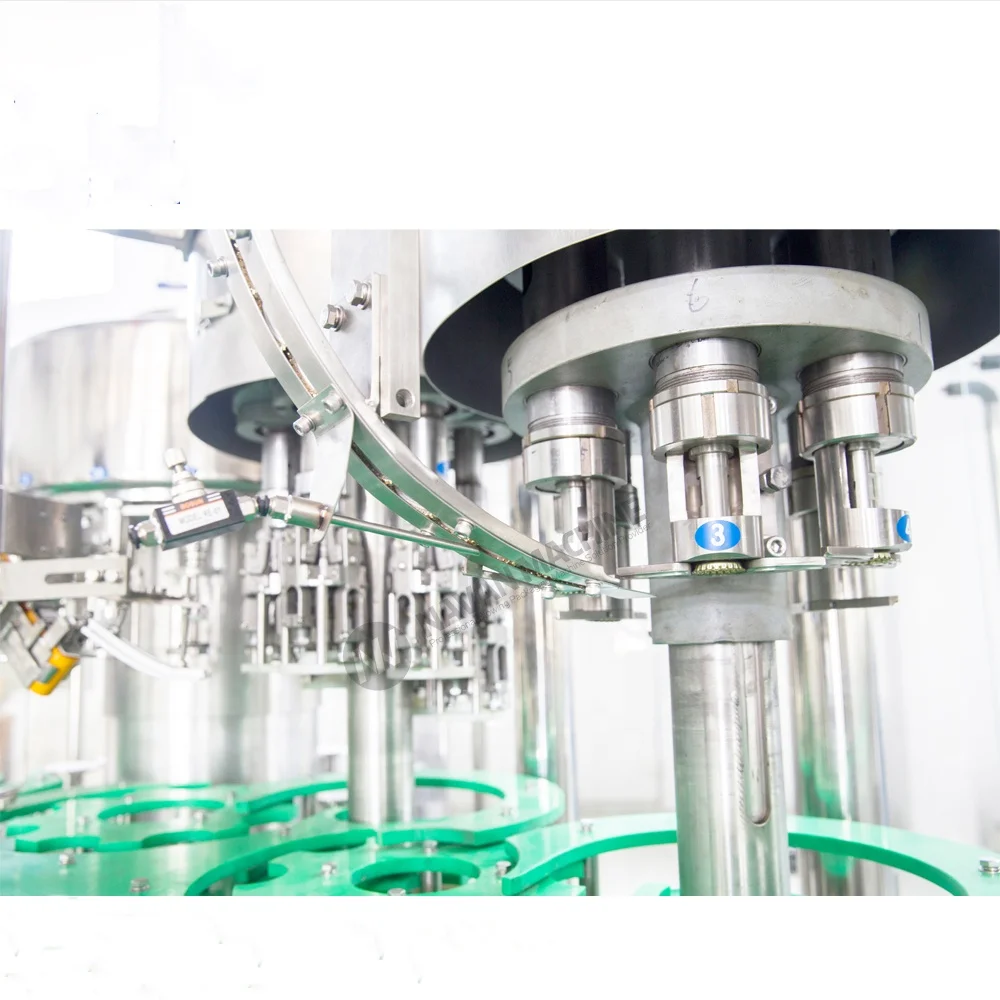

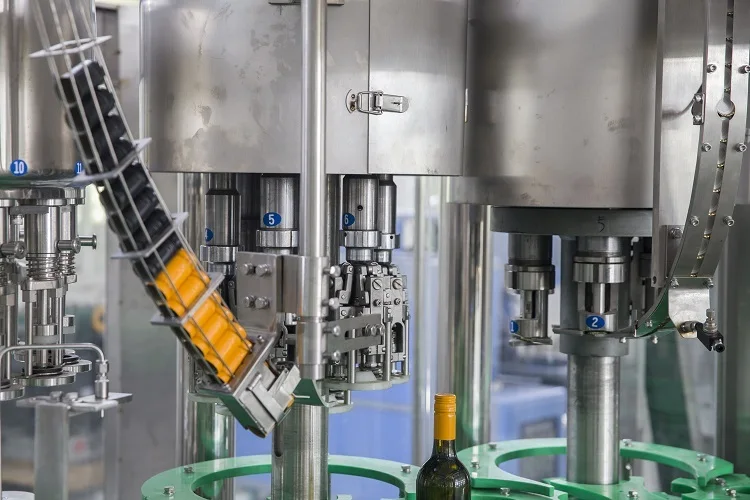

Capping Parts.
The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head.
Related Products
Turnkey Project Automatic Washing Filling Capping Machine for Alcohol Drinking Automatic Glass Bottled Gin Production details

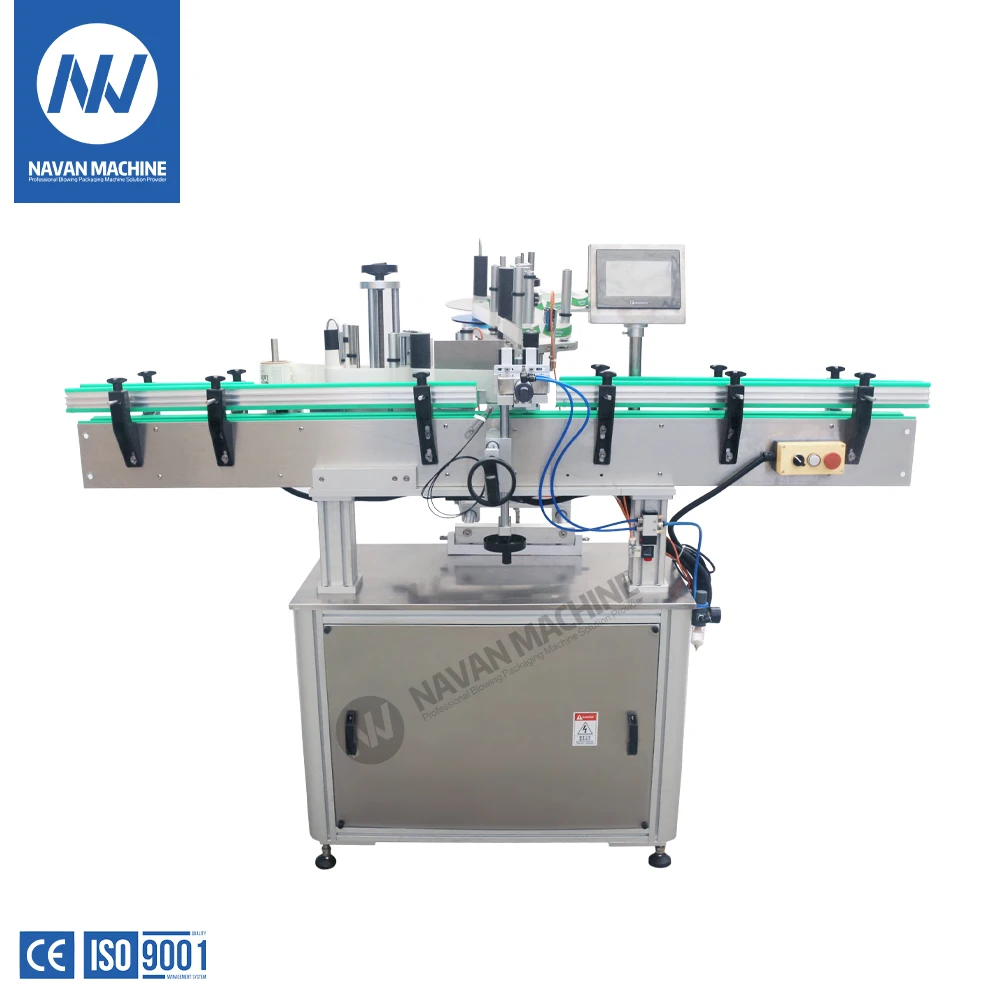

OPP Labeling Machine.

Turnkey Project Automatic Washing Filling Capping Machine for Alcohol Drinking Automatic Glass Bottled Gin Production details

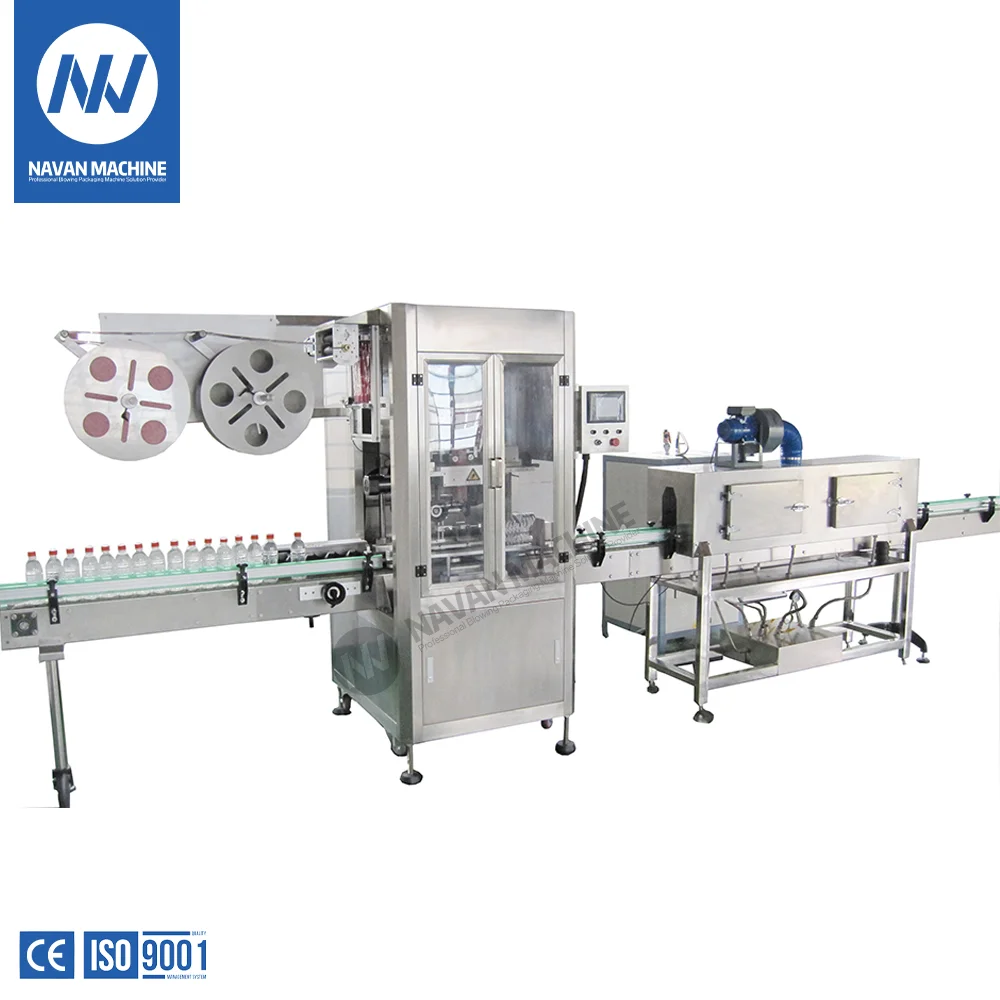

Shrink Sleeve Labeling Machine.

Turnkey Project Automatic Washing Filling Capping Machine for Alcohol Drinking Automatic Glass Bottled Gin Production details

Sticker Labeling Machine.

Turnkey Project Automatic Washing Filling Capping Machine for Alcohol Drinking Automatic Glass Bottled Gin Production supplier

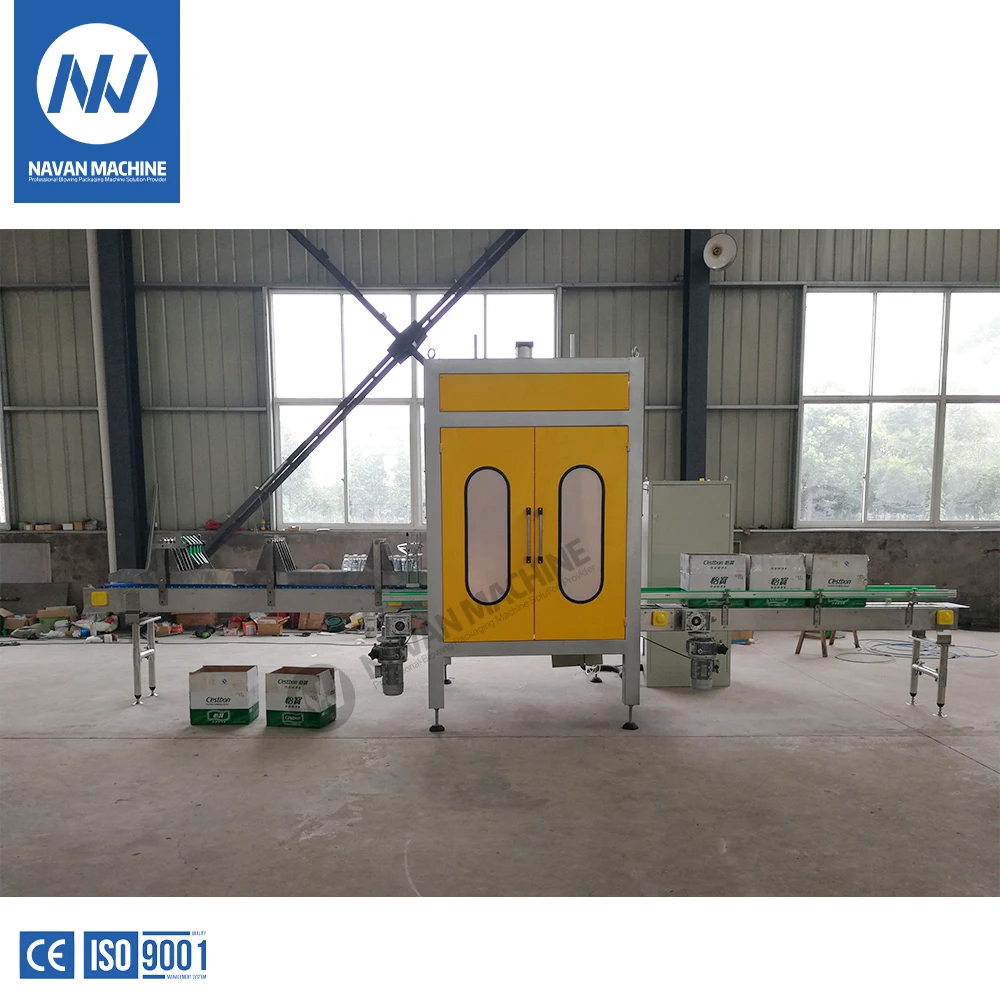

NAVAN high accuracy carton packing wrapping machine.
1: The grabbing cartoning machine is a kind of equipment that integrates mechanical, pneumatic and electrical control. It can pack plastic flat bottles, round bottles, special-shaped bottles and other glass bottles of various sizes;
2: The grab-type cartoning machine uses the grab head to fill and deflate to grab and release the bottles. Through mechanical operation, pneumatic and electric control, the bottles are accurately and reliably loaded from the bottle conveying table into the box;
3: All electrical components are selected brands. The performance of the whole machine is stable and reliable;
4: Using frequency conversion speed regulation and PLC control technology, combined with human-machine interface, easy operation and high degree of automation;
5: Fast packing speed, suitable for high-volume, high-speed assembly line automatic packaging operations;
6: Multiple protection devices to protect equipment and personnel.
Turnkey Project Automatic Washing Filling Capping Machine for Alcohol Drinking Automatic Glass Bottled Gin Production supplier
Finished product display
Why Choose Us
Turnkey Project Automatic Washing Filling Capping Machine for Alcohol Drinking Automatic Glass Bottled Gin Production factory
Turnkey Project Automatic Washing Filling Capping Machine for Alcohol Drinking Automatic Glass Bottled Gin Production manufacture
Turnkey Project Automatic Washing Filling Capping Machine for Alcohol Drinking Automatic Glass Bottled Gin Production supplier

About NAVAN.

Navan Industrial has invested its best resources in technical research, to design and realize innovative in bottle blowing, filling, capping , labeling and packing systems which enable to respond and reach different demands and achieve new goals everyday, seizing the market's expectations in the pass years .

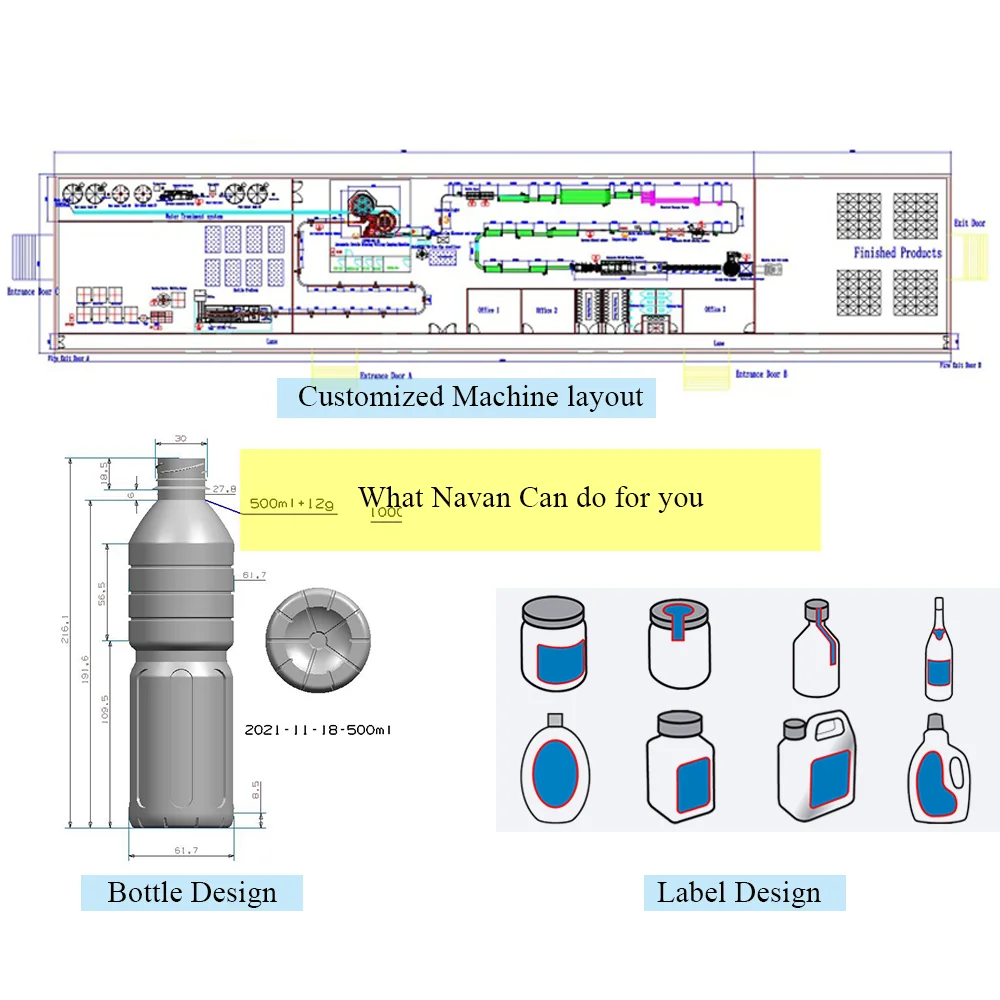

At the same time , we also provides turn-key services for customers, from plant layout, equipment manufacturing, production line setup, to operators training. We are always trying our best to meet the demands of our customers continuously and seeking for mutual development. Today Navan has enhanced its exsitence both in domestic and global market. Thanks to its various and perfect cases, we provide our customers with delicated and customized solutions at quick response. Navan machines are utilized in large and small companies all around the world for years Massive experience gained through the years of water, juice , soft drink ,beer,honeys, sauces etc., with all the abundant experience we are able to deal with any problems related to specific customers requirements, such as daily or special products., and perfect the creation of various machine to satisfy any customer's demands.
Turnkey Project Automatic Washing Filling Capping Machine for Alcohol Drinking Automatic Glass Bottled Gin Production details
Turnkey Project Automatic Washing Filling Capping Machine for Alcohol Drinking Automatic Glass Bottled Gin Production factory
Customers.
We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature techniques and first-class quality.
