18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line

18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line

This advanced 18.9L/20L bottling system is specifically designed for efficient 5-gallon water bottle filling and capping operations. Perfect for water bottling plants and beverage manufacturing facilities, this automated line seamlessly integrates filling and capping functions to deliver superior productivity. The machine features precise filling controls to ensure accurate volume dispensing, while its high-grade stainless steel construction guarantees durability and meets strict hygiene standards. Built with reliable PET bottle handling capabilities, the system can process up to multiple bottles per minute with minimal operator intervention. The integrated capping mechanism ensures secure sealing for product freshness and safe transportation. Easy to operate and maintain, this bottling line offers consistent performance for both small-scale operations and industrial production needs, making it an ideal choice for drinking water packaging businesses looking to optimize their production efficiency.

Get a Quote
  • Description

+8615601563990
[email protected]
Inquiry
Products Description
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line supplier

18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line

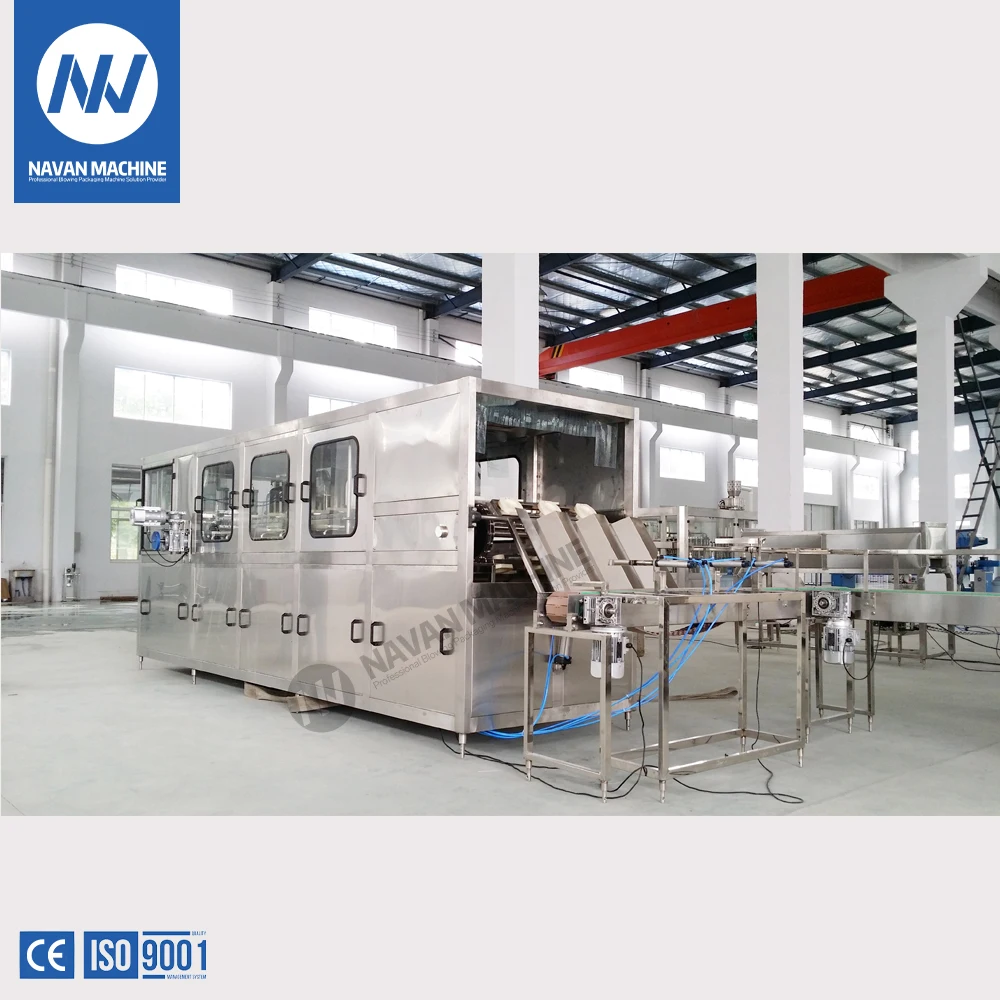

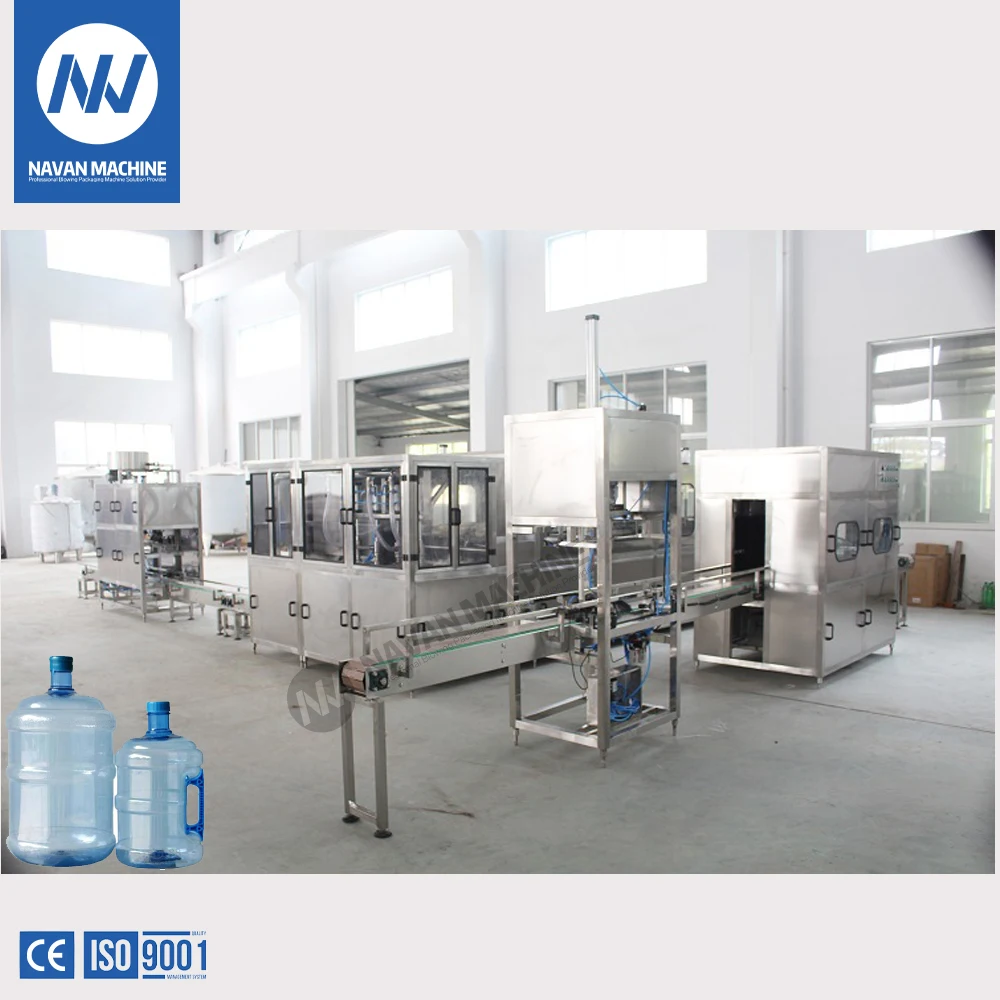

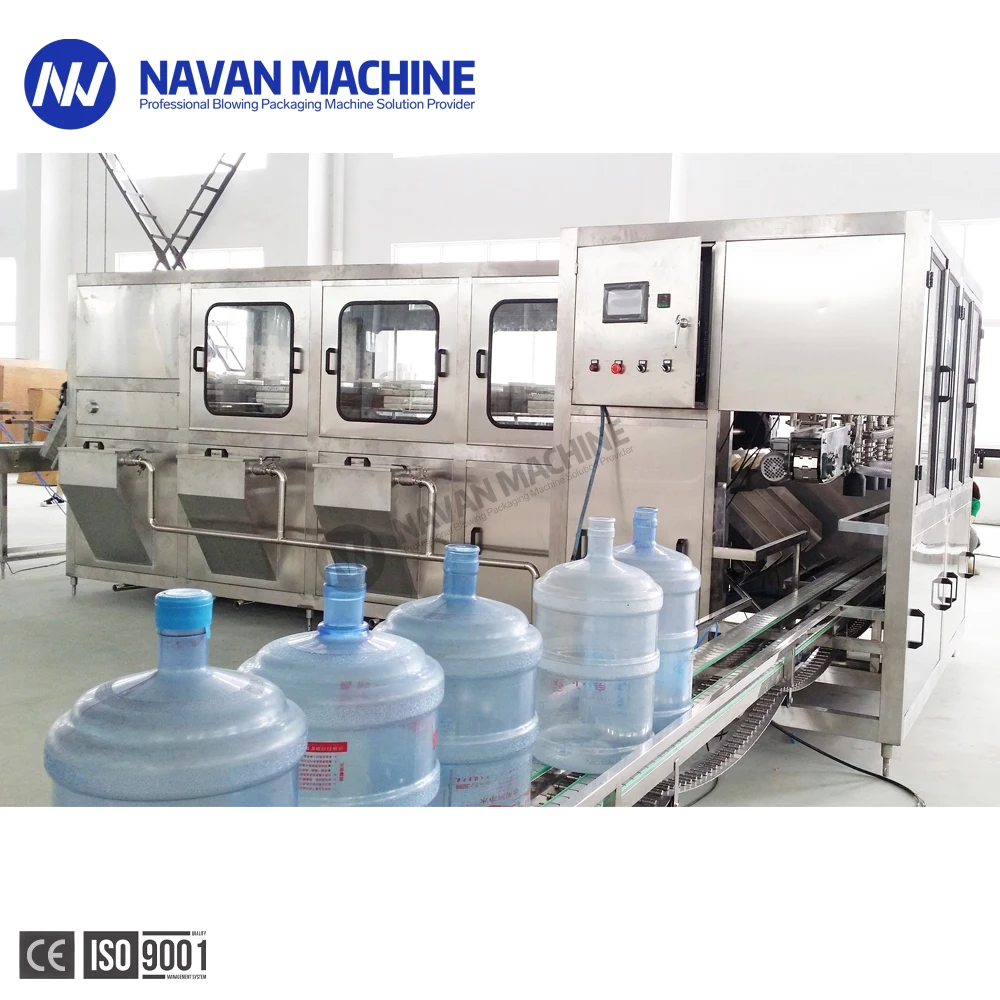

QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line details
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line details
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line factory
Packaging Display
Details Images
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line details
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line details

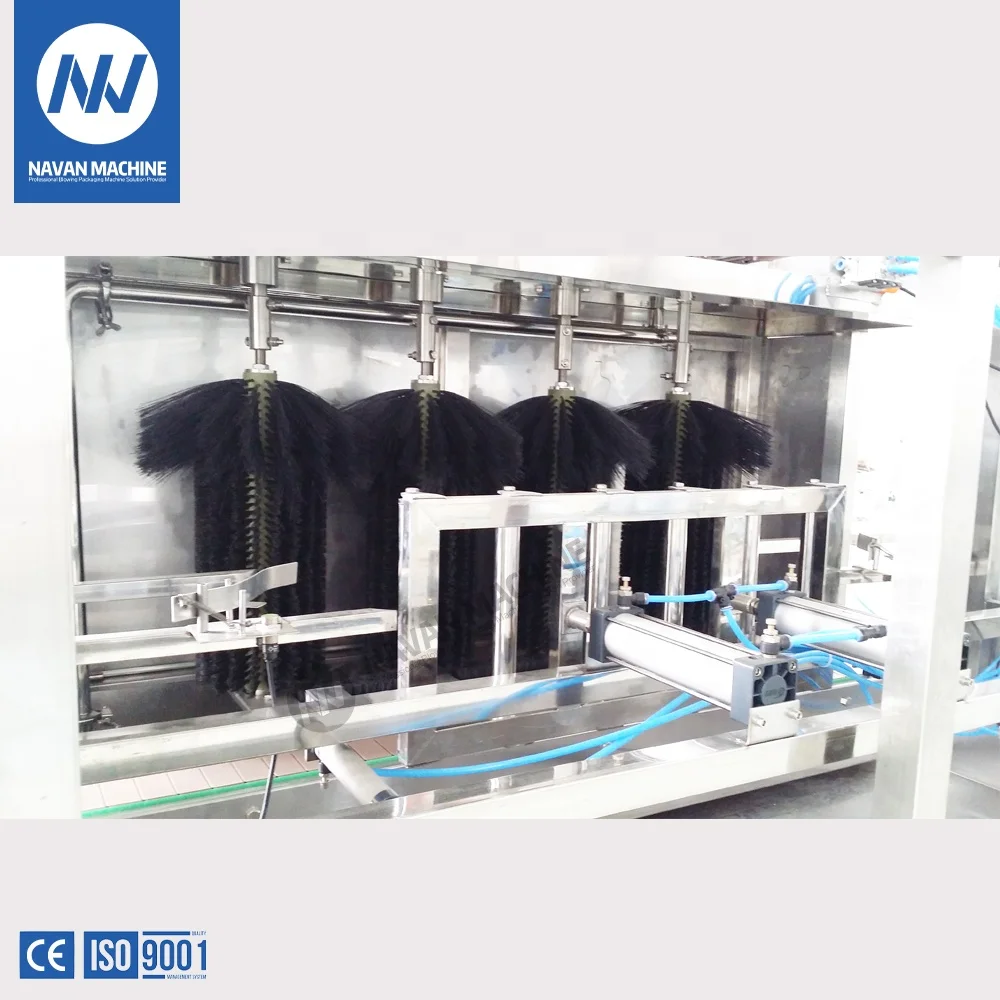

Outside Wshing Machine.

Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line manufacture

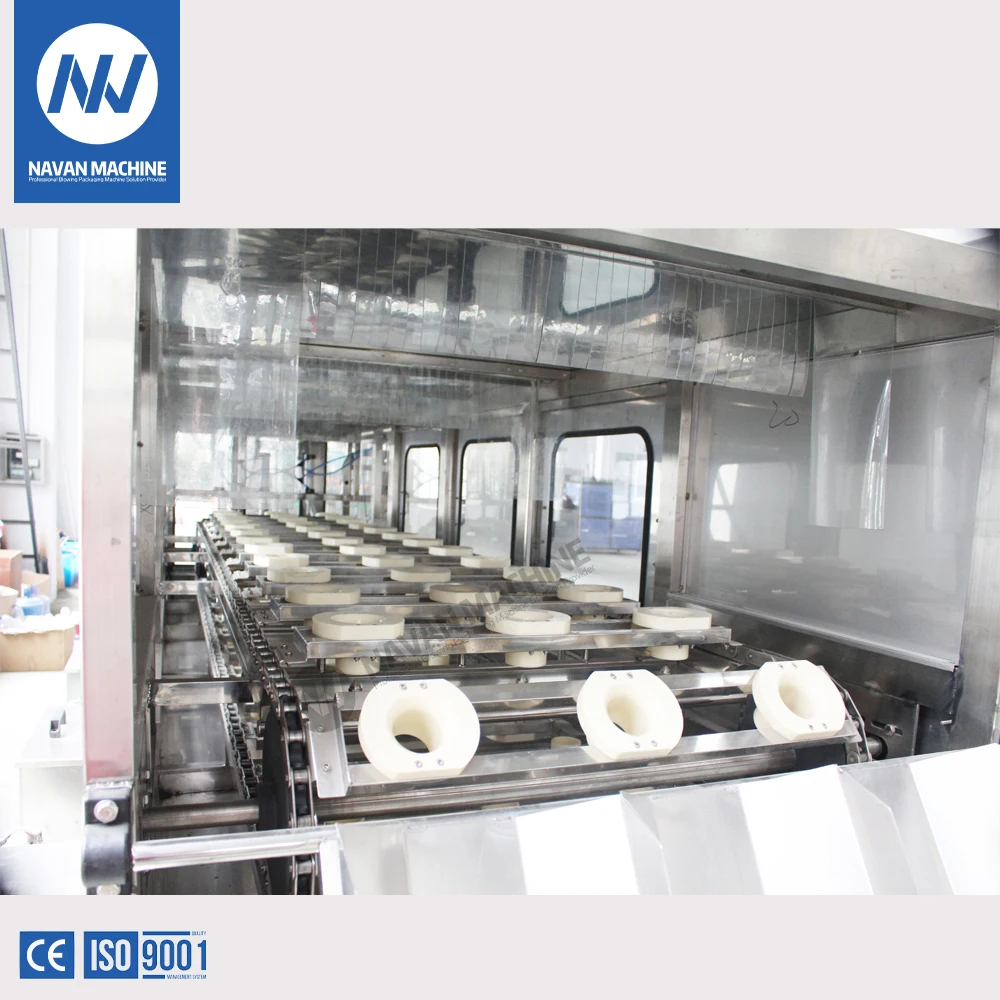

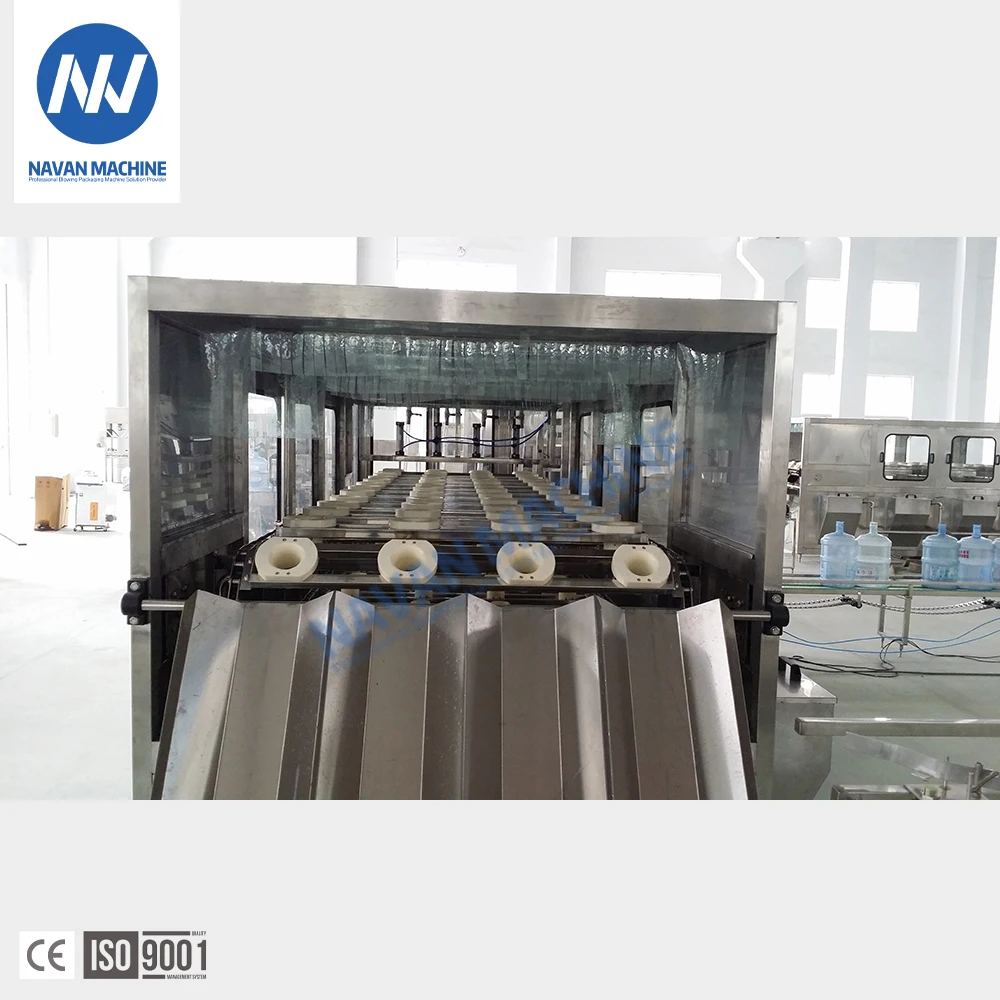

Washing parts

<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line supplier

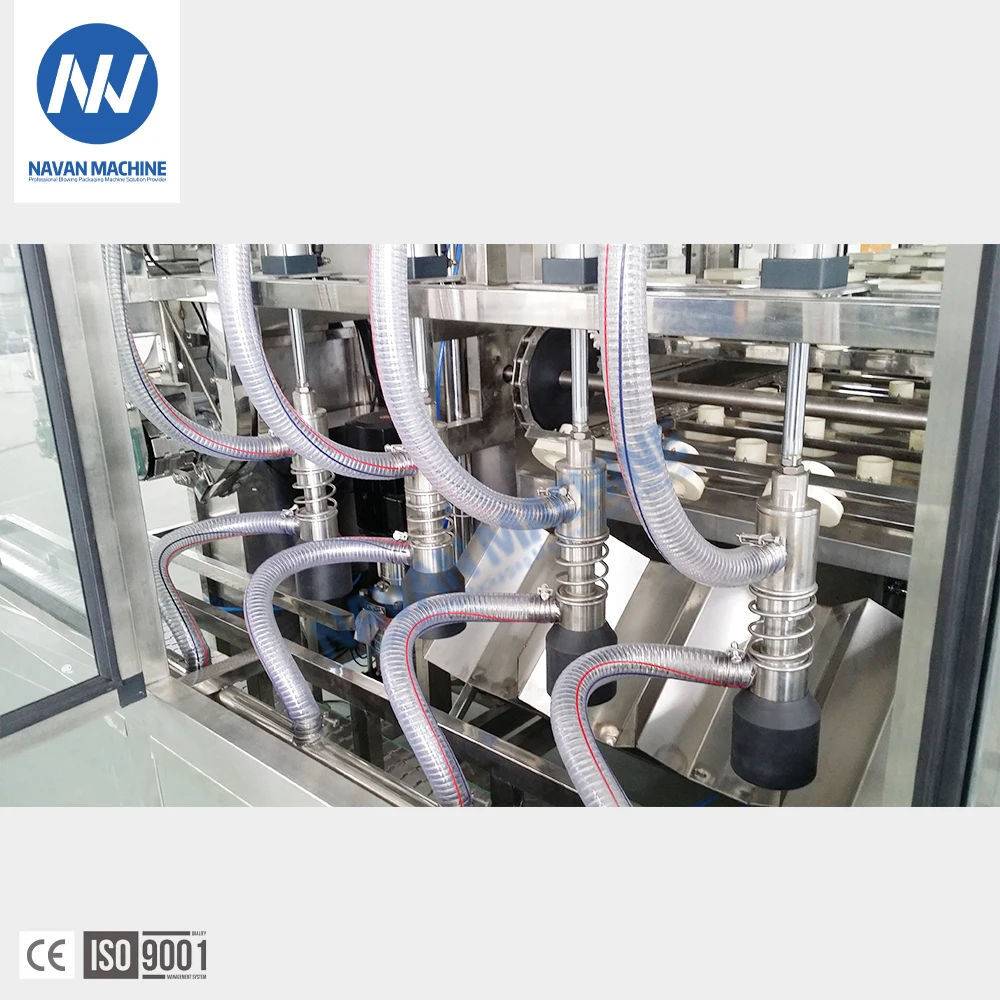

Filling parts

Filling volume adjustable in fine rank, same liquid level after filling
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line details

Capping parts

<1>Liquid level difference is controlled in 1cm.
<2>Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line factory

Capping parts

Customers can choose to equip ABB/SEWmotor,GRUNDFOS water pump, FESTO pneumatic component.
Product Paramenters
18.9L 20L 5 Gallon Barrel PET Bottled Water Filling Capping Machine Drinking Water Bottling Line manufacture
Model
QGF-120
QGF-300
QGF-450
QGF-600
QGF-900
QGF-1200
Application
Spring water / mineral water / pure water /Distilled water and so on
No. of Filling heads
1
2
3
4
6
8
Production Capacity(B/H)
100BPH
300BPH
450BPH
600BPH
900BPH
1200BPH
Filling capacity(L）
10~20L
Filling temperature
0~30℃ or customzied
Machine type
Linear type
Linear type
Linear type
Linear type
Rotary type
Rotary type
Machine material
Food stage SS304 OR SS316
Control system
SIMENS PLC+ TOUCH SCREEN
Features
No Bottle No Filling No Bottle No Capping
Main Power
2.9kw
3.5kw
4.3kw
6.2kw
8.7kw
9.5kw
Power Supply
Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement
Overall dimensions (mm)
2600×650×1550
3900×1500×1700
3900×1775×1700
3900×2050×1700
4650x3200x3200
4987x3846x3200
Weight (kg)

800
1500
2000
2500
3000
3500
All machines could be customized , we could design and produce machines according to your request.
