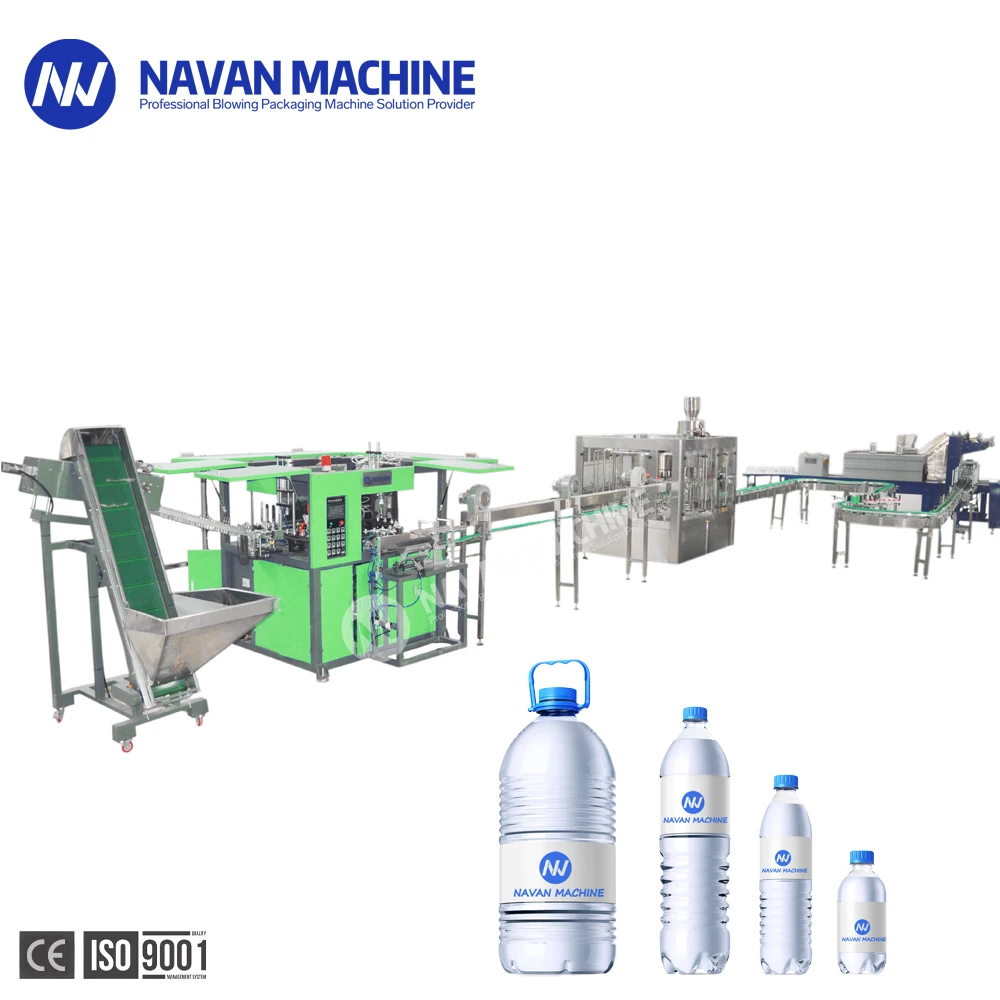

Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line

Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line

This state-of-the-art complete PET bottle filling line delivers exceptional performance for your water bottling needs. Designed for pure and drinking water production, this comprehensive system handles everything from bottle rinsing to filling and capping in one seamless operation. The automated line ensures consistent quality and maximum efficiency, capable of processing various bottle sizes with minimal changeover time. Built with food-grade stainless steel and advanced PLC control systems, it maintains strict hygiene standards while offering reliable, continuous operation. Perfect for both startup bottling companies and established water plants, this versatile production line combines German-inspired engineering with user-friendly operation. The system includes bottle washing, filling, capping, labeling, and packaging modules, complete with advanced features like automatic bottle rejection and production data monitoring.

Get a Quote
  • Description

+8615601563990
[email protected]
Inquiry
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line supplier
NAVAN Machine.
We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China. Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines. Navan Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training.
VR
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line details
Products Description

Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line

Success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety and cost optimisation. Whether you're producing still or sparkling water, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities.
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line details
Equipment Type
Automatic


Bottle Type
PET round or square bottle
Volume 200 - 2500ml
Bottle diameter 50-115mm
Bottle height 160-350mm
Output
up to 36,000BPH
Your product
mineral water/pure water/non-gas wine drink and so on.
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line manufacture
One Partner for all your needs.
A complete water line solution from NAVAN Machine leverages our knowledge of the entire water bottling process, from minimising waste of resources, to ensuring that your bottle is durable and attractive to consumers. With everything centred around one supplier, you get wide-ranging expertise, line equipment and ongoing services. This ensures high quality and efficiency from packaging to equipment, fast ramp-up and beyond.
What We Do
We are devoted to supplying complete solution for the water filling plant ,including Water treatment system / Washing filling capping machine / liquid nitrogen dosing system / Auto Bottle Checker / Bottle Blow Dryer / Laser Inkjet Printer / Automatic labeling machine / Automatic packing machine / Automatic Conveyor System / Automatic Palletizer system and other auxiliary equipment such as transformer , electric generator , steam boiler , CIP cleaning system forklift truck .... etc
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line manufacture
Different Model Performance
8-8-4 Bottle Water Filling Machine Capacity:2000-3000 bottles per hour.
12-12-6 Bottle Water Filling Machine Capacity:3000-4000 bottles per hour.
18-18-6 Bottle Water Filling Machine Capacity:6000-8000 bottles per hour.
24-24-8 Bottle Water Filling Machine Capacity:10000-12000 bottles per hour.
32-32-10 Bottle Water Filling Machine Capacity:16000-18000 bottles per hour.
40-40-12 Bottle Water Filling Machine Capacity:20000-22000 bottles per hour.
50-50-15 Bottle Water Filling Machine Capacity:24000-26000 bottles per hour.
60-60-15 Bottle Water Filling Machine Capacity:34000-36000 bottles per hour.
Details Images
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line details
1- Water Treatment System (Pure Water + Mineral Water + Alkaline Water + Oxygen-enriched water )
* Raw water tank + Raw water pump
* Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
* Reverse Osmosis (First , Second stage) + Ultrafiltration System + Water Ionizer (Electrolyzed water machine)
* UV sterilizer + Ozone sterilizer + Ozone mixing tower +
* Finished water tank + Pure water pump +Titanium rod filter
According to customer's water source analysis report and the final water standard required ,we will recommend customer the suitable water treatment plants.
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line details
2 - Automatic Stretch Bottle Blow Molding Machine (liner , rotary , servo type)
NB series of fully automatic, semi-automatic PET blow molding machines and other 10L-20L Full Automatic Blow Molding Machine with output from 1000 to 24000 bottles per hour, which can satisfy different customers' requirements. our products Certificated by CE. In order to meet customers’ specific requirements, factory offer product capacity ranges from 50ml to 30L, suitable for all kinds of PET bottles which contain mineral water, carbonated beverages, fruit juice, teas, edible oils cosmetics, detergents, and wide-mouth jar, etc. It is an ideal choice for large beverage factories, mineral water companies, and PET packaging enterprises.
Features
1 / Blower : Industry-leading blower performance with patented control and self-regulation systems for repeatable and consistently high bottle quality
2 / Top quality: Electrical stretching for bottle integrity, full material distribution control and performance
3 / Fast output: Boosted uptime and speed (up to 2,400 bottles/mould/hour)
4 / Efficient consumption: Up to 45 % less electricity and 35 % less compressed air
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line factory
3 - LP Series Automatic Bottle Unscrambler
The LP type automatic bottle unscrambler is used for the sorting of disordered polyester or PET bottles. The scattered bottles are sent by the elevator to the bottle unscrambler , and the bottles enter the bottle compartment to position themselves by the thrust of the fan. With the function of the bottle turning device, the bottles are sorted into the bottle mouth to stand upright, and output into the filling or next process through the air conveying or conveying system.
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line manufacture
4 - CGF Bottle Water Filling Machine [ Washing Filling Capping 3 in 1 Monoblock Machine ]
CGF series of machines are full-automatic multiple-function washing , filling, capping unit . It is used in washing ,filling ,capping all kinds of non-gas drink, such as vinegar ,wine, fruit wine, mineral water , pure water . This filling and packing equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing ,filling ,capping .Most of elements of the electric system employ famous brand products .The machines parts contact the liquid are made of high quality stainless steel .They obtain the advantages of good abrasive resistance , high stability ,low failure rate ,etc. The quality of the equipment reach the international advanced level and gained good reputation among our clients .
Features
1 / Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage
2 / Optimum uptime: 30 % reduction in changeover and maintenance downtime
3 / Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4 / Hygiene improvement through volume control and contactless filling
5 / Automatic dummy bottles: Safer, easier cleaning procedures
6 / Automatic bottle changeover improves uptime
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line supplier
5 - Automatic Bottle Labeling Machine
As customer request and market demand , we offer PVC /PET sleeve srhink labeling machine , BOPP hot glue labeling machine ,Adhesive stick labeling machine ,Wet glue labeling machine . All machines are equipped with SIEMENS / Schneider / Panasonic PLC & Human touch screen , ABB , SEW , SANYO servo motor , up to three labelling stations and 24 configurations, can generate outputs of up to 36,000 containers per hour, when standalone, at an efficiency rate of 98%.
Benefits
1 / Greater performance and ergonomics
2 / Boasted production uptime
3 / Sustainable and quality production
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line supplier
6 - Automatic Bottle Packing Machine
Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The final result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure and temperature changes.Whether you choose shrink-printed film, nested packs or wraparound cartons, NAVAN Machine packers gently feed bottles to ensure durable and cost-effective packs.
BENEFITS.
1 / Transparent plastic film shrink wrapper packing machine
2 / Printed plastic film shrink wrapper packing machine
3 / Half tray shrink wrapper packing machine
4 / One piece carton packing machine with melting glue sealing
5 / One piece carton packing machine with plastic tape sealing
6 / Online palletizer and stretch wrapping packing machines
7 / Flexible & Motorized Conveying System
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line manufacture
Finished Product Display
NAVAN Factory Competitive Water Lines Solution for PET 200-2000ml Bottle
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line factory
Complete Turn-key Project
Leadership in quality and technology from raw material to bottled liquid to selling products - NAVAN Co.,Ltd, A-Z turnkey plant supplier, is known for developing innovative high-end products and new technologies.
Product Paramenters
Model
CGF8-8-3/4
CGF12-12-5/6
CGF18-18-6
CGF24-24-8
Application
Spring water / mineral water / pure water / non-gas wine drink and so on
No. of Rinsing/Filling/Capping
8-8-3/4
12-12-5/6
18-18-6
24-24-8
Production Capacity(500ml)
2000BPH
4000BPH
6000-7000BPH
10000~12000BPH
Filling way/principle
Gravity filling method
Control system
SIMENS PLC+ TOUCH SCREEN
Features
No Bottle No Filling No Bottle No Capping
Main Power
1.9kw
3.5kw
4.0kw
4.8kw
Power Supply
Voltage:220V~480V, 3phase; Frequency:50HZ/60HZ or your requirement
Overall dimensions (mm)
1900*1420*2000
2050*1800*2400
2580*2100*2200
2780*2200*2200
Weight (kg)
1500
2500
3500
4500
All machines could be customized , we could design and produce machines according to your request.
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line details
Model
CGF32-32-10
CGF40-40-10/12
CGF50-50-12/15
CGF60-60-15
Application
Spring water / mineral water / pure water / non-gas wine drink and so on
No. of Rinsing/Filling/Capping
32-32-10
40-40-10/12
50-50-12/15
60-60-15
Production Capacity(500ml)
16000-17000BPH
19000-20000BPH
23000-24000BPH
34000~36000BPH
Filling way/principle
Gravity filling method
Control system
SIMENS PLC+ TOUCH SCREEN
Features
No Bottle No Filling No Bottle No Capping
Main Power
5.5kw
7.5kw
11.0kw
15.0kw
Power Supply
Voltage:220V~480V, 3phase; Frequency:50HZ/60HZ or your requirement
Overall dimensions (mm)
3800*2800*2600
4600*2800*2600
5450*3300*2600
6500*4500*2600
Weight (kg)
6500
8500
9800
12800
All machines could be customized , we could design and produce machines according to your request.
Recommend Products
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line details
Water Filling Machine
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line manufacture
Juice Filling Machine
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line factory
Carbonated Drink Filling Machine
Best Service
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line details
NAVAN Machine Options & Upgrades helps you:
1 - Boost product quality
2 - Increase efficiency
3 - Reduce Total Cost of Ownership
4 - Future-proof your productivity
5 - Browse our online catalogue
NAVAN SERVICES
The sample service
1.Video of the running machine for your reference .
2.Visiting our factory, and watch the operation of the machines (pick you services available airport or railway station)
3. Reference project visiting after the permission of our customers .
Customized service
1. OEM & ODM machines available (material ,power,filling type,the kinds of the bottles, and so on).
2. Professional consulting services on factory design , bottle design , label design .... etc
After-sales service
1. B/L and concerning Invoice , Packing List , Certificate .... on time for your quick customs clearance
2. Engineer to your factory for the installation, testing and also training after Preparation conditions done .
3.We provide one year warranty with spare parts free since machines installation done & accepted .
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line details
Label Design.
We can provide the label design according to the bottle size, the icon style you want.
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line supplier
Bottle Design.
Our designers can design bottle styles according to your requirement.
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line details
Workshop Layout.
We will design andconfirm the machine layout according to your factory sketch.
Why Choose Us

NAVAN Machinery.

Navan Industrial has invested its best resources in technical research, to design and realize innovative in bottle blowing, filling, capping , labeling and packing systems which enable to respond and reach different demands and achieve new goals everyday, seizing the market's expectations in the pass years .
At the same time , we also provides turn-key services for customers, from plant layout, equipment manufacturing, production line setup, to operators training. We are always trying our best to meet the demands of our customers continuously and seeking for mutual development. Today Navan has enhanced its exsitence both in domestic and global market. Thanks to its various and perfect cases, we provide our customers with delicated and customized solutions at quick response. Navan machines are utilized in large and small companies all around the world for years Massive experience gained through the years of water, juice , soft drink , beer, honeys, sauces etc., with all the abundant experience we are able to deal with any problems related to specific customers requirements, such as daily or special products., and perfect the creation of various machine to satisfy any customer's demands.
Complete Drinking Water PET Bottle Filling Machine Line Pure Water Bottling Plant / Production Line factory
Advantages of NAVAN
<1> Standardized workshop of total 3,000 square meters.
<2> The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
<3> Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
<4> We can produce different products with different capacities and work out reasonable flow chart as per customers’ requirements to save space.
<5> Professional & experienced installation team who can speak fluent English , French can help customers make benefits in the shortest time.
Local services and supports available in Africa and South East Asia

Certificates.

Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS-COC , TUV
National Certificate of equipment verification: Nigeria SONCAP , CNCA certificate, Logo trademark registration,etc.
photobank (1).png
Customers.
We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature techniques and first-class quality.
FAQ
Q 1 When can I get installation from you? how much the cost?
When you finish the preparation conditions(water resource,electricity,air supply,production materials) according to our designed layout , we will dispatch engineer to you.
 Inspect and improve connection jobs together with your team .
 Guide your staff to operate machines , and explain how to operate and maintain machines .
 Collected your your comments on our machines , we will send feedback to our technical team to improve our machines continuously. The customer should be responsible for the room, meals and board and the two-way air tickets and visa and fee as well the allowance 100~200 USD per day for each person. And should be also responsible for the engineer’s personal safety. Note: Normally when your preparation is done,you can contact with our sales people and cooperate us to get the visa for the engineer and our engineer will be there within 15 days more or less .
Q 2 How long time for installation?
According your machines order, we will send one or two engineers to your plant, it will take about 15 days to 30 days.
Q 3 How about the spare parts?
We will send one year enough easy broken spare parts together with the machines together when delivery. During the warranty time, we will supply the spare parts with our cost price including and delivery fees.
Q 4 How to test machine before delivery?
We will connect all machines in line make them running over 8 hours non-stop , then take and send testing videos. Or we could live video inspection .
Q 5 How about the Packaging details?
Standard export packing to ensure that the product packaging integrity and safety. ( Heavy products adopt export plywood case packing with waterproof film . Small products use thick carton packing waterproof film)
Q 6 Do you have reference project?
We have reference project in most countries. After getting the permission of the customer who has brought the machines from us ,we will send you their contact information and arrange your visiting to their factory. And you are always welcome to come to visit our factories ,and inspect the machine running in our factory .We will be glad offer necessary supports on hotel booking , transportation , VISA application. OR you can get video of our reference running machine on our website too .
Q 7 What kind of machines you supply, where are you located?
We are factory , just 150km (2.5hour by car , 1 hour by train) away from Shanghai Airport.
NAVAN supply and manufacture the followings machines
1) Water treatment equipment--- Electrolytic water equipment, RO purified equipment, UF purified equipment, Sand filter, Carbon filter, Water softner, Sea Water treatment.
2) Filling Machine --- 2 in 1 Filling Capping Machine / 3 in 1 Washing filling capping machine / 4 in 1 Washing filling capping machine / 5 in 1 Washing filling capping machine ---for your water, beer , kombucha , Kvass , cabonated drink,juice,wine,vinegar, milk,tea and so on. --- 100 to 2500ml bottle, 3-10L,11- 20L bottle (3-6gallon bottle) --- PET bottle, Glass bottle, PP bottle and Can --- Pressure Cap , Screw cap, Aluminum cap, Grown Cap , T-cork , Wooden Cork and three (four) twist caps etc.
3) Labeling Machine --- Stick label, Shrink sleeve label, Hot melt Opp labels. Wet gule label
4) Printer --- Manual code printer , Inkjet printer , Laser printer
5) Packing Machine ---- Shrink wrapper , Carton Packer , Palletizer , Conveyor system , Robot Packing System
6) Bottle Blowing Machine --- Linear and Rotary Blowing Machine for making plastic bottle
7)Injection Molding Machine --- for your cap and proform.
8) Subsidiary products for drink production --- Bottle Washer, Bottle Capper, Conveyor, Bottle Dryer, Bottle Warmer, Bottle Loading system, Bottle unscrambler, CIP system, Bottle Cooler, Bottle Sterilizer, Blending tank, Storage Tank, Sugar Melting Pot, Syrup Filter Conveyor and so on.
NAVAN will supply you bottle design, label design, workshop design free and make Turnkey Project for you. Don't hesitate to contact us if you show interesting on our beverage production machine and our NAVAN company.

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000
TopTop
