Factory Direct Sales Fully Automatic 3-in-1 Glass Bottle Beer Filling Machine

This state-of-the-art 3-in-1 Glass Bottle Beer Filling Machine combines rinsing, filling, and capping operations in one efficient system, making it the ideal choice for medium to large-scale breweries. Featuring fully automatic operation and precise digital controls, this machine delivers consistent filling accuracy while maintaining optimal hygiene standards. The integrated rinser thoroughly cleanses bottles before filling, while the advanced filling system ensures minimal foam and precise liquid levels. The capping mechanism provides reliable, airtight seals to maintain product freshness. Constructed with high-grade stainless steel and food-grade materials, this equipment meets international safety and sanitation requirements. With adjustable speed settings and easy-to-use interface, it offers excellent production flexibility and reduced labor costs. Perfect for processing various bottle sizes, this machine guarantees efficient, reliable performance for your beverage production line.

Factory Direct Sales Fully Automatic 3-in-1 Glass Bottle Beer Filling Machine details

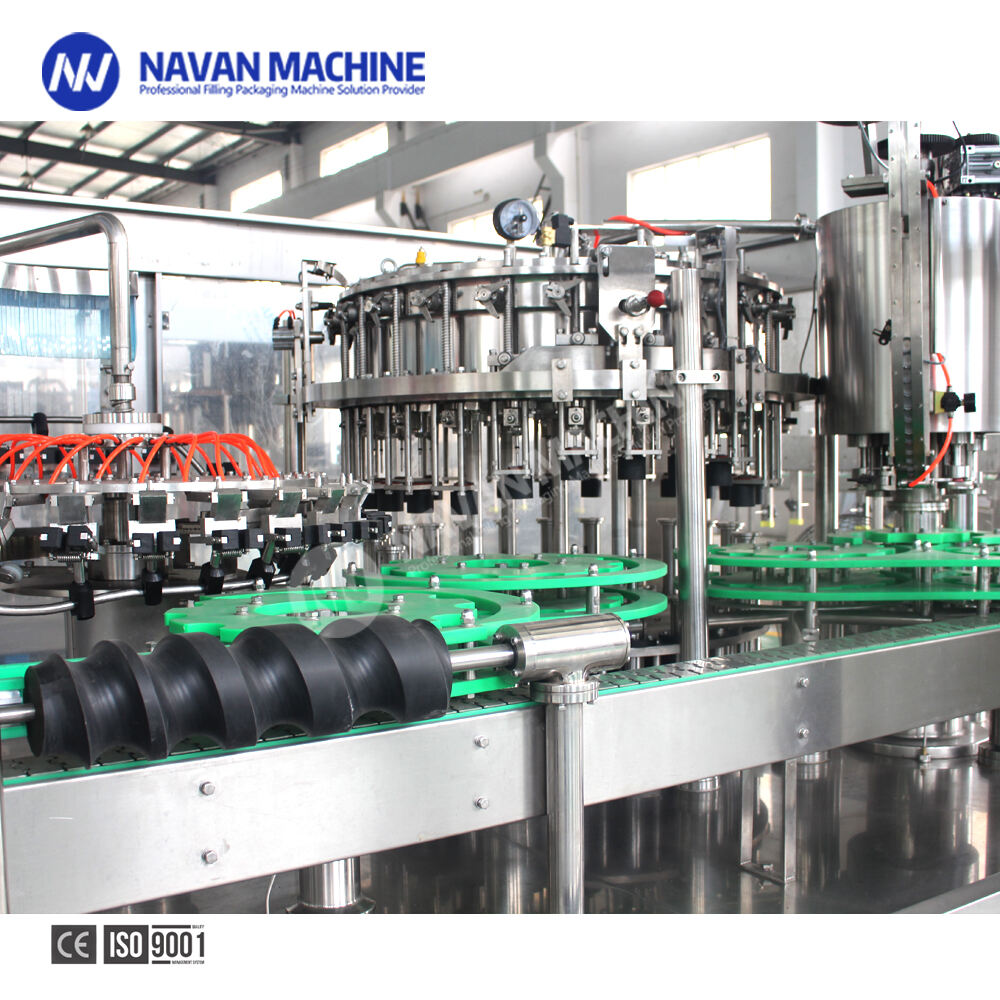

Full Automatic Glass Bottle Washing Filling Capping Machine
This glass bottle filler and capper can meet the filling -sealing requirements of different sealing manners for capper, T-cork , wooden cork capper, screw capper etc , and can be applied to water, carbonated soft drink ,fruit juice, coffee drink, protein drinks, beer, rice wine and so on, with domestic technology leading level. So it is the good machine choosing for middle and beginning factory .
1 - Bottle packing solutions to reduce your total cost of ownership
2 - Higher speeds with gentler handling
3 - Hygienic production for top quality water
4 - Reduced consumption with more efficient resources use
Factory Direct Sales Fully Automatic 3-in-1 Glass Bottle Beer Filling Machine supplier

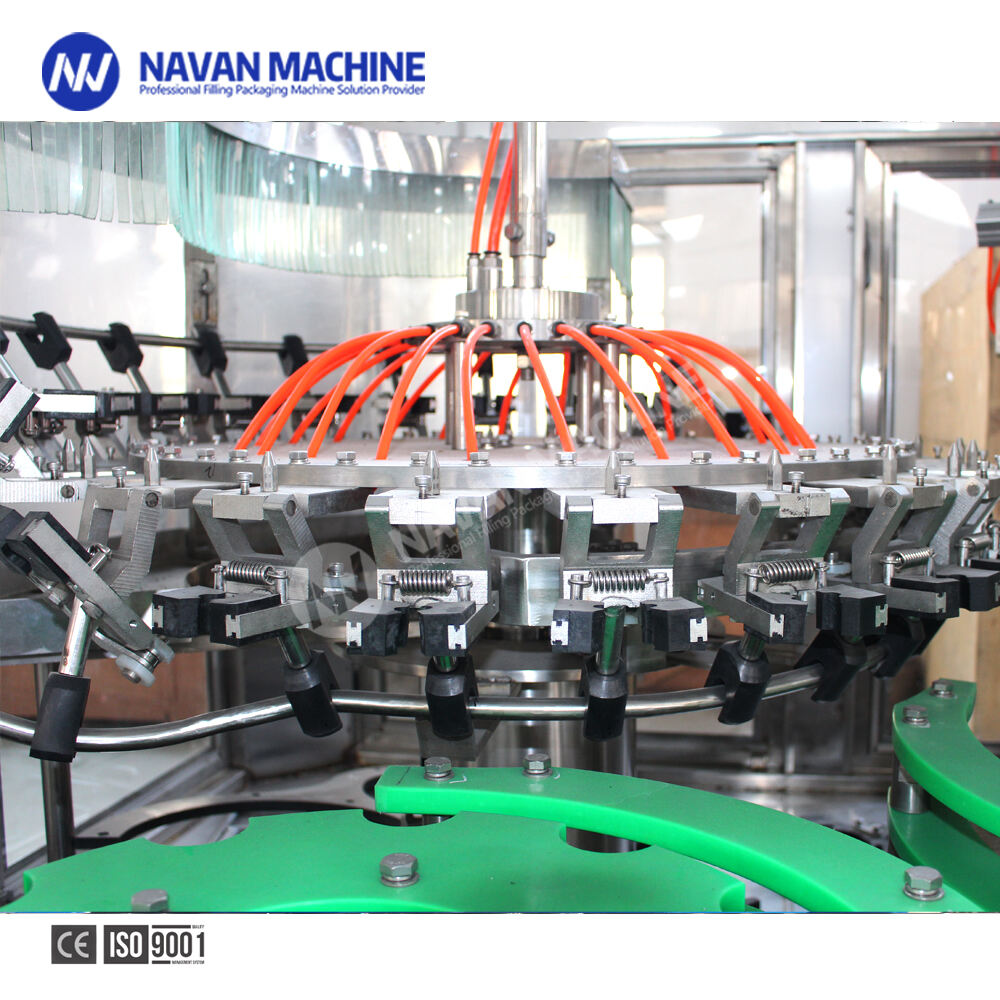

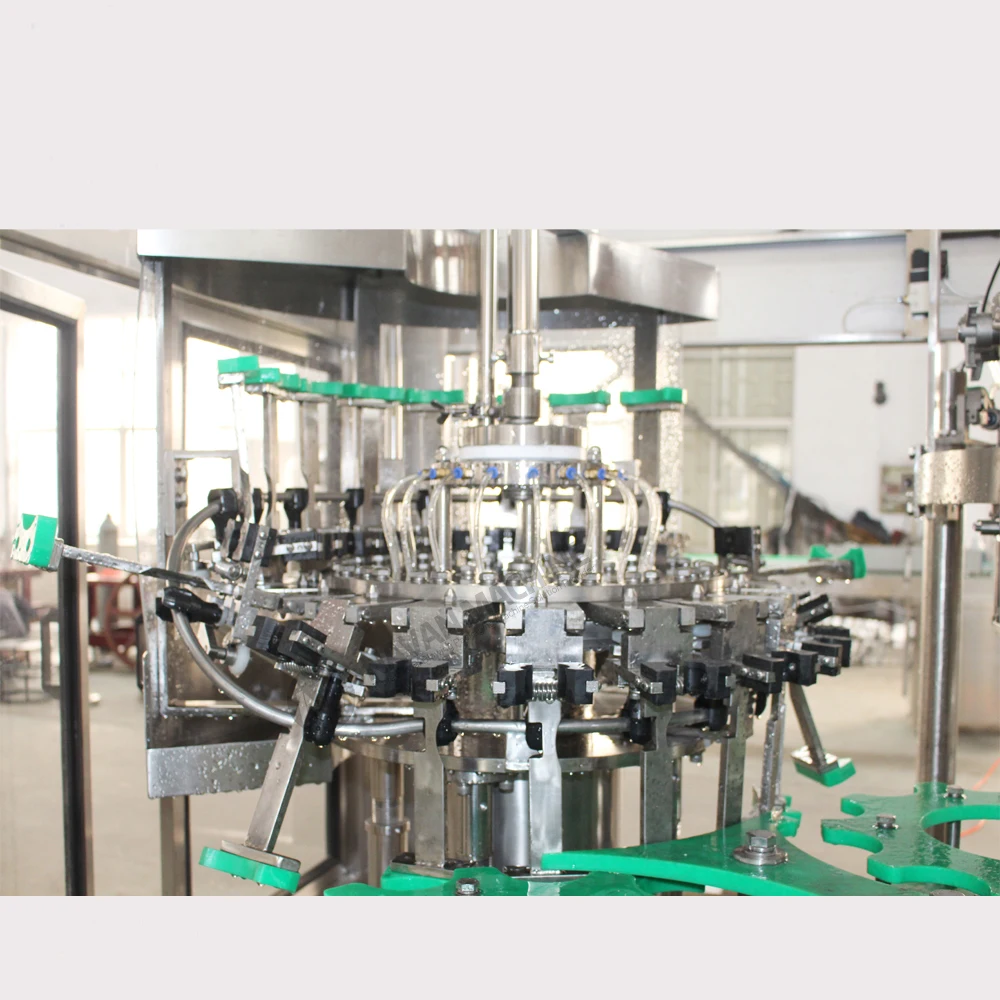

Washing Parts

- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
Factory Direct Sales Fully Automatic 3-in-1 Glass Bottle Beer Filling Machine manufacture

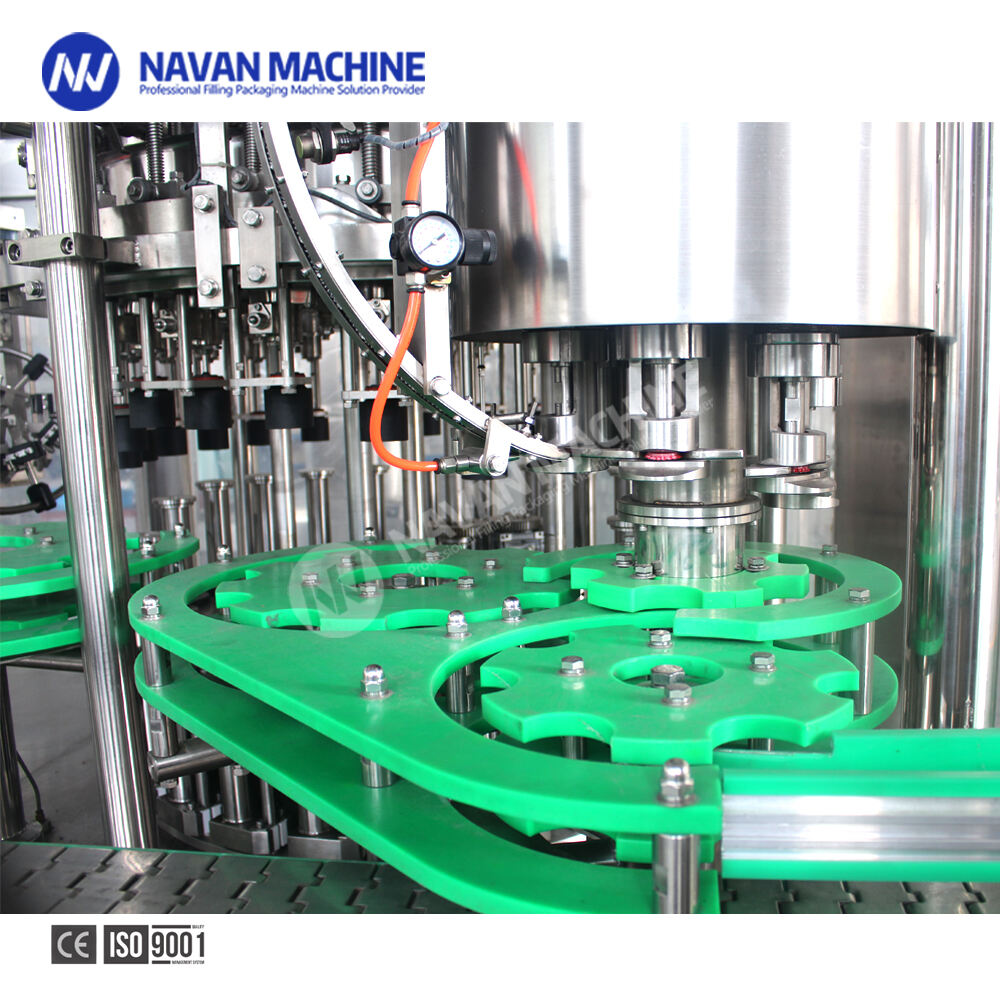

Filling Parts

- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
Factory Direct Sales Fully Automatic 3-in-1 Glass Bottle Beer Filling Machine factory

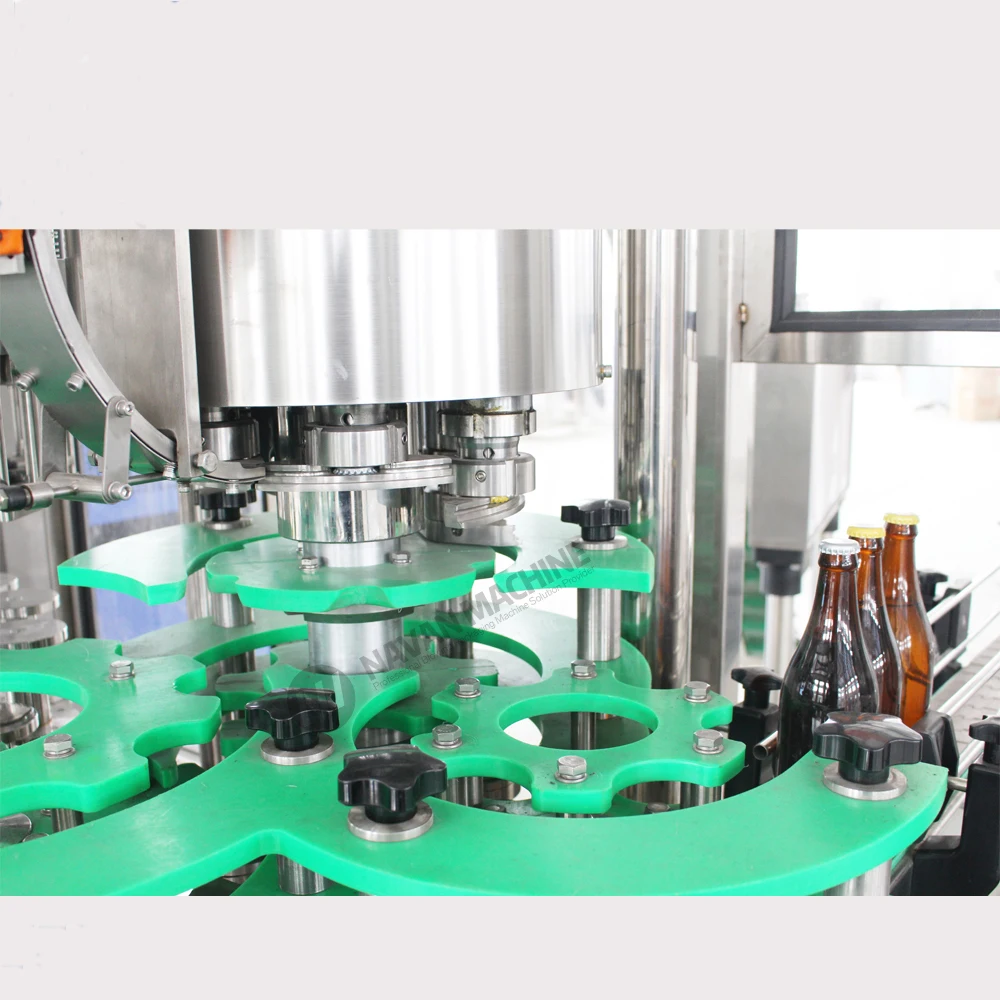

Capping Parts.

The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping
head
.
Product paramenters
Model
NPXGF14-12-5
NPXGF18-18-6
NPXGF24-24-8
NPXGF32-32-10
NPXGF40-40-10
NPXGF50-50-12
Capacity(Bottle /Hour 330ml)
1000-1500
3000-5000
6000-8000
8000-10000
12000-15000
15000-18000
Suitable bottle specification
Volume=200-1500ml
Diameter φ=50-100mm
Bottle height H=160 ~340mm
Rinsing Water pressure (MPa)
0.25 ~ 0.3
Filling pressure (MPa)
0.15~ 0.5
Main Power(kw)
2.2
3
4
7.5
7.5
11
Overall dimensions (mm)
2700*1500*2300
3012*2012*3260
3280*2420*3200
4430*2880*3200
4650*3200*3200
4987*3846* 3200
Weight (kg)
2800
3800
5000
6800
8800
11000
All machines could be customized , we could design and produce machines according to your request.
