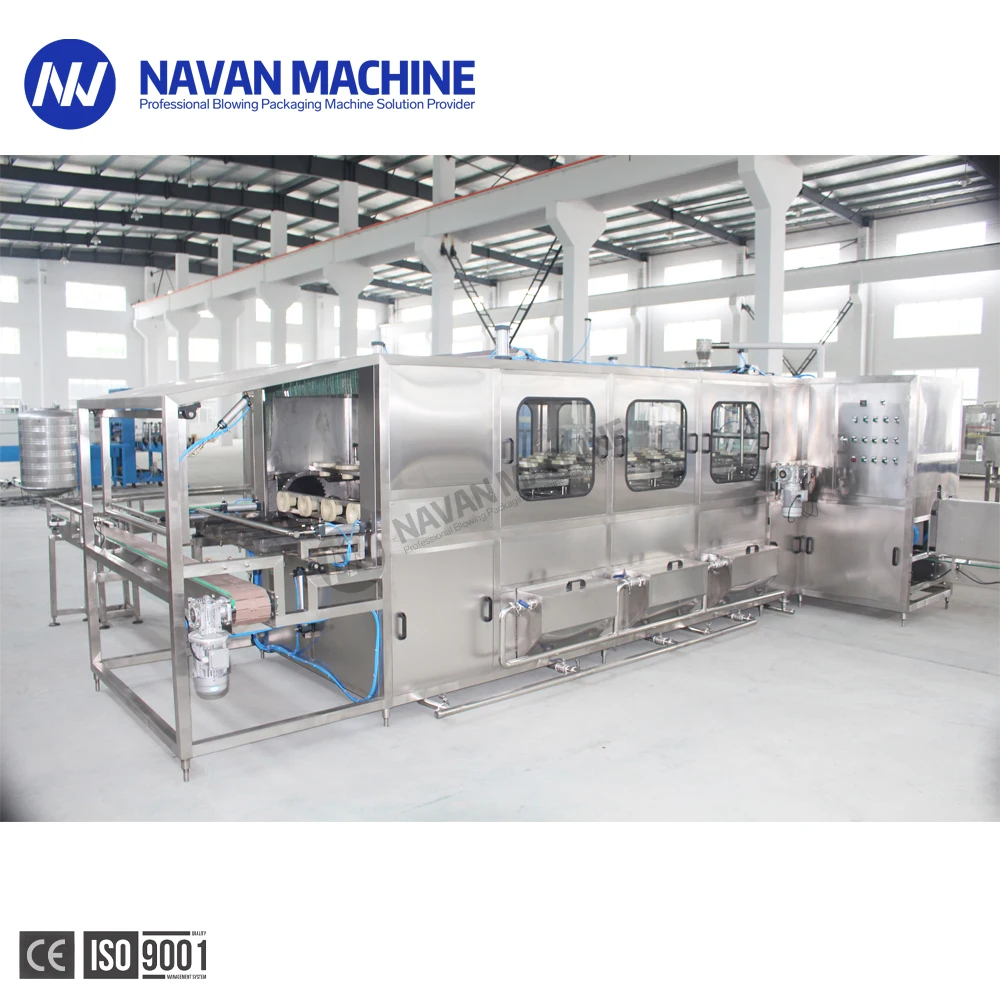

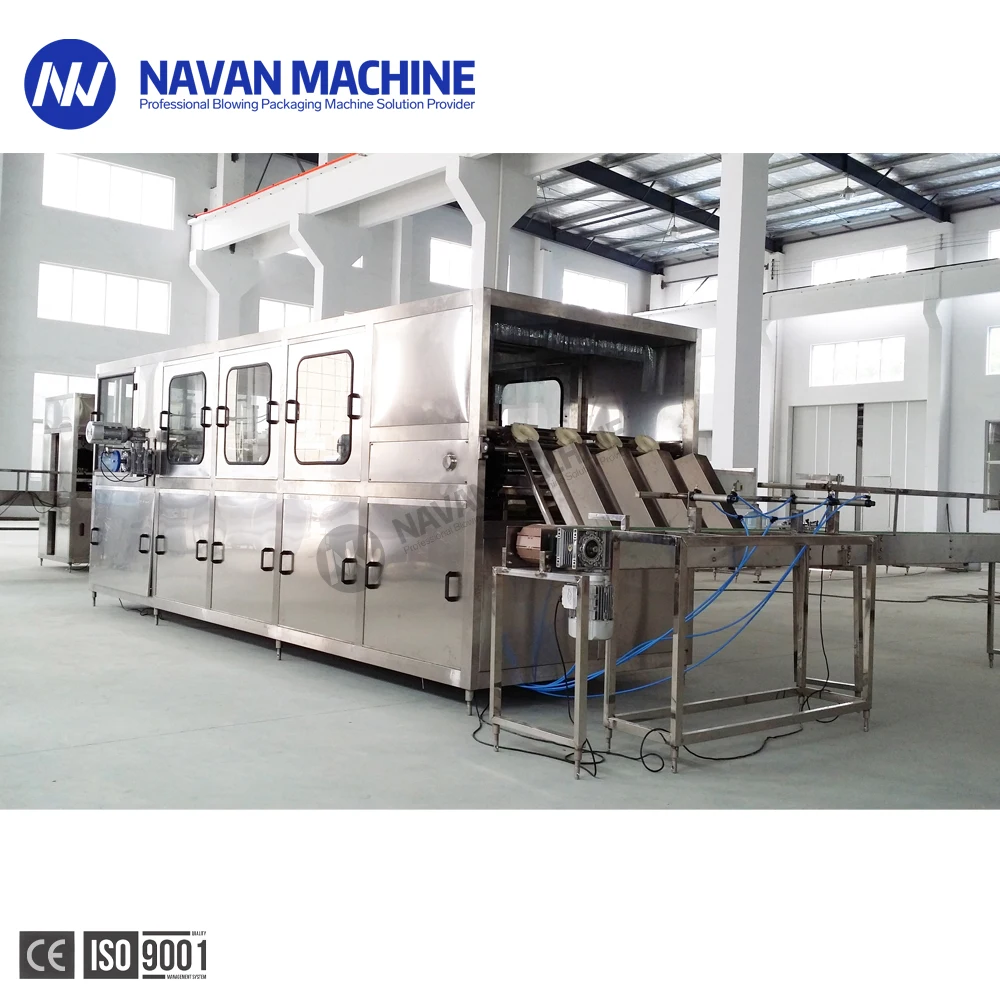

Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour

Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour

This high-capacity water filling machine delivers outstanding performance for your bottled water production needs, efficiently processing 600 bottles per hour. Designed specifically for pure still water, it handles both barrel and standard bottle formats with precision and reliability. The fully automatic operation minimizes labor costs while ensuring consistent fill levels and maintaining strict hygiene standards. Built with food-grade stainless steel components, this machine features advanced PLC control systems for accurate filling and user-friendly operation. Its compact footprint and energy-efficient design make it ideal for small to medium-sized water bottling facilities. The system includes automatic bottle feeding, washing, filling, and capping functions, all integrated into one streamlined unit. With minimal maintenance requirements and easy cleaning protocols, this filling machine offers the perfect balance of productivity and operational efficiency for your water bottling business.

Get a Quote
  • Description

+8615601563990
[email protected]
Inquiry
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour factory
NAVAN Machine.
We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China. Our products include:Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), Barreled filling line(3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines. Navan Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training.
Products Description

Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the speed of 600 Bottles Per Hour

Success in water beverage production line requires focus on maximum output and efficiency, with commitment to hygiene, food safety and cost optimisation. Whether you're producing still or sparkling water, our unmatched expertise
helps you achieve more with extensive technical knowledge and packaging capabilities.

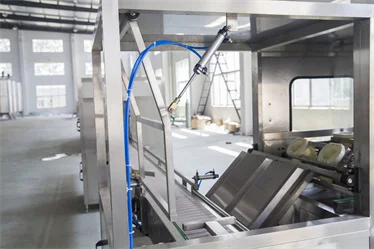

Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour details
Boosting speed and hygiene ,High Productivity china supply water filling capping machine high efficiency:
1 - Water packing solutions to reduce your total cost of ownership
2 - Higher speeds with gentler handling
3 - Hygienic production for top quality water
4 - Reduced consumption with more efficient resources use
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour factory
Product Paramenters
Model
QGF-120
QGF-300
QGF-450
QGF-600
QGF-900
QGF-1200
Application
Mineral water, Distilled water and Purified water and so on
No. of Filling heads
1
2
3
4
6
8
Production Capacity(B/H)
100BPH
300BPH
450BPH
600BPH
900BPH
1200BPH
Filling capacity(L）
10~20L
≤±5mm(liquid level)
≤±5mm(liquid level)
≤±5mm(liquid level)
Filling temperature
0~30℃ or customzied
User Ambient Conditions
Temperature:10~40℃; Humidity: No dew

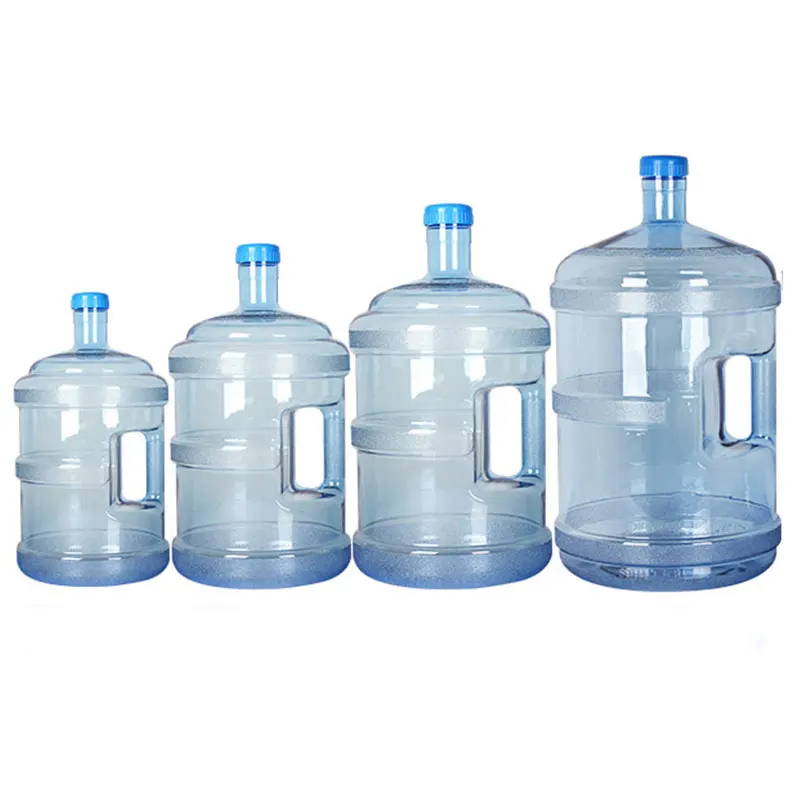

Barrel specification
Ф270X490mm
Machine type
Linear type
Linear type
Linear type
Linear type
Linear type
Rotary type
Machine material
Food stage SS304 OR SS316
Air source pressure
0.4~0.6Mpa
Air consumption(m3/min)
0.35
0.5
0.5
0.6
0.6
0.6
Control system
SIMENS PLC+ TOUCH SCREEN
Features
No Bottle No Filling No Bottle No Capping
Main Power
2.9kw
3.5kw
4.3kw
6.2kw
8.7kw
9.5kw
Power Supply
Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement
Overall dimensions (mm)
2600×650×1550
3900×1500×1700
3900×1775×1700
3900×2050×1700
4650x3200x3200
4987x3846x3200
Weight (kg)
800
1500
2000
2500
3000
3500
All machines could be customized , we could design design and produce machines according to your request.
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour manufacture

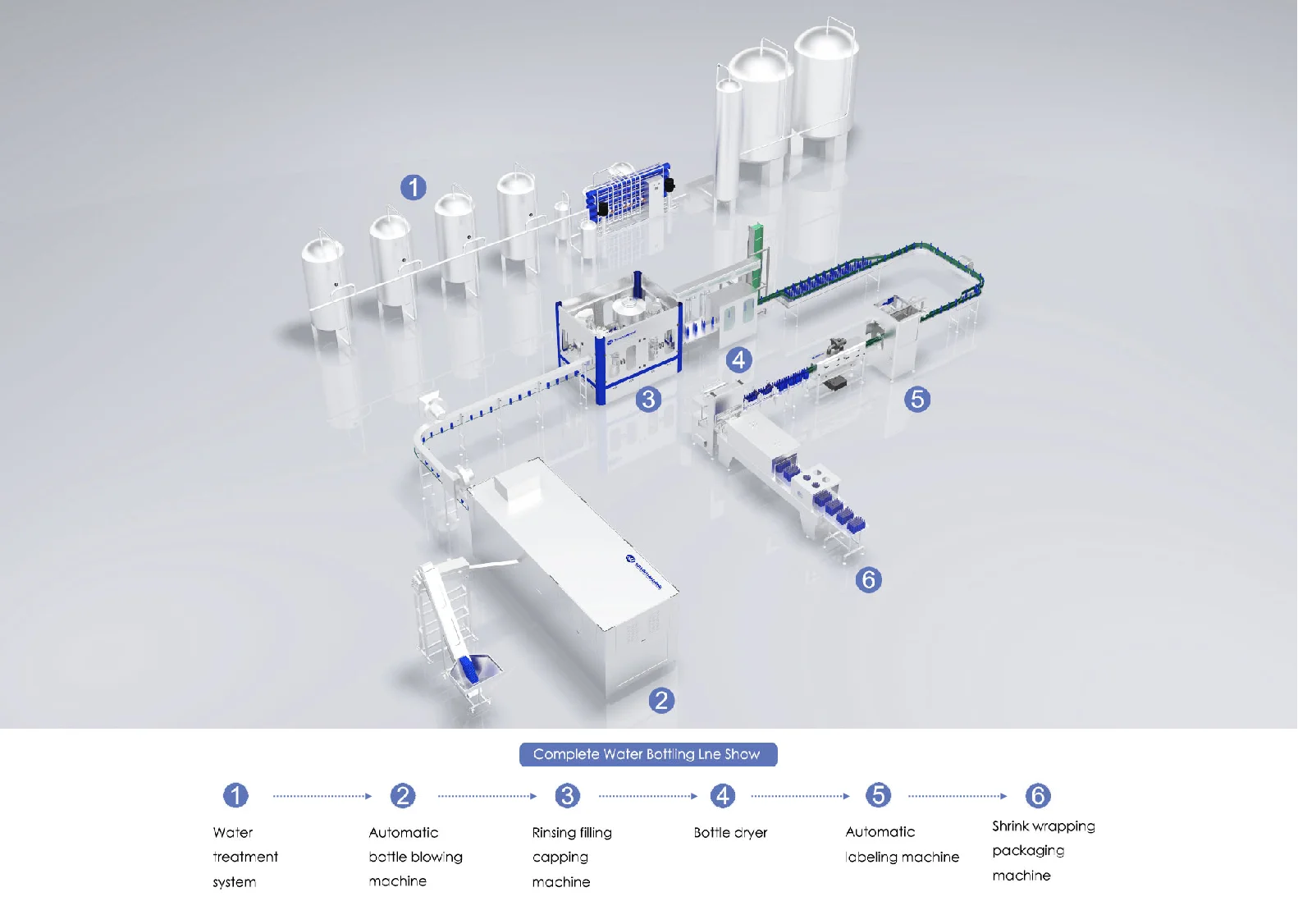

NAVAN Machine RO Water Treatment System

1.Raw water tank + Raw water pump.
2.Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter.
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour manufacture

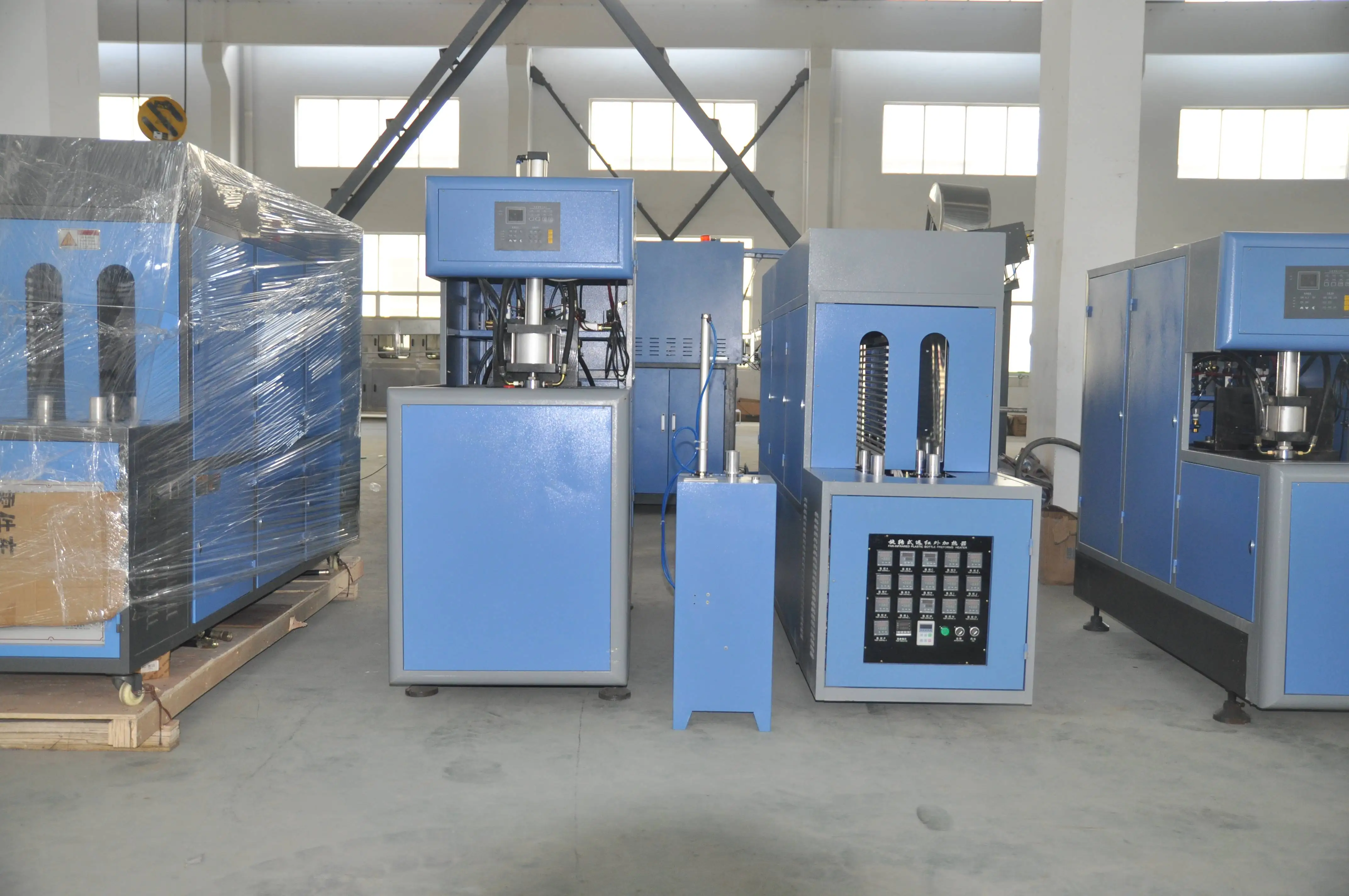

NAVAN Machine Bottle Blow Moulding Machine.

1.Production flexibility: Up to 200 different equipment size configurations from one platform.
2.Efficient consumption: Up to 45 % less electricity and 35 % less compressed air.
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour factory

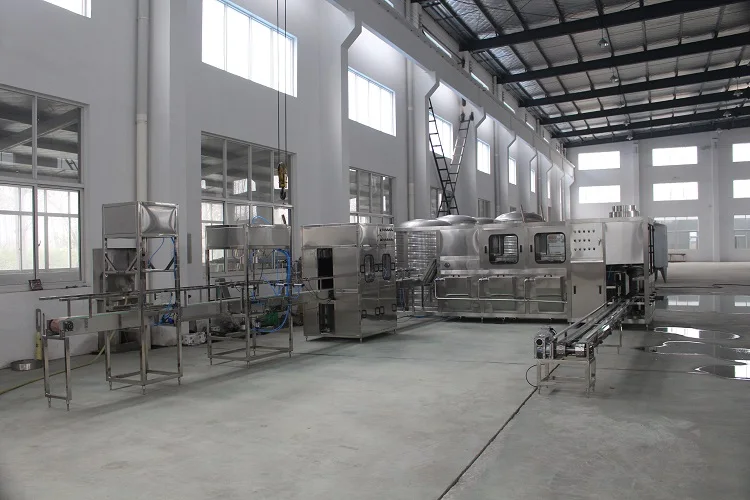

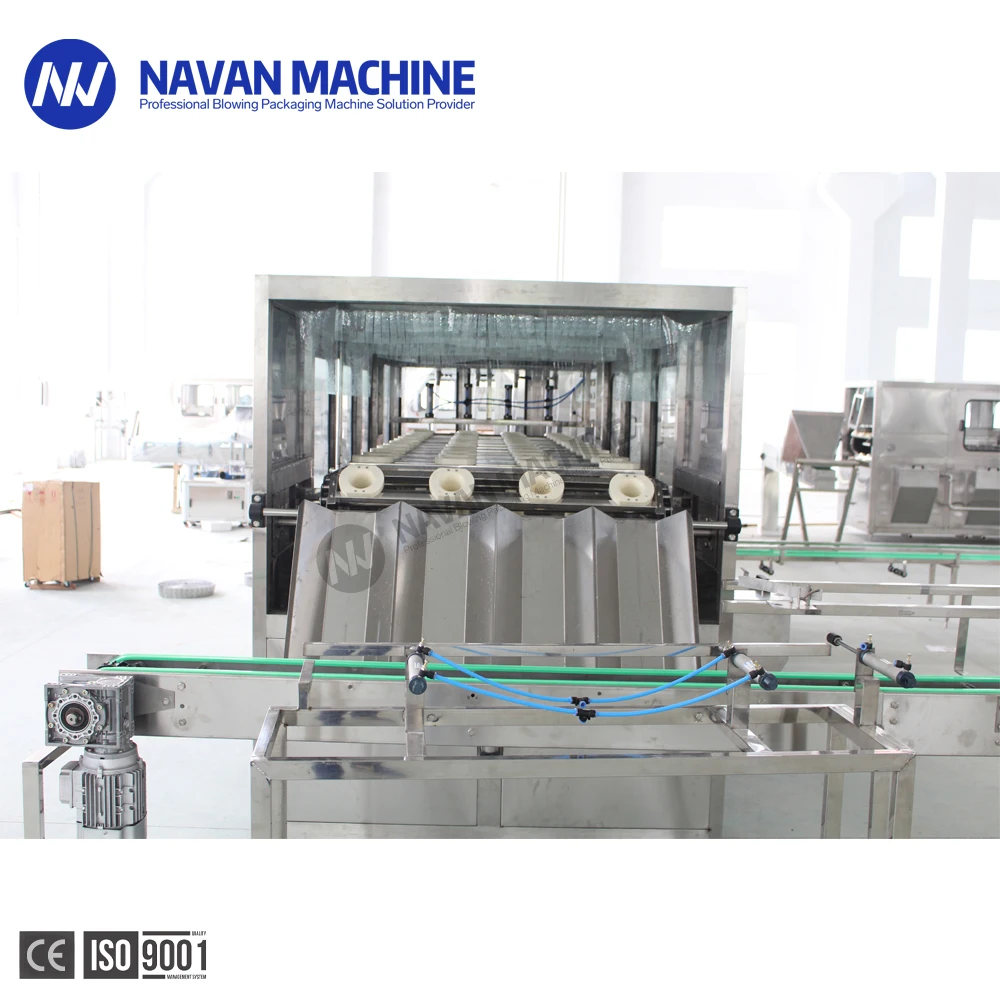

Bottle Infeed
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour manufacture

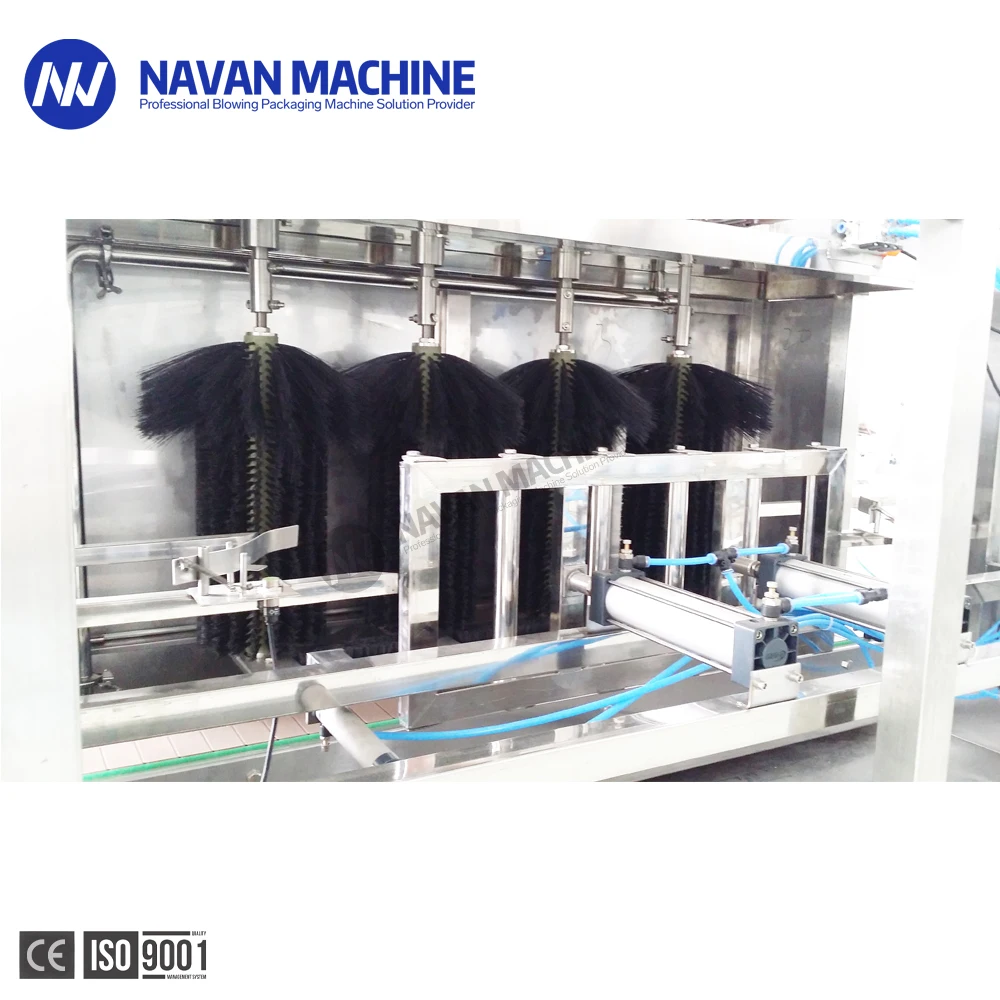

Our Busher
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour details

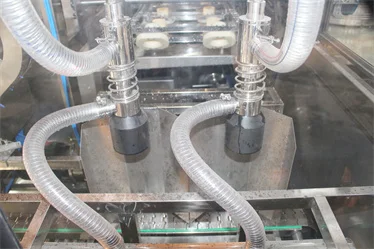

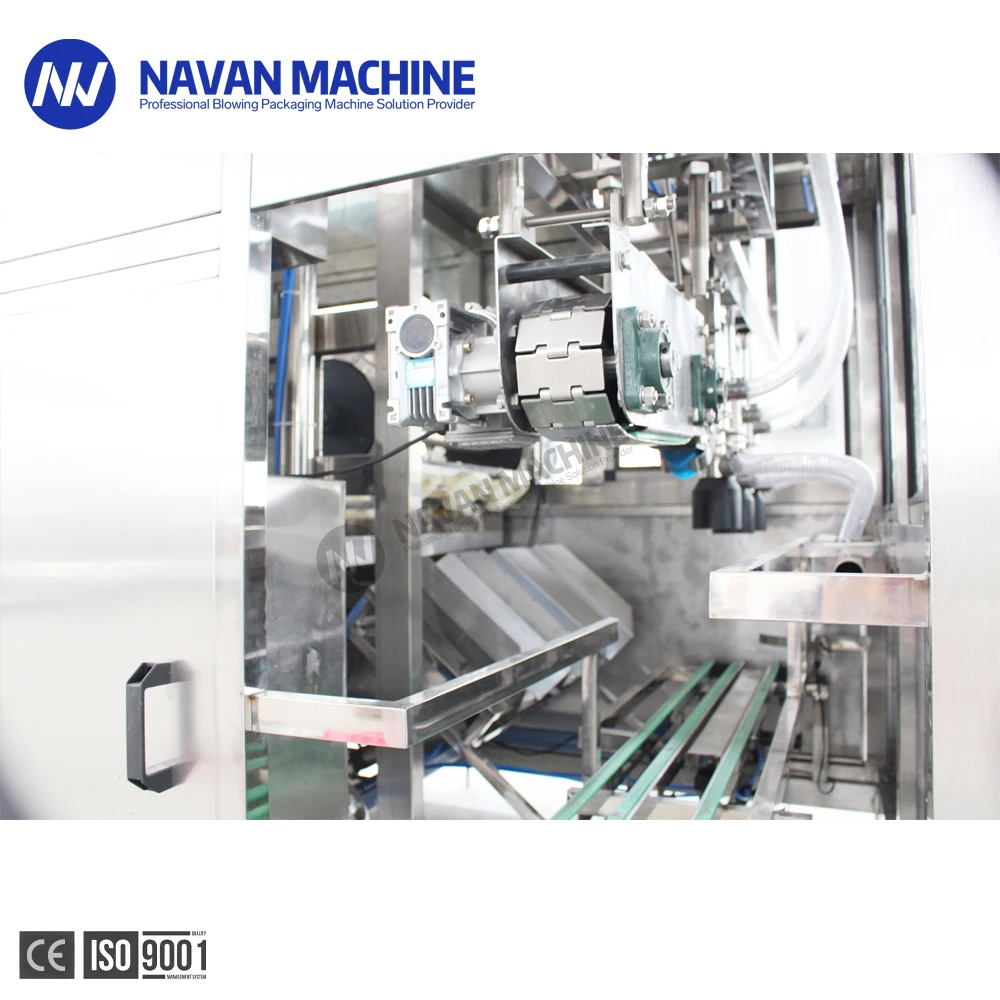

Filler
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour details

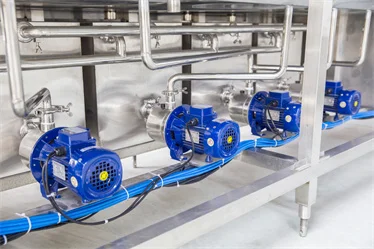

Motor
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour details

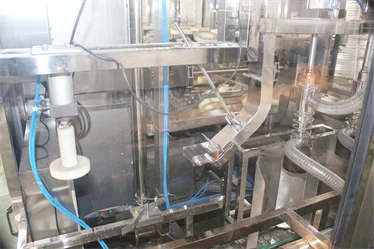

Capper
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour supplier

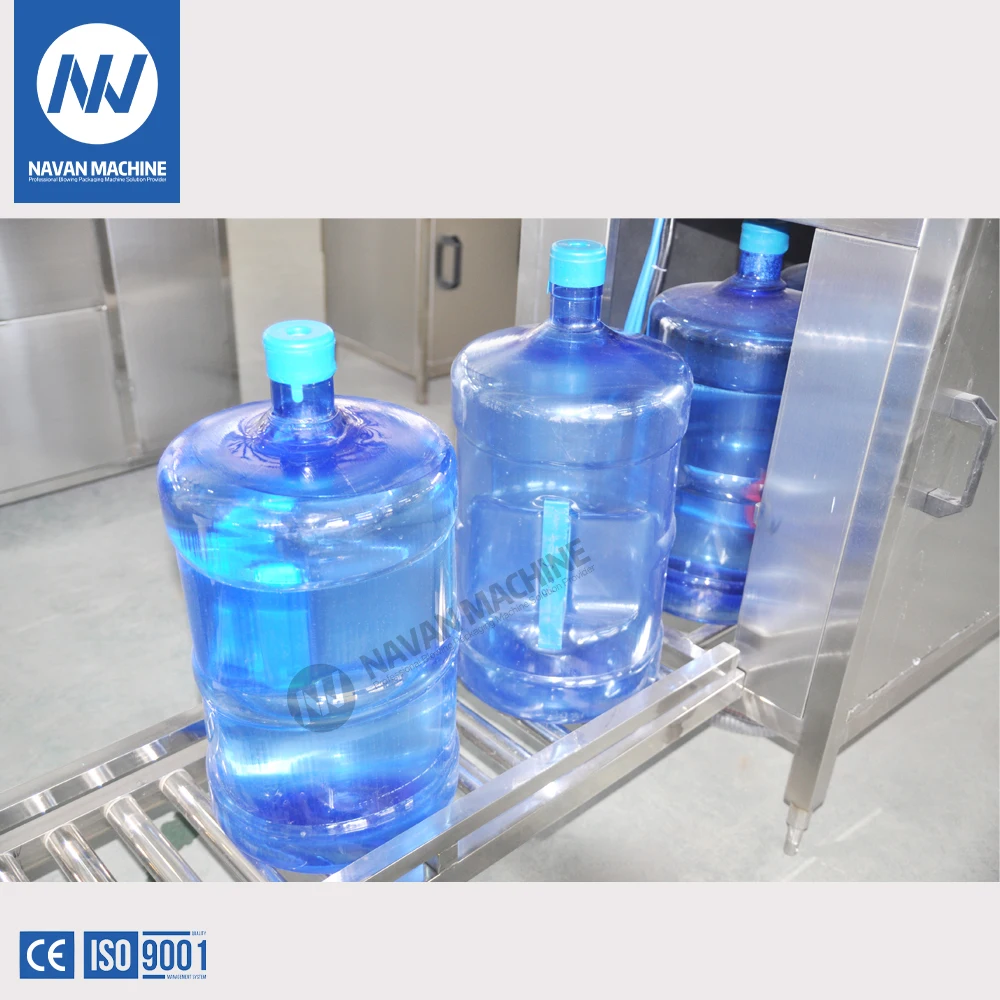

Finished product display
Why Choose Us
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour supplier
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour factory
Certificates
Fully Automatic Barrel Bottled Pure Still Drinking Water Filling Machine With the Speed of 600 Bottles Per Hour factory
We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature techniquesand first-class quality.
