This advanced automatic liquid bottling plant offers a complete solution for mineral and pure water packaging operations. Designed for high-efficiency production, the system seamlessly integrates filling, capping, and packaging functions for small plastic bottles. The precision-engineered filling mechanism ensures accurate volume control and minimal spillage, while the automated capping system guarantees secure seals for product freshness and safety. Capable of handling various bottle sizes, this versatile machine delivers consistent performance with minimal operator intervention. Its compact footprint makes it ideal for small to medium-sized facilities, while maintaining impressive throughput rates. Built with food-grade stainless steel and featuring user-friendly controls, this equipment meets strict hygiene standards and offers easy maintenance. Perfect for beverage manufacturers, water bottling companies, and similar industries seeking reliable, automated packaging solutions.

Get a Quote
  • Description

+8615601563990
[email protected]
Inquiry
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles factory

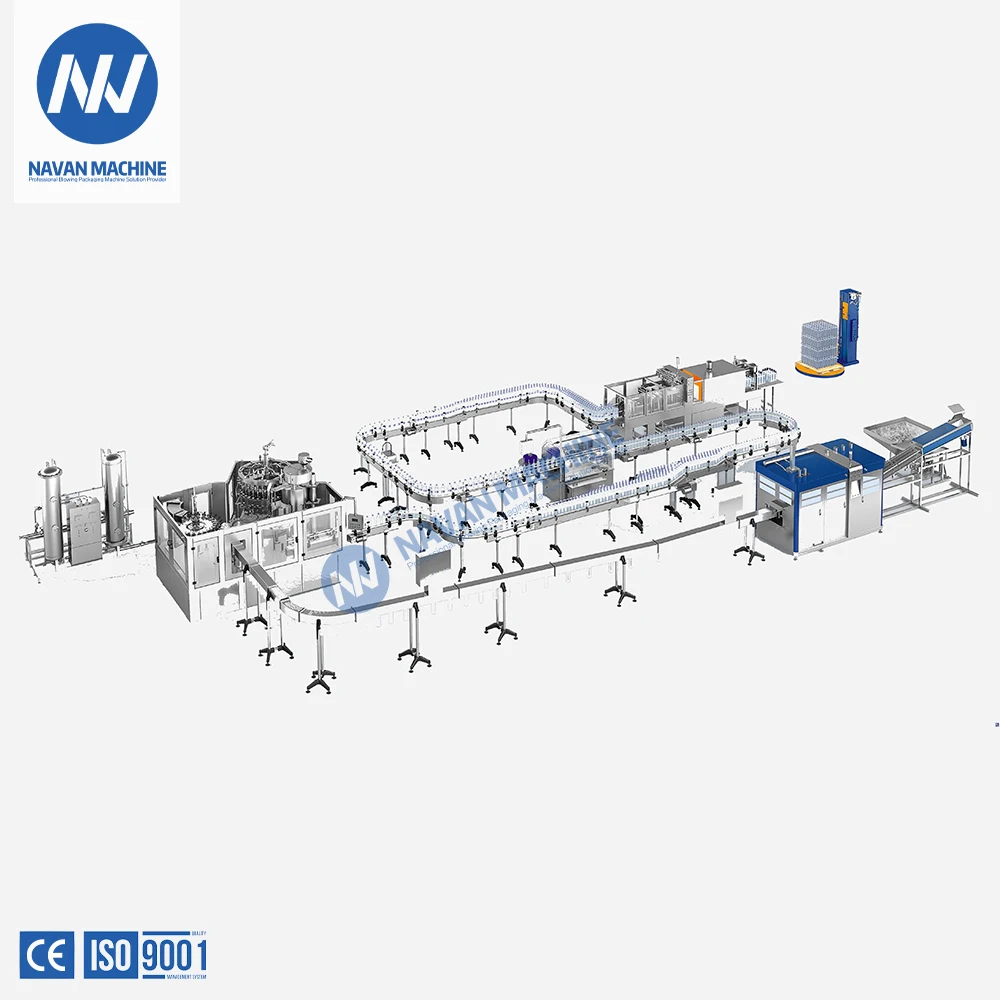

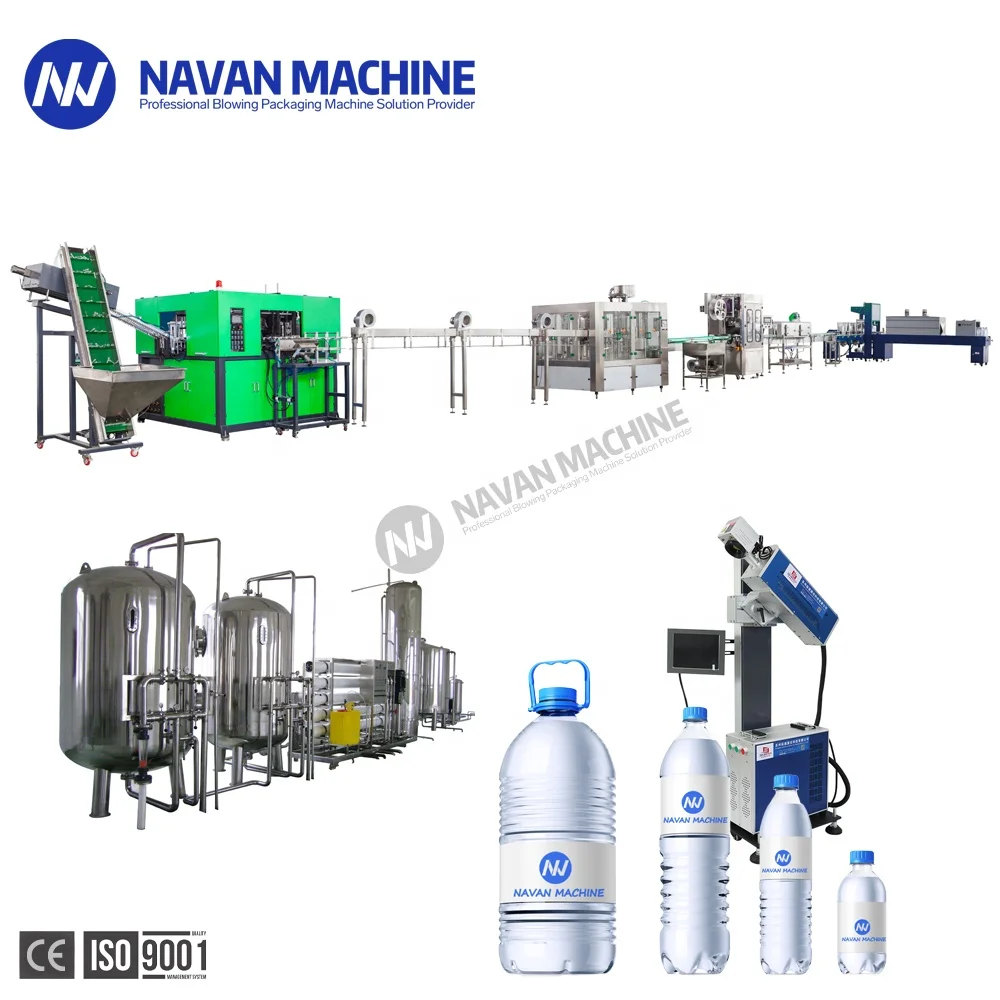

NAVAN Water Production Line includes:
1.Water treatment system.
2.Automatic bottle blowing machine.
3.Rinsing filling capping machine.
4.Bottle dryer.
5.Automatic labeling machine.
6.Shrink wrapping packaging machine.
Products Description

Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles

Success in water beverage production line requires focus on maximum output and efficiency, with commitment to hygiene, food safety and cost optimisation. Whether you're producing still or sparkling water, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities.
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles factory
Boosting speed and hygiene ,High Productivity china supply water filling capping machine high efficiency:
1 - Water packing solutions to reduce your total cost of ownership
2 - Higher speeds with gentler handling
3 - Hygienic production for top quality water
4 - Reduced consumption with more efficient resources use
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles supplier

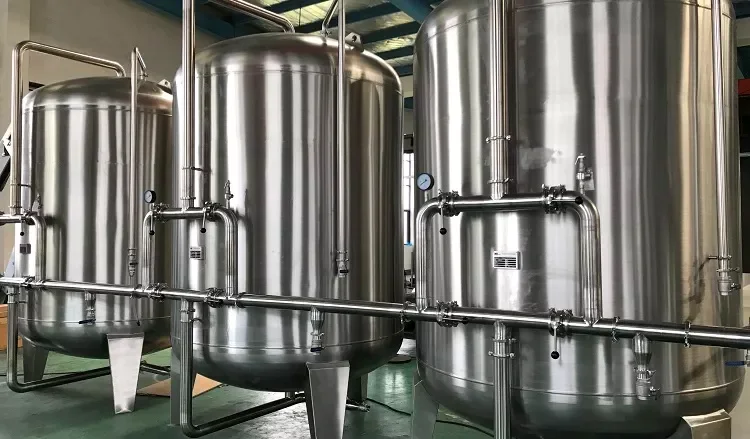

1.NAVAN Machine RO Water Treatment System

Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles supplier

2.Peform

Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles manufacture
3.Bottle infeed
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles factory

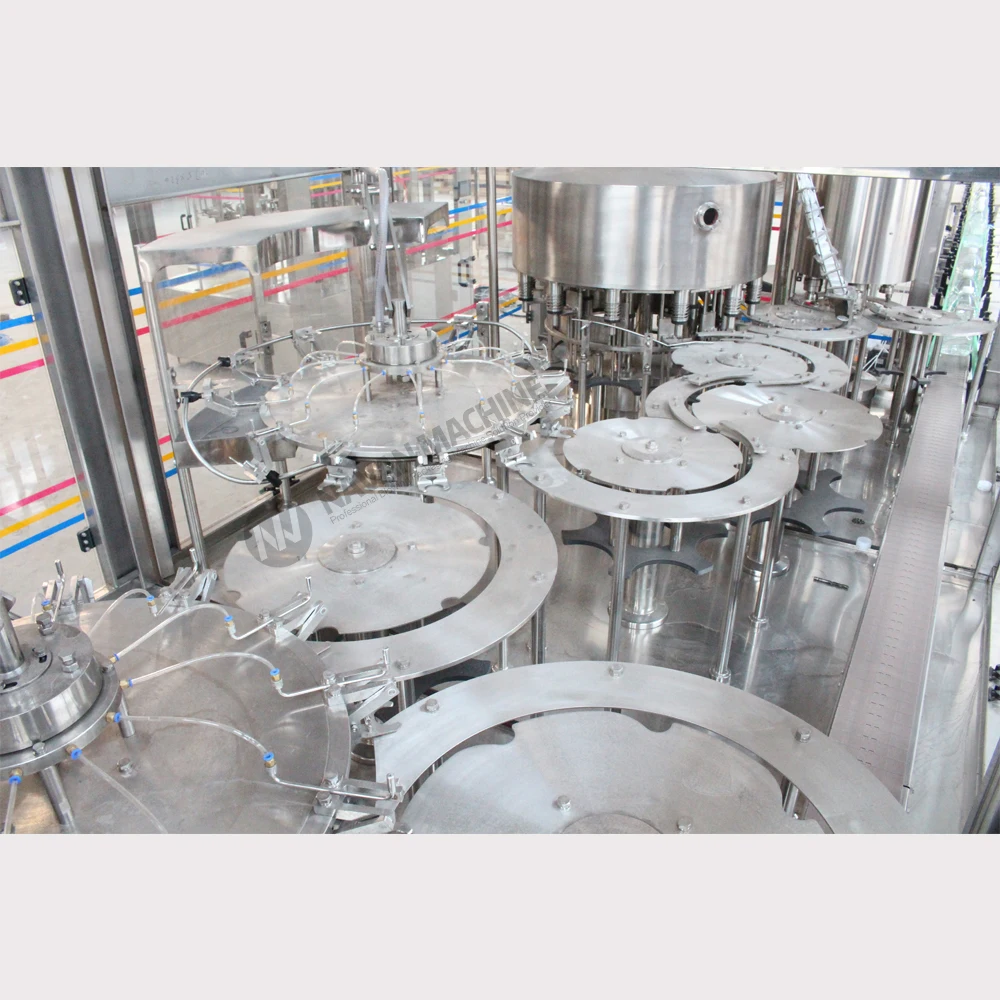

4.Rinser
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles manufacture

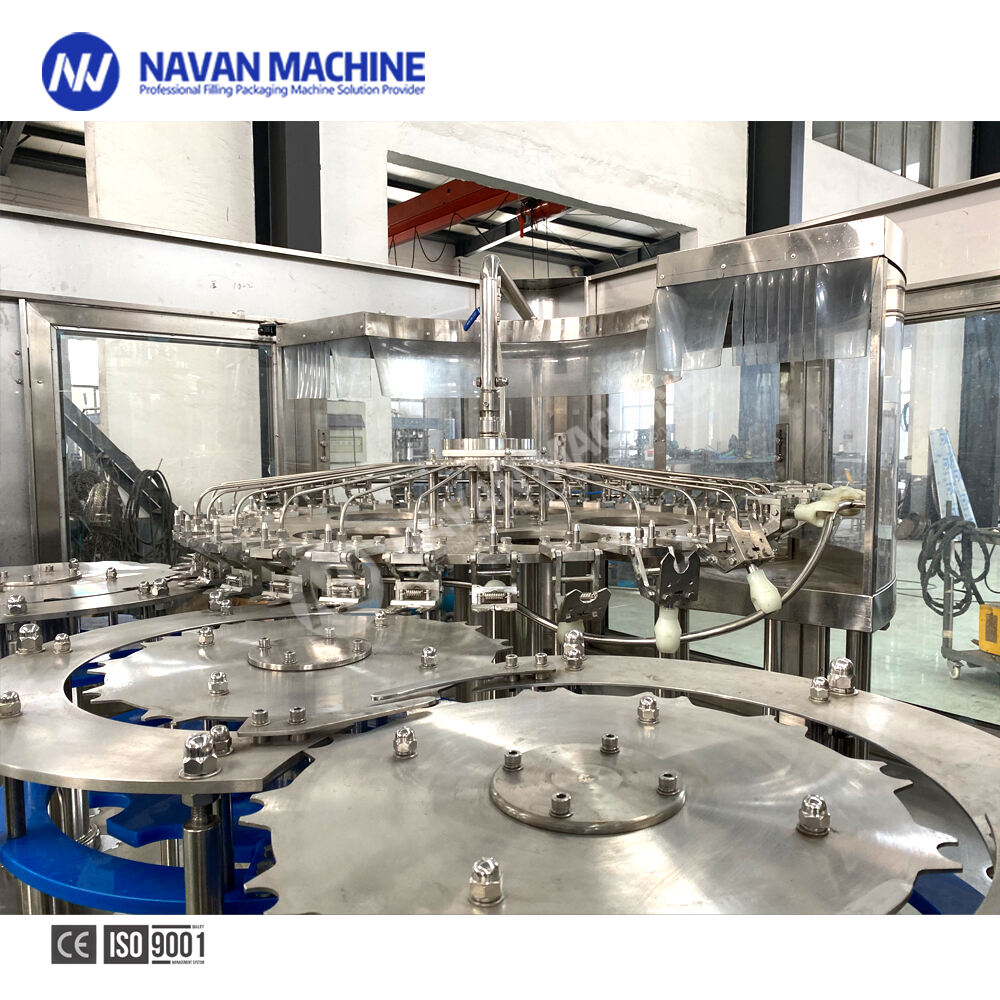

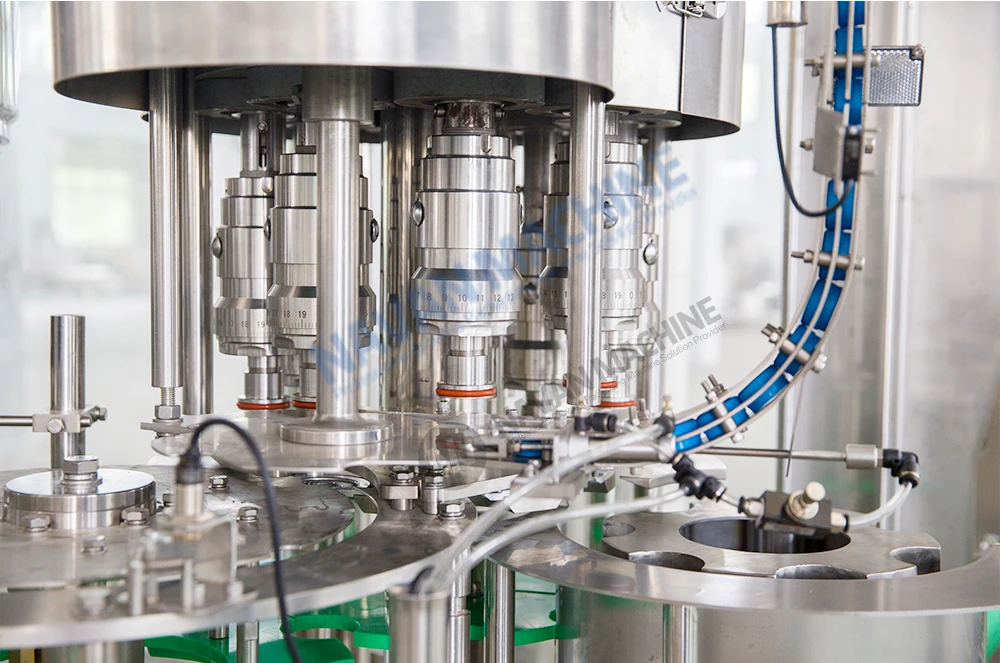

5.Filler
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles details

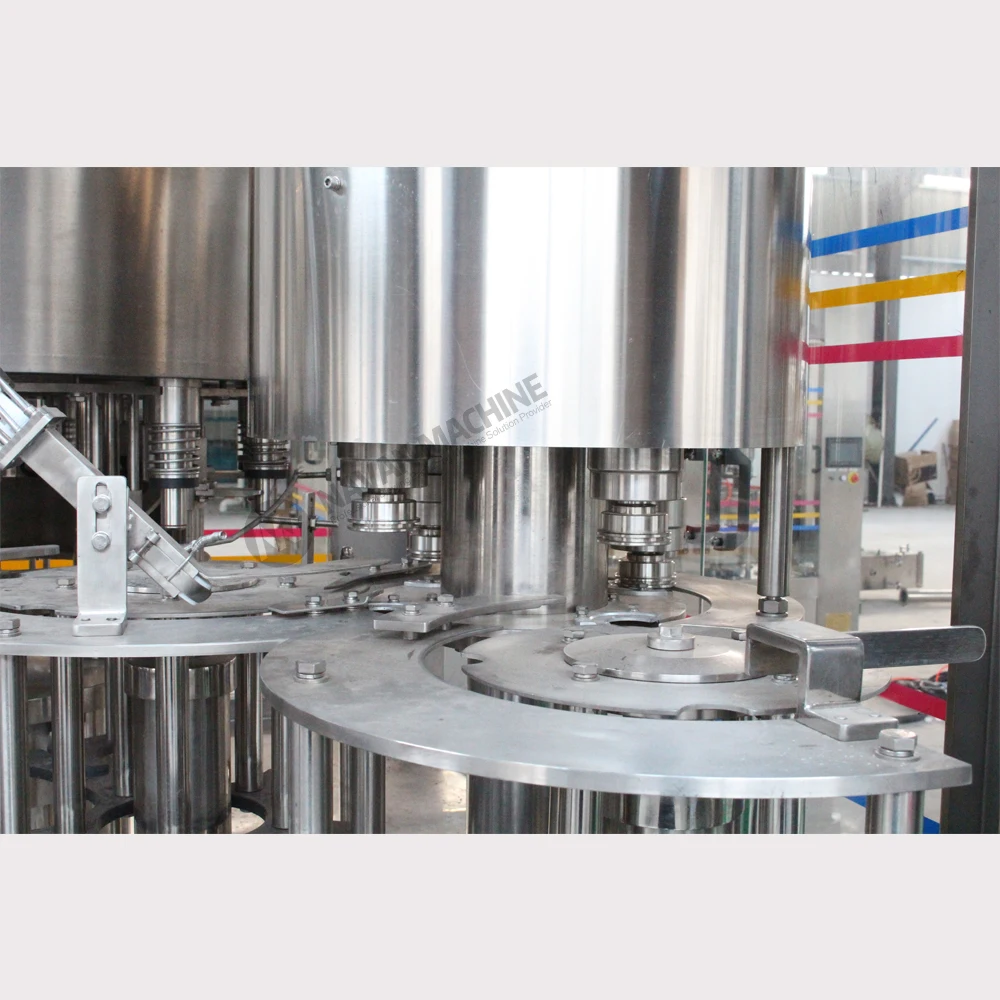

6.Capper
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles factory

7.Labeling Machine

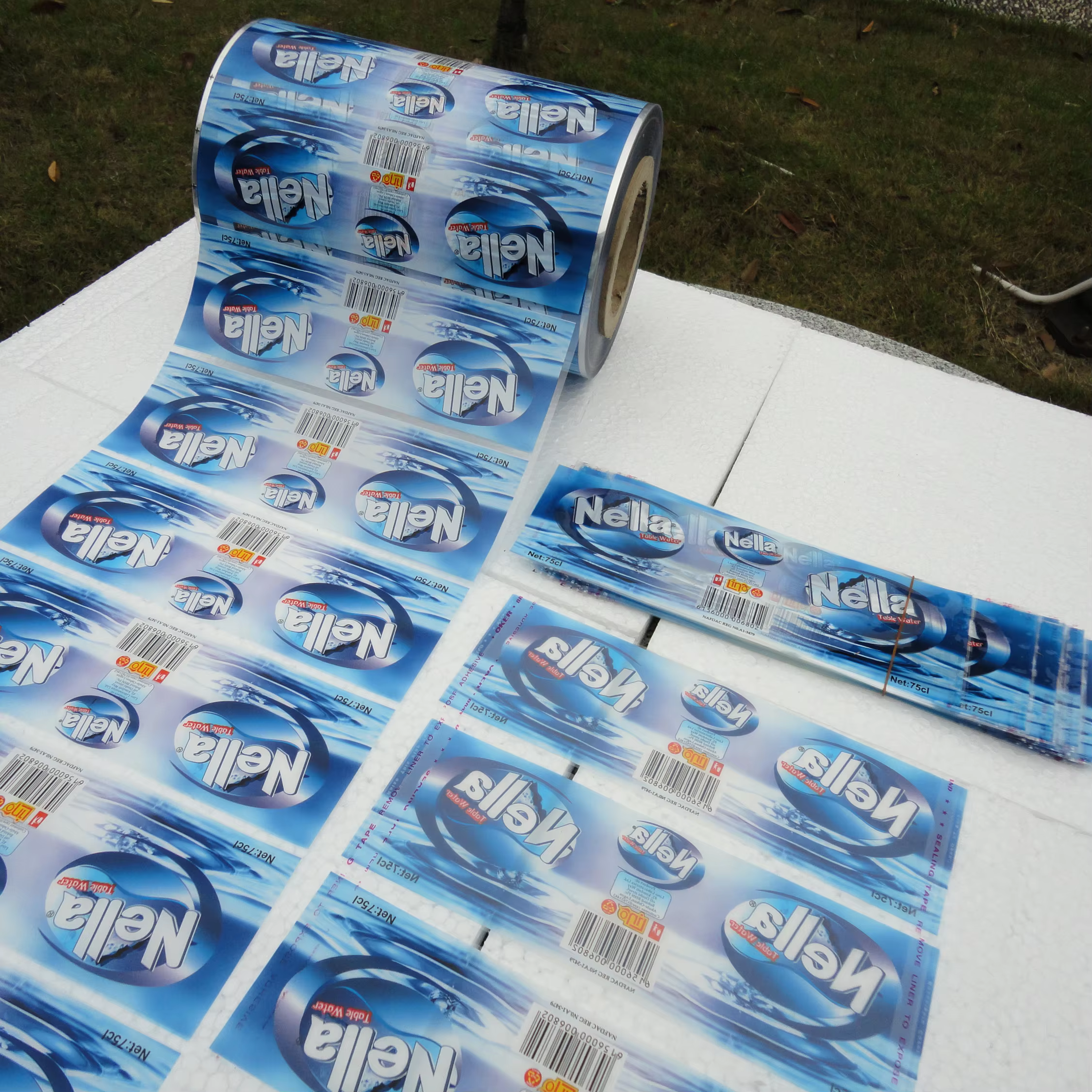

1.OPP Rotary Labeling Machine

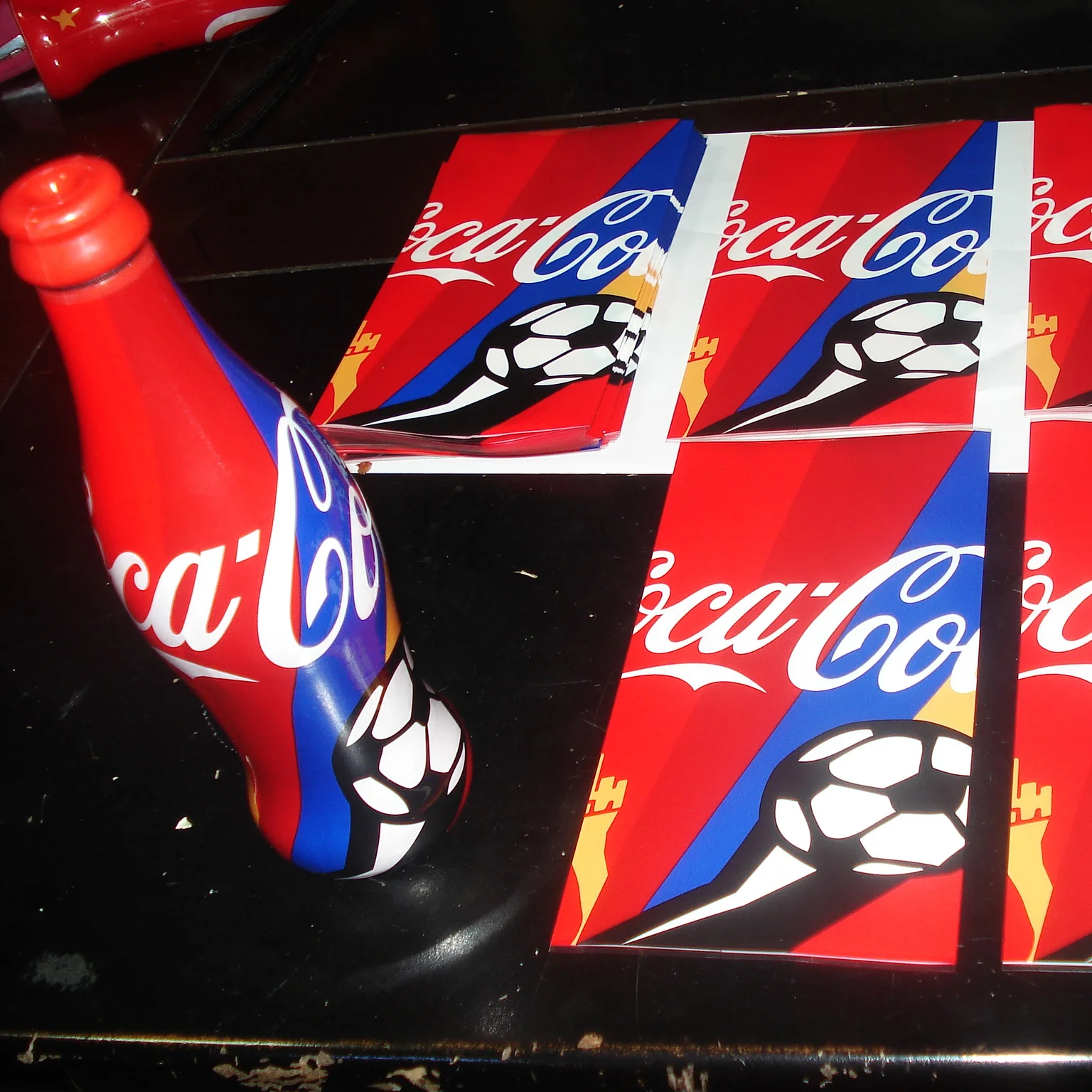

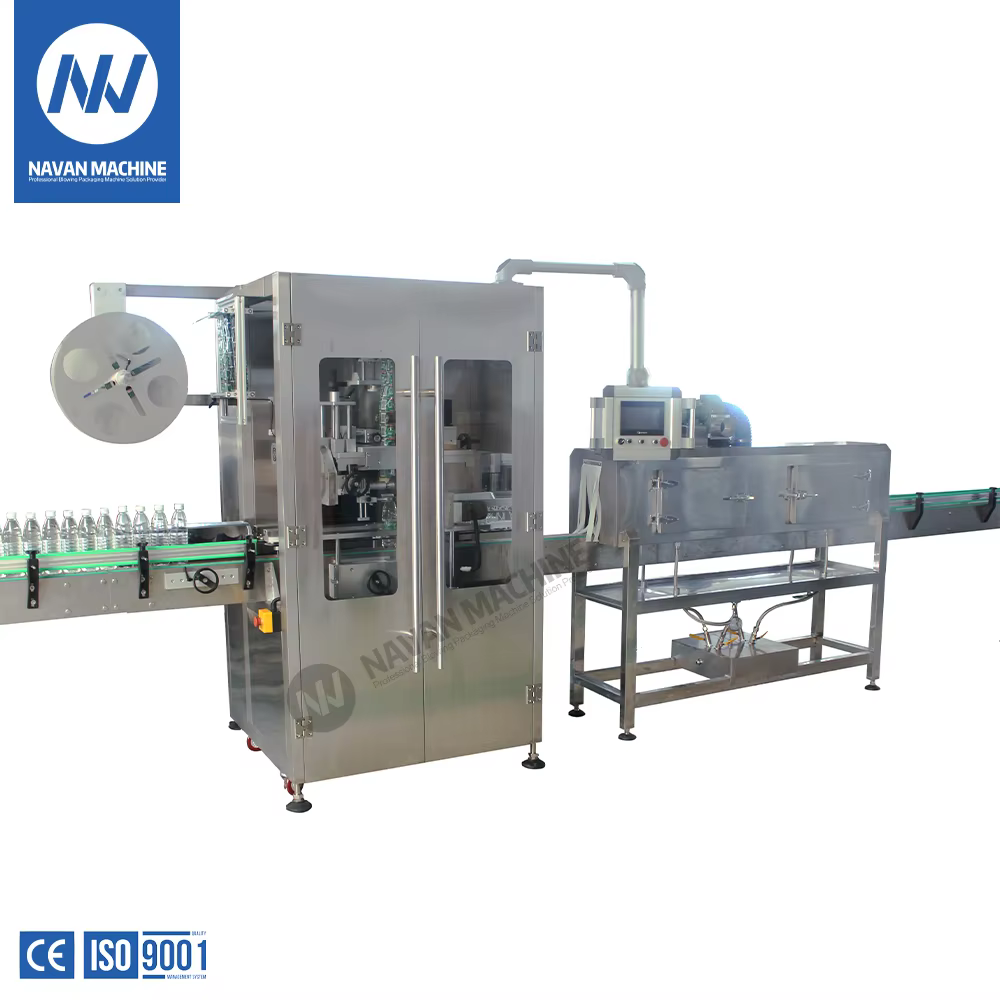

2.Shrink Sleeve Labeling Machine
3.Adhesive Labeling Mahchine
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles factoryAutomatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles details
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles details
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles supplier

8.Packaging Machine

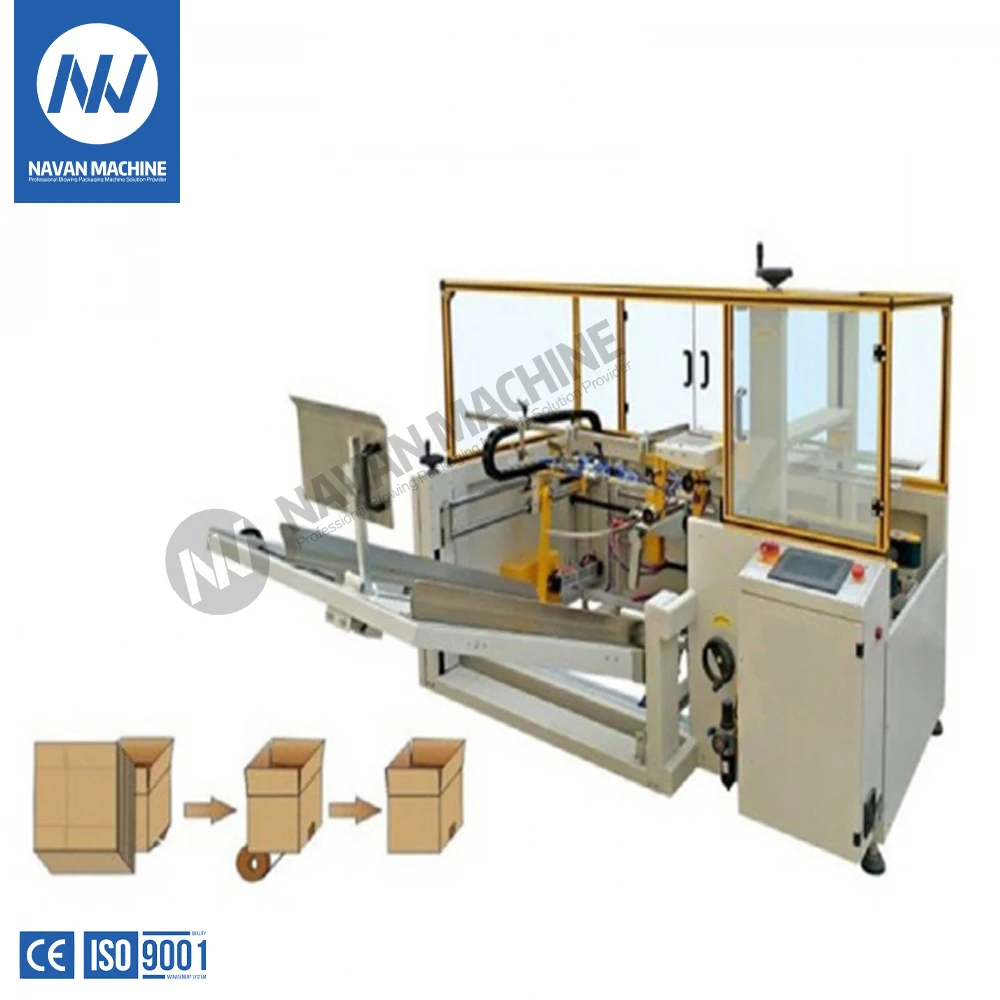

1.Automatic Carton Packing With Hotllng glue
2.L Type Film Wrapping Packing Machine
3.Llnear Type Film Wrapping Packing Machine
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles supplier
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles supplier

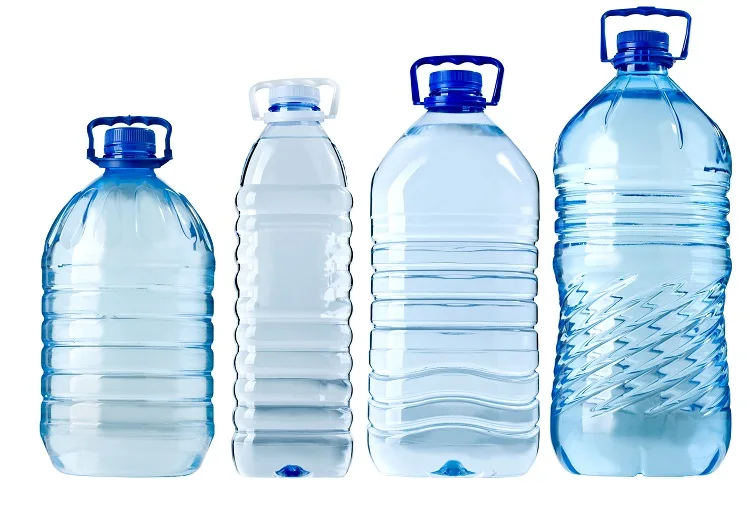

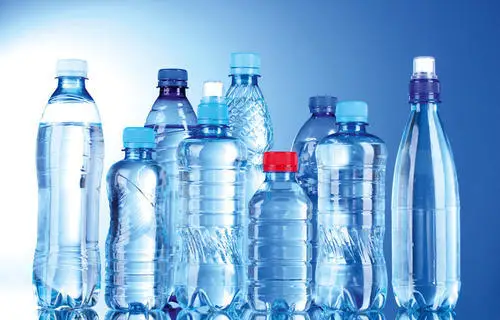

Finished Product Display
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles supplier
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles manufacture
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles supplier
Product Paramenters
Model
CGF8-8-3/4
CGF12-12-5/6
CGF18-18-6
CGF24-24-8
Application
Spring water / mineral water / pure water / non-gas wine drink and so on
No. of Rinsing/Filling/Capping
8-8-3/4
12-12-5/6
18-18-6
24-24-8
Production Capacity(500ml)
2000BPH
4000BPH
6000-7000BPH
10000~12000BPH
Filling precision
≤±5mm(liquid level)
≤±5mm(liquid level)
≤±5mm(liquid level)
≤±5mm(liquid level)
User Ambient Conditions
Temperature:10~40℃; Humidity: No dew
Suitable bottle specification
Volume=100-2000ml
Diameter φ=50-100mm
Bottle height H=150 ~340mm
Volume=100-2000ml
Diameter φ=50-105
Bottle height H=150 ~340mm
Volume=100-2500ml
Diameter φ=50-115mm
Bottle height H=150 ~350mm
Volume=100-2500ml
Diameter φ=50-115
Bottle height H=150 ~350mm
Bottle type
Plastic bottle / PET Bottle
Bottle neck/Cap Style
Plastic Screw Cap φ=20-50mm
Machine material
Food stage SS304 OR SS316
Air source pressure
0.5~0.6Mpa
Filling way/principle
Gravity filling method
Control system
SIMENS PLC+ TOUCH SCREEN
Features
No Bottle No Filling No Bottle No Capping
Main Power
1.9kw
3.5kw
4.0kw
4.8kw
Power Supply
Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement
Overall dimensions (mm)
1900*1420*2000
2050*1800*2400
2580*2100*2200
2780*2200*2200
Weight (kg)
1500
2500
3500
4500
All machines could be customized , we could design design and produce machines according to your request.
Best Service
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles manufacture
NAVAN Machine Services Online helps you:
1 - Machine running video
2 - Watch our factory online
3 - Quick response on technical supports
Recommend Products
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles supplier
Bottle Blowing Machine
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles details
Water Treatment System
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles details
Water Filling Machine
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles supplier
Bottle Labeling Machine
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles manufacture
Bottle Packing Machine.
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles details
Beverage Solution
Why Choose Us
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles supplier
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles details
Montor Brand
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles details
Customers Vists.
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles details

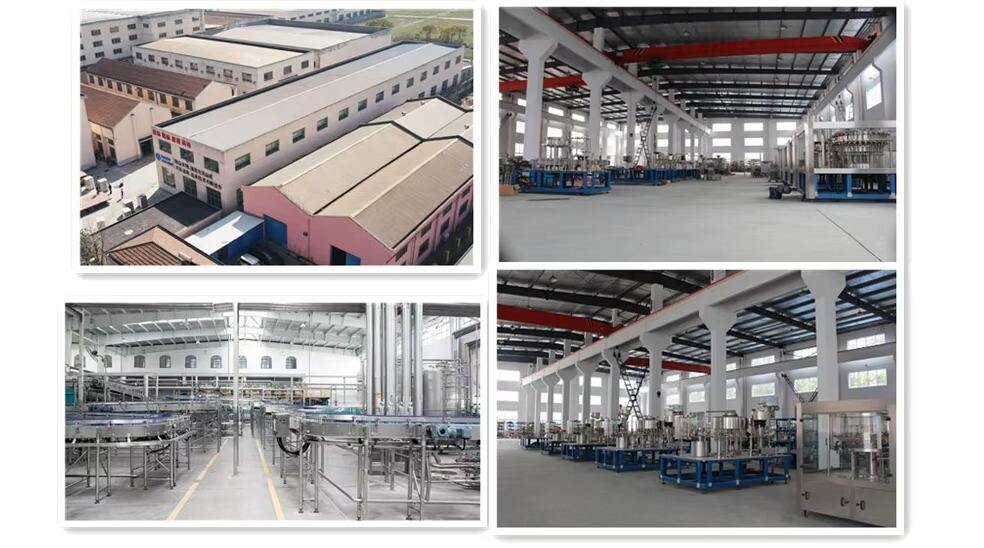

Factory Show
<1> Standardized workshop of total 3,000 square meters.
<2>The equipment will be tested and run for 24 hours before leaving thefactory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
<3>Sufficient stockof spare parts ensures the timely delivery and supply of spare parts.
<4>Engineers are experienced. We can produce different products with different capacities and work out reasonable flow chart as per customers’ requirements to save space.
<5>Professional installation team who can speak fluent English can help customers make benefits in the shortest time.
Automatic Liquid Bottling Plant/ Mineral Pure Water Filling Capping and Packaging Machine With Small Plastic Bottles details
Certificates.
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS-COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration,etc.
FAQ
Q 1 When can I get installation from you? how much the cost?
When you finish the preparation conditions(water
resource,electricity,air supply,production materials) according to our designed layout , we will dispatch engineer to you.
Inspect and improve connection jobs together with your team .
 Guide your staff to operate machines , and explain how to operate and maintain machines .
 Collected your your comments on our machines , we will send feedback to our technical team to improve our machines continuously.
The customer should be responsible for the room, meals and board and the two-way air tickets and visa
and fee as well the allowance 100~200 USD per day for each person. And should be also responsible for the engineer’s personal safety.
Note: Normally when your preparation is done,you can contact with our sales people and cooperate us to get the visa for
the engineer and our engineer will be there within 15 days more or less .
Q 2 How long time for installation?
According yourmachines order,we will send one or two engineers to your plant,it will take about 15 days to 30 days.
Q 3 How about the spare parts?
We will send one year enough easy broken spare parts together with the machines together when delivery. During the warranty time, we will supply the spare parts with our cost price including and delivery fees.
Q 4 How to test machine before delivery?
We will connect all machines in line make them running over 8 hours non-stop , then take and send testing videos. Or we could live video inspection .
Q 5 How about the Packaging details?
Standard export packing to ensure that the product packaging integrity and safety. ( Heavy products adopt export plywood case packing with waterproof film . Small products use thick carton packing waterproof film)
Q 6 Do you have reference project?
We have reference project in most countries. After getting the permission of the customer who has brought the machines from us ,we will send you their contact information and arrange your visiting to their factory. And you are always welcome to come to visit our factories ,and inspect the machine running in our factory .We will be glad offer necessary supports on hotel booking , transportation , VISA application. OR you can get video of our reference running machine on our website too .
