High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor

High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor

This high-performance 4-cavity blow molding machine delivers exceptional efficiency in PET bottle production for mineral water packaging. Featuring advanced PLC control and a robust SMC rotary cylinder system, it ensures precise, stable operation and consistent quality output. The fully automatic design minimizes manual intervention while maximizing productivity, making it ideal for medium to large-scale beverage manufacturing facilities. Equipped with a powerful motor and sophisticated PP plastic processing capabilities, this machine maintains excellent production speeds without compromising on bottle quality. Its user-friendly interface allows for easy parameter adjustment and monitoring, while the durable construction ensures long-term reliability. Perfect for producing various bottle sizes, this system offers an optimal balance of speed, precision, and cost-effectiveness for modern bottling operations.

Get a Quote
  • Description

+8615601563990
[email protected]
Inquiry
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor supplier
NAVAN Machine.
We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China. Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.Navan Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training.
Products Description
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor details
NAVAN High Speed&Energy Saving Series Bottle Blowing Machine
NAVAN high speed &energy saving series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 10 cavity,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

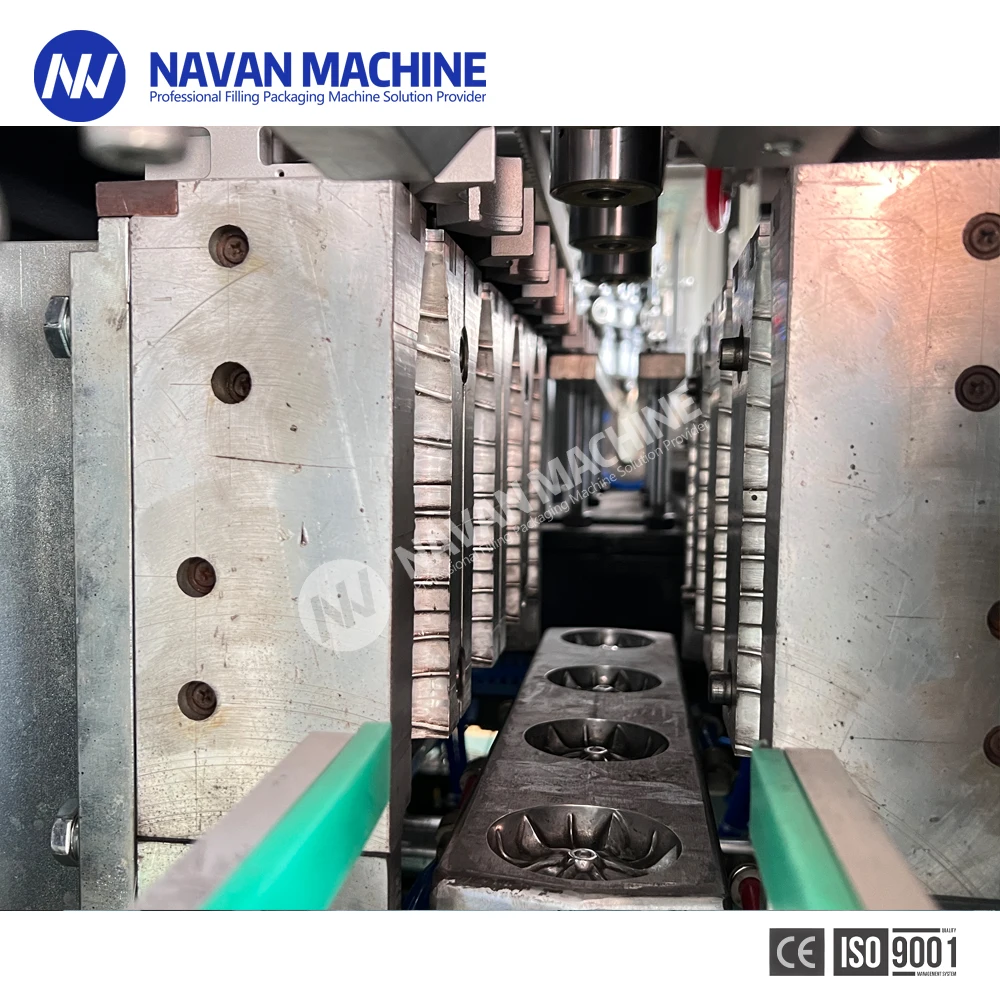

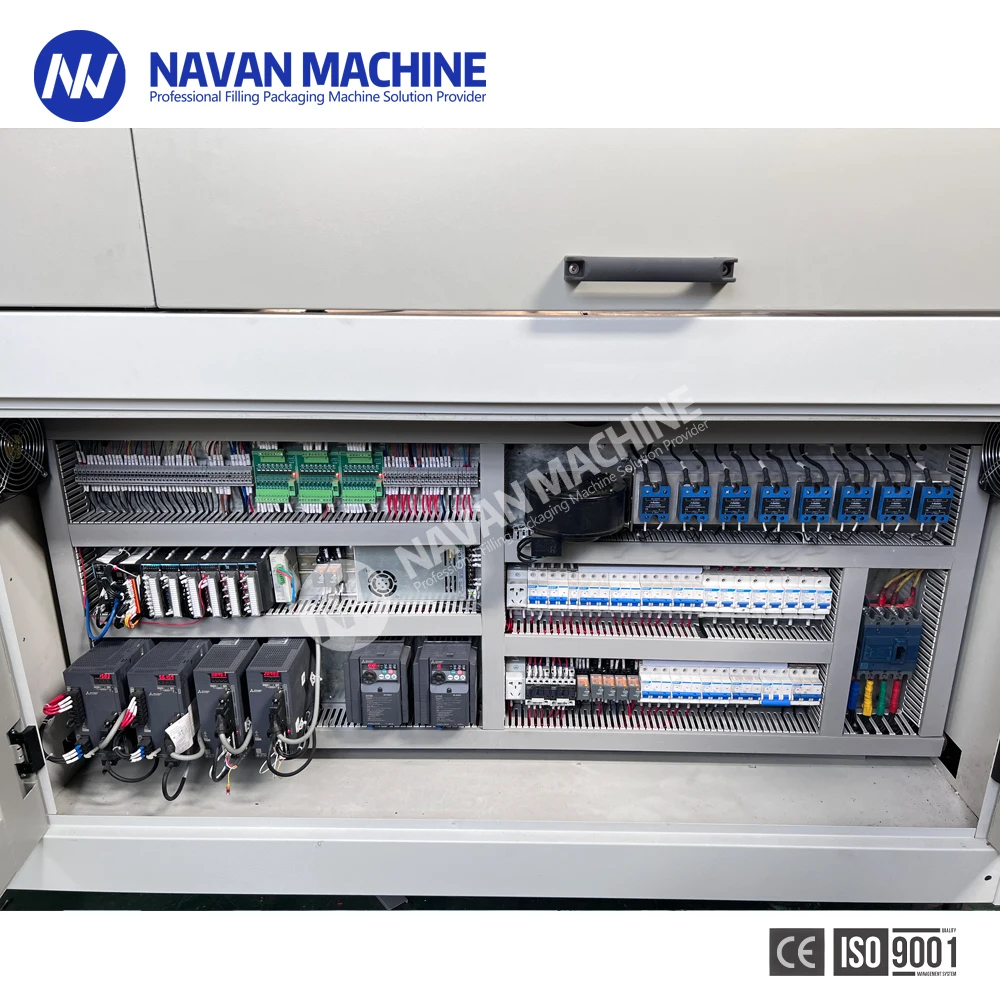

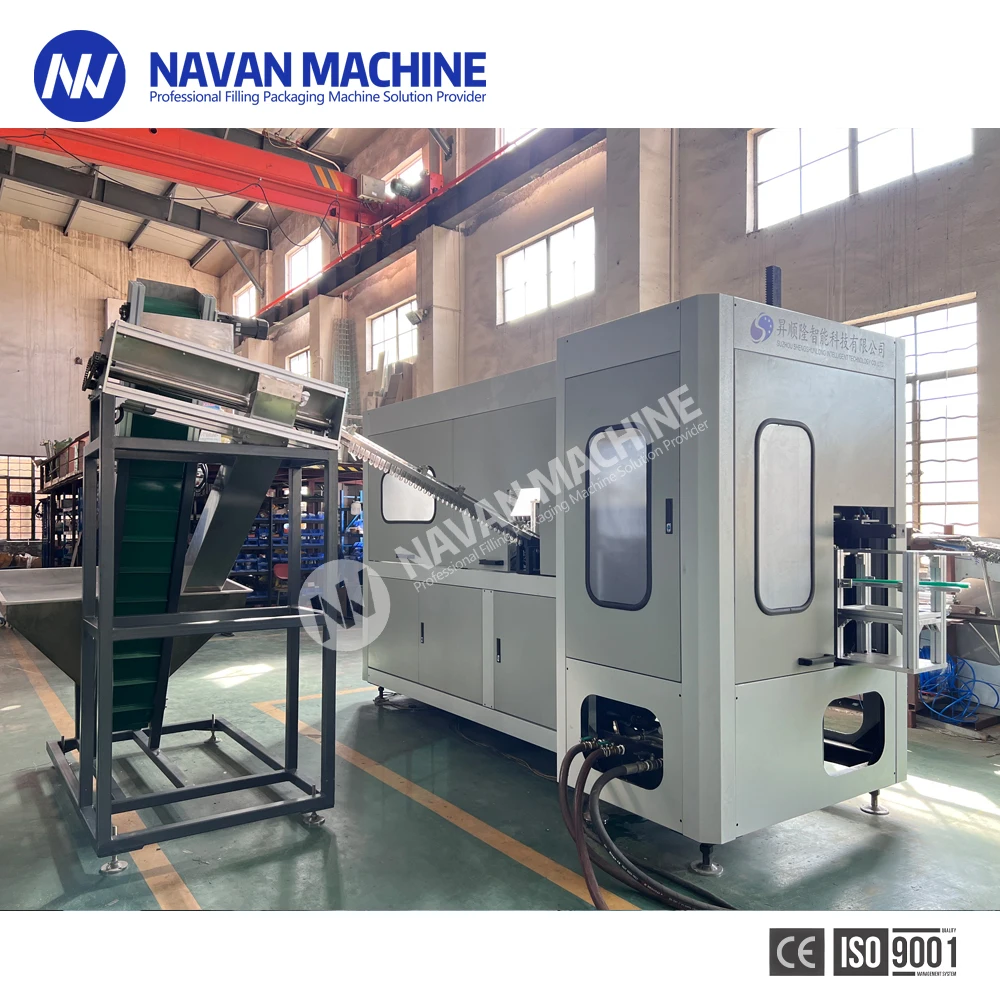

Details Images
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor factory
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor details
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor manufacture
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor supplier
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor manufacture
Brief Introduction

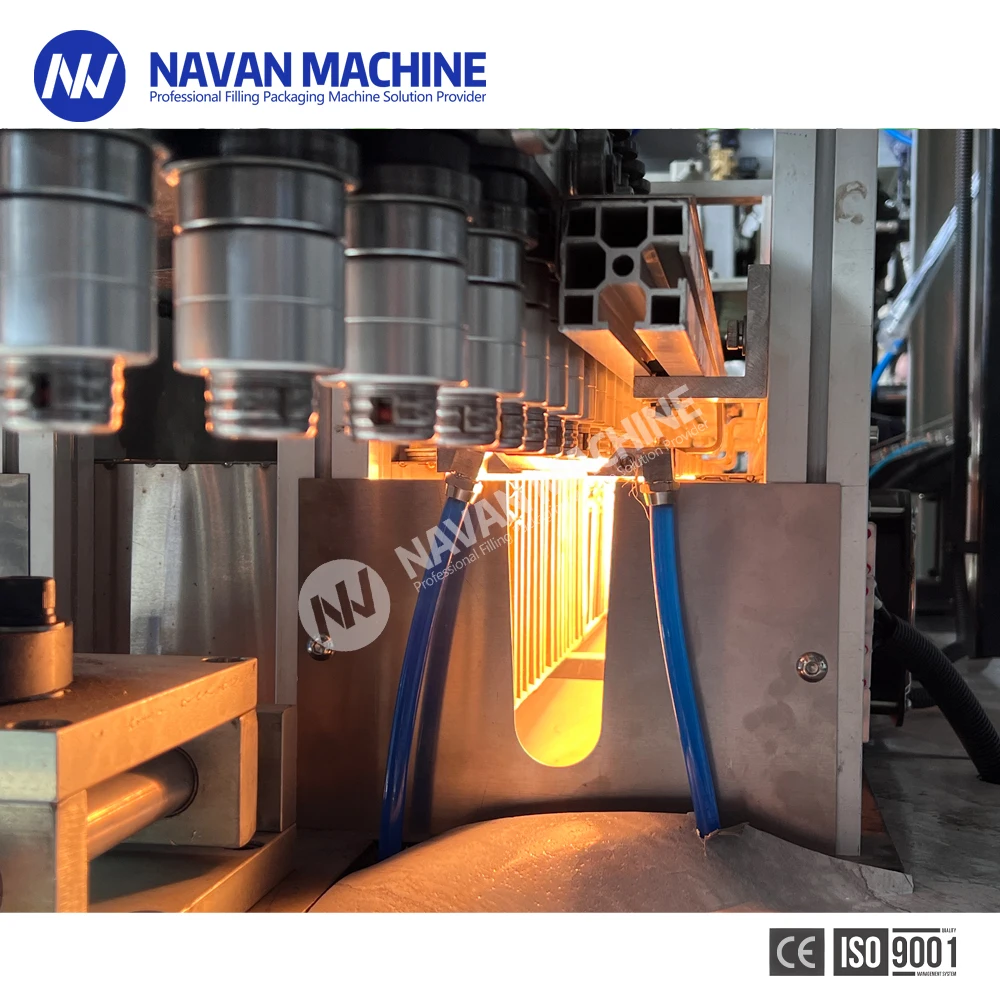

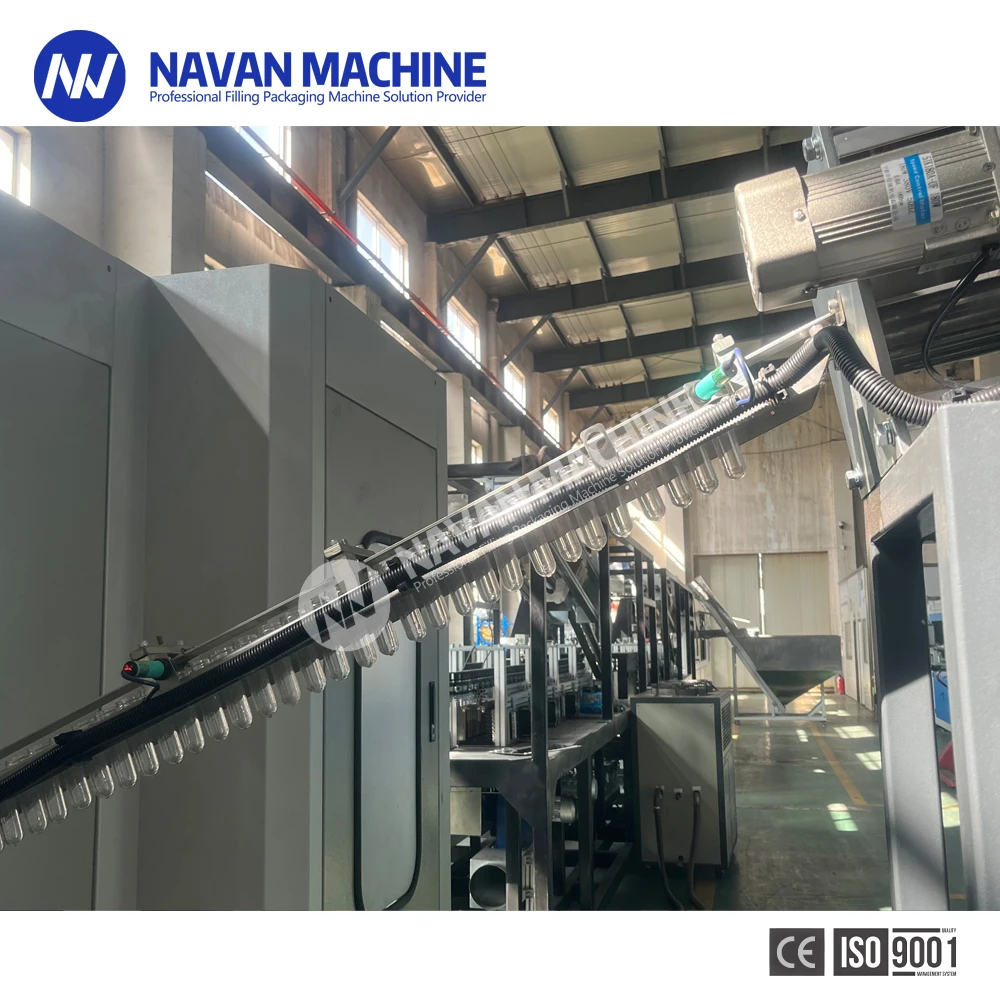

The continuous rotating preform feeding system is tightly combined with the machine platform, which effectively reduces the area occupied by the machine platform. The preform has no overturn and with simple structure. Continuous heating system, the heating pitch between each preform is 38 mm, which can effectively use the lamp tube heating space,highly improved the heating efficiency.Servo motor is used to ensure high-speed operation and precise positioning. This machine is suitable for drinking water, carbonated beverage, fruit juice, tea and milk product.,etc in PET bottles with production capacity ranges from 4,000BPH to 20,000BPH based on 500ml water bottle.

Advantages：

1.The embryo inserting system has multiple safety protection devices to ensure the embryo inserting
2.Use continuous embryo implantation system
3.The device for conveying the preform to the heating extension blowing molding adopts a linear structure
4.All-electric linkage structure ensures high-speed operation and precise positioning of the machine
5.Modular design, easy maintenance
6.Save cost and increase competitiveness
7.Improve energy efficiency
8.Human-machine interface control, simple operation
9.Equipped with gas recovery device
10.Low energy consumption, low maintenance, low wear, low poll
Product Paramenters
Model No.
NBH-4
NBQH-6
NBQH-6D
NBQH-8
NBQH-8D
NBQH-10
Production Capacity(BPH)
4000-6000
9000-12000
9000-12000
12000-16000
10000-15000
16000-20000
Container volume(L)
0.3-1.5
0.3-0.6
0.3-1.5
0.3-0.6
0.3-0.6
0.3-0.6
Bottle height(mm)
120-330
45-65
45-65
120-230
120-330
120-230
Bottle diameter(mm)
45-105
50-130
45-105
45-65
45-105
45-65
Preform length(mm)
50-130
50-130
50-130
50-130
50-130
50-130
Host dimensions(m)
4*1.5*2.67
5.4*1.6*2.67
5.4*1.6*2.67
5.9*1.6*2.67
6.9*1.6*2.67
7.2*1.6*2.67
Bottle unscrambler dimensions(m)
2*2*2.5
2*2*2.5
2*2*2.5
2*2*2.5
2*2*2.5
2*2*2.5
High pressure air pressure(Mpa)
4
4
4
4
4
4
High pressure air pressure(Mpa)
0.8
0.8
0.8
0.8
0.8
0.8
Voltage(V)
380
380
380
380
380
380
Installation power(kw)
55
90
95
127
127
159
Actual power(%)
30-60
30-60
30-60
30-60
30-60
30-60
Mold cooling(HP)
5
8
10
10
12
12
Applicable material
PET
PET
PET
PET
PET
PET
Weight(T)
3.5
5.5
6
6
6.5
7
Recommend Products
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor factory
Full Automatic PET Bottle Blowing Machine
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor supplier
Semi Automatic PET Bottle Blowing Machine
Why Choose Us
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor factory

NAVAN Machinery.

Navan Industrial has invested its best resources in technical research, to design and realize innovative in bottle blowing, filling, capping , labeling and packing systems which enable to respond and reach different demands and achieve new goals everyday, seizing the market's expectations in the pass years . At the same time , we also provides turn-key services for customers, from plant layout, equipment manufacturing, production line setup, to operators training. We are always trying our best to meet the demands of our customers continuously and seeking for mutual development. Today Navan has enhanced its exsitence both in domestic and global market. Thanks to its various and perfect cases, we provide our customers with delicated and customized solutions at quick response. Navan machines are utilized in large and small companies all around the world since 2008. Massive experience gained through the years of water, juice , soft drink , beer, honeys, sauces etc., with all the abundant experience we are able to deal with any problems related to specific customers requirements, such as daily or special products., and perfect the creation of various machine to satisfy any customer's demands.
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor manufacture
Factory Show.
<1> Standardized workshop of total 3,000 square meters.
<2>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
<3>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
<4>Engineers are experienced. We can produce different products with different capacities and work out reasonable flow chart as per customers’ requirements to save space. <5>Professional installation team who can speak fluent English can help customers make benefits in the shortest time.
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor supplier
Certificates.
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration,etc.
High-Speed 4-Cavity Fully Automatic Pet Mineral Water Blow Molding Machine Processing PP Plastic SMC Rotary Cylinder PLC Motor factory
Customers.
We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature techniques and first-class quality.
FAQ
Q1 : What is the warranty period?
We provide 12 months warranty for all spare parts. (exclude fragile parts).
Q2 : How do you control the quality?
1) All NAVAN machines are in strict accordance with the ISO quality and CE system requirements.
2) Each procedure is crafted by professional Skilled labour, followed by particular QC
3) All information of our products can be checked in efficient management system.
Q3 : What certifications do you have?
All our products are CE and ISO9001 certified. Numerous design and innovation patent for all our current models and spare parts. Such as the innovation patent squeegee design.
Q4 : What kind of service do you provide?
Before sales: Provide product information, market research forecasting, product customization, product processing, consultation and other services for your convenience. After sales: 1. Technical training on according to customer requirements; 2. We promise replacement under warranty; 3. We promise to supply the maintenance spare parts; 4. Regular call back or visit customers; 5. On time response to mail and phone calls of your complaints or consultation.
Q5 : Are you a factory or a trading company, where are you located?
We are factory , just 150km(1.5hour by car) away from Shanghai Airport. We offer pickup service at Shanghai for your visit.
