NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine

NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine

The NAVAN Flexible Application Bottle Stand-up Automatic Sleeve Labeling Machine delivers precision and efficiency for your production line. This versatile system seamlessly applies shrink sleeve labels to a wide range of bottle shapes and sizes, maintaining consistent positioning and quality. Featuring advanced automatic controls and user-friendly operation, the machine ensures smooth, wrinkle-free label application with minimal supervision. The stand-up design optimizes floor space while providing easy access for maintenance and label roll changes. Perfect for beverage, cosmetic, and pharmaceutical industries, this labeler handles production speeds up to 200 bottles per minute. Built with industrial-grade components and backed by NAVAN's reputation for reliability, this sleeve labeling solution combines durability with precise performance to enhance your packaging operations. Temperature-controlled shrinking ensures perfect label conformity to container contours, resulting in professional, retail-ready products.

Get a Quote
  • Description

+8615601563990
[email protected]
Inquiry
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine details
NAVAN Machine.
We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China. Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.Navan Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training.
Products Description
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine manufacture
NAVAN Auto Shrink Sleeve Labeling Machine For Pure Water Bottle
1. Suitable for various bottle types of juice, tea beverage, dairy products, purified water, condiments, beer, sports drinks and other food and beverage industries. Not only does the sleeve label position have high accuracy, but it also highlights the bottle shape after shrinking.
2. Highly stable mechanical structure: The whole machine adopts stainless steel protective frame cover and aluminum alloy rigid frame, which is stable and does not rust.
3. Flexible choice of multiple bottle types: round bottles, square bottles, oval bottles, etc. can be set, and the mouth or body of the bottle can also be selected.
4. Unique synchronous cutter seat, within the specification range, no need to change the cutter seat. If you need to change the specifications, it can be completed quickly in 5 minutes.
5. Wide range of application: suitable for all kinds of plastic bottles, glass bottles, PVC, PET, PS, iron cans and other containers such as food, beverages, cleaning supplies, medicines, wine bottles, etc.
6. High-quality positioning accuracy: Fully mechanical transmission design, using forced sleeve labeling, all kinds of film materials above 0.030MM film thickness are applicable, the film material inner diameter can be adjusted in the range of 5-10.
7. Low maintenance cost of consumables: This machine adopts low-cost disposable blades, which are easy to replace and low cost burden.
Details Images
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine manufacture

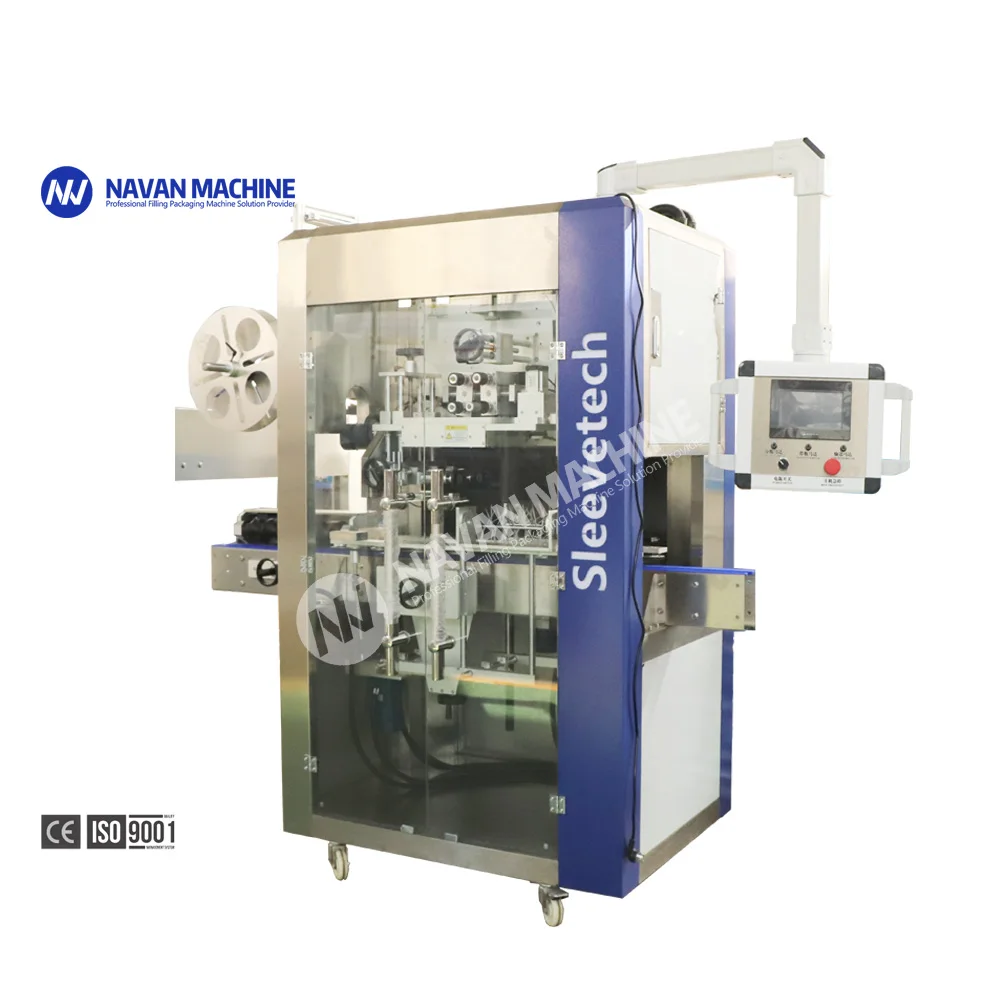

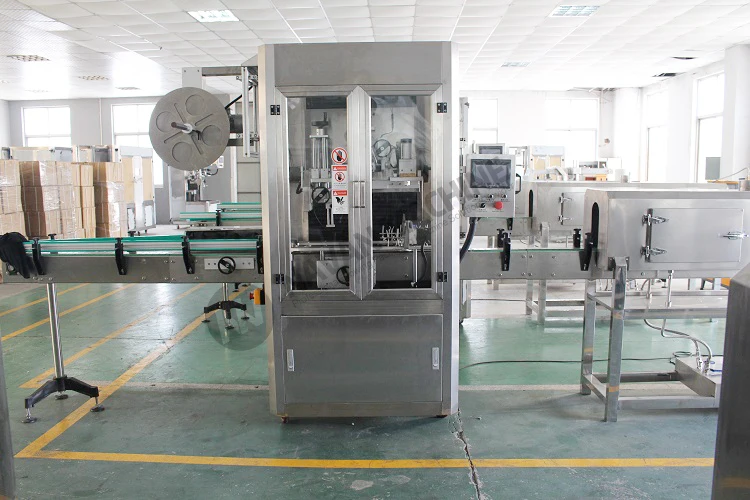

Sleeve Labeling Machine - Main Machine.
Machine group: The whole machine adopts a stainless steel body to support the main machine and fix the conveyor belt.
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine supplier

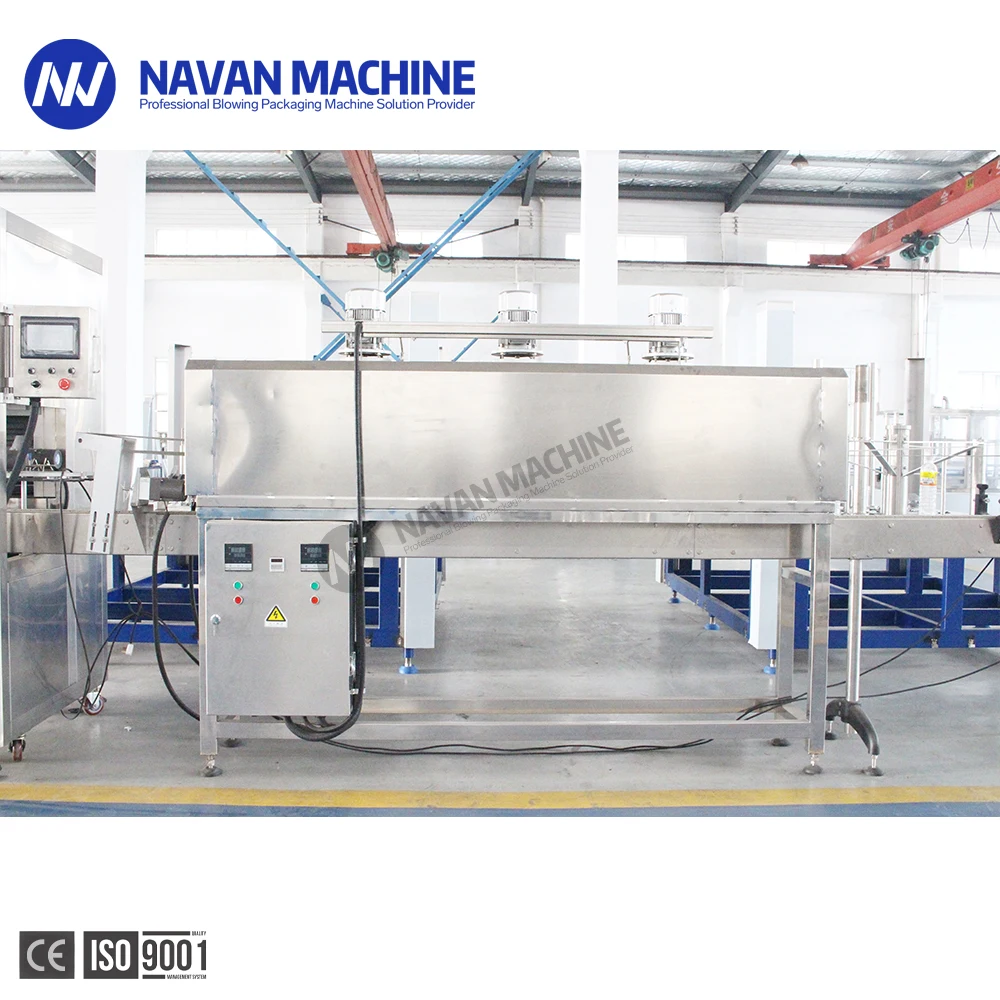

Sleeve Labeling Machine - Shrinking Furnace.
Use electric heat or steam heat to shrink and evenly attach the label to the bottle.
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine supplier
Material rack group:
Save the time of changing materials, the discharge is fed by a set of conveying roller reduction motors.
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine manufacture
Bottle-separating screw:
Separate the bottles to be set at equal intervals and enter the bottle group.
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine manufacture

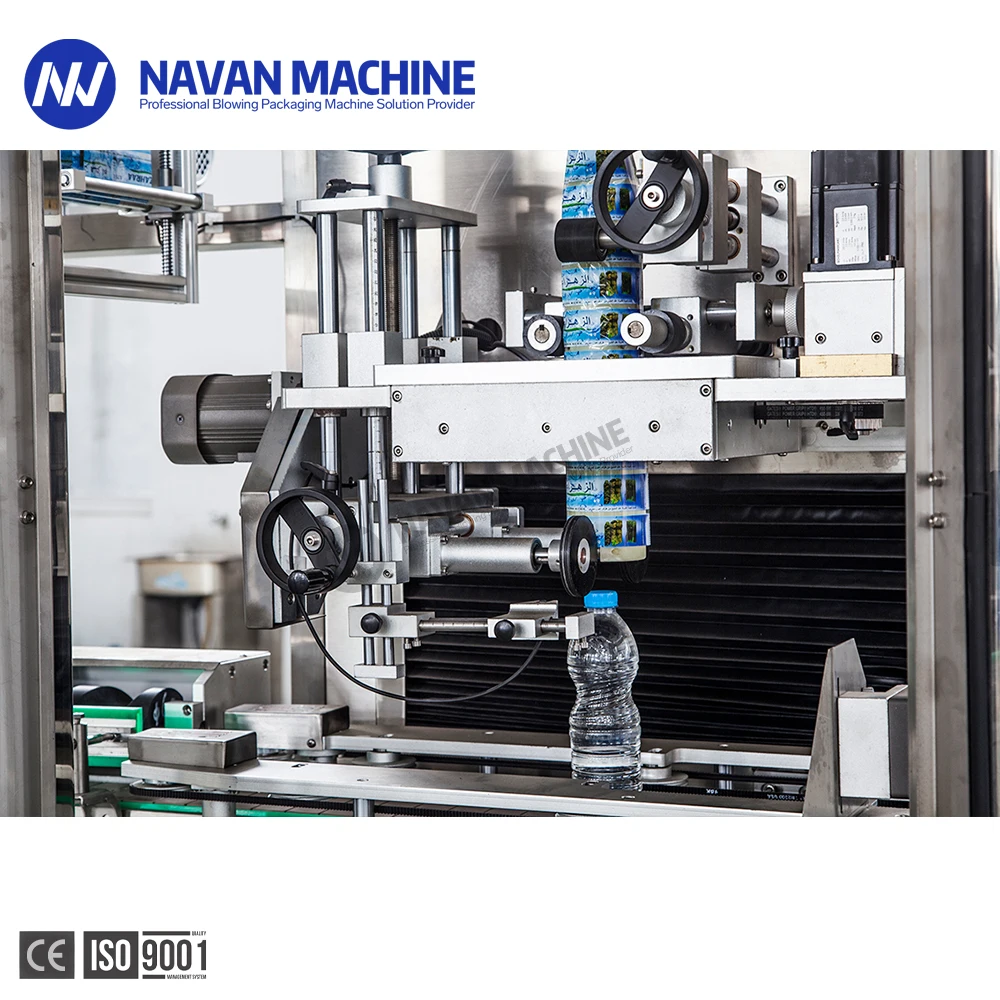

Cutter set:
It adopts an eccentric linkage mechanism and is driven by a stepping motor. There is no rotation under the induction of no incoming bottles, which increases the service life and safety. At the same time, its cutter adopts ordinary paper cutting blades to replace easily and economically.
Center column: The label film material is sleeved and opened, so that the film material can be conveyed and cut.
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine details

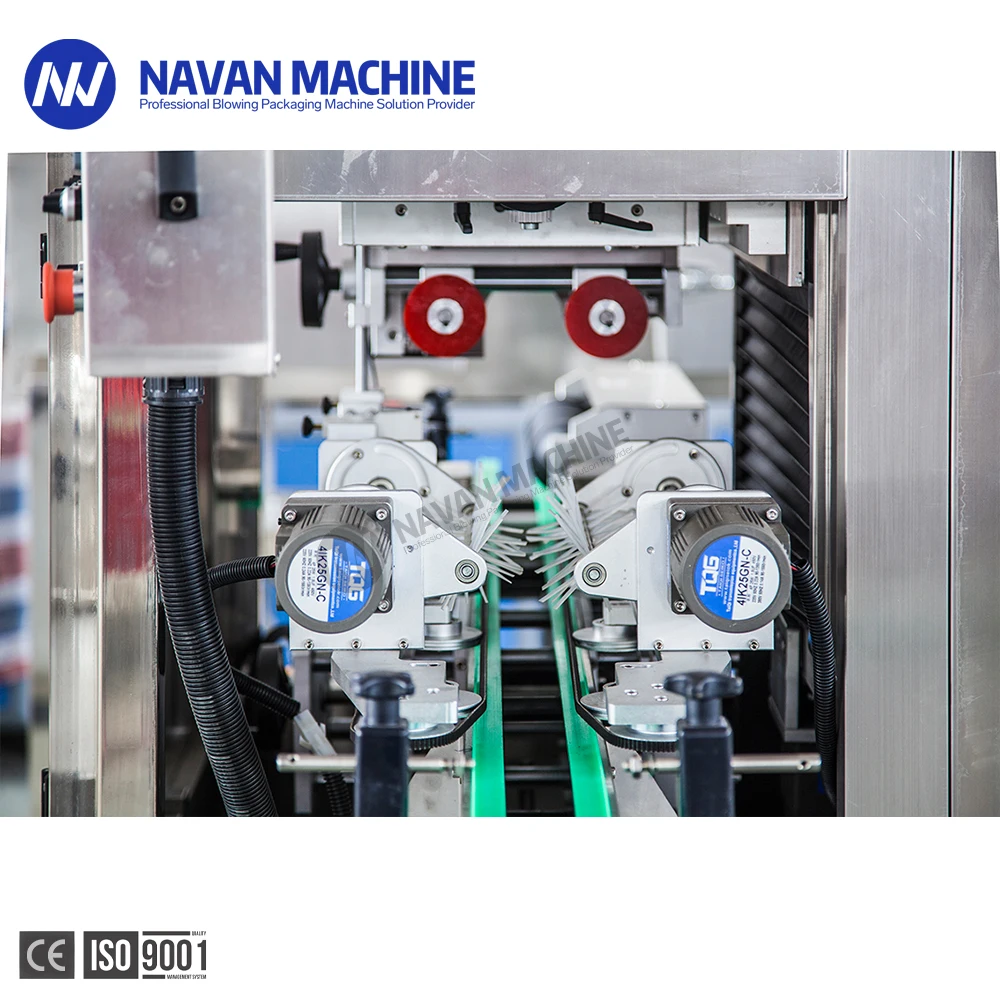

Brush set:
Use a strap or rubber band to drive the bottle label brush into position.
Brush-down group:
Using a synchronous adjustment mechanism, adjust the brush-down two sets of transfer wheels to slightly touch the rollers under the center column. When the label passes, the label is inserted into the bottle at a higher speed.
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine details

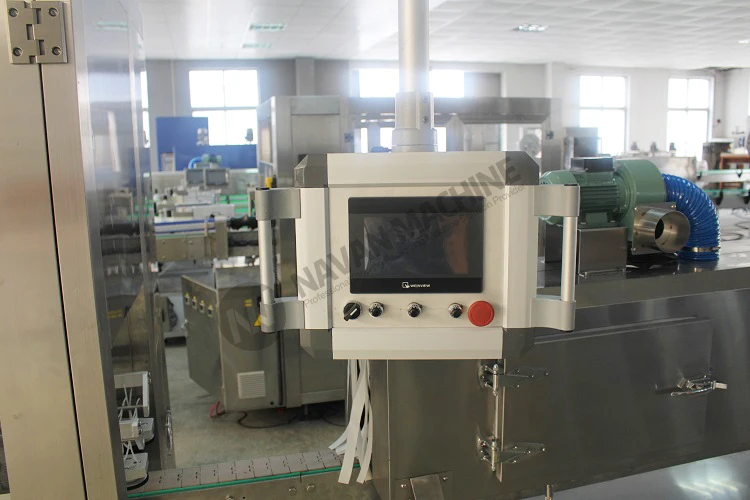

Man-machine interface:
The control center of this machine, each operation display page is divided into main table, manual, automatic, setting, monitoring, etc., and several auxiliary knobs and buttons are used to operate and control sleeve label operations.
Product Paramenters
NLM-150
NLM-250
Input power
3.0KW
3.3KW
Input voltage
3-phase, 380V/220V AC
3-phase, 380V/220V AC
Productivity
150 bottles/min
250 bottles/min
Host size
2100L*850W*2000H
2100L*1100W*2000H
Applicable bottle diameter
28mm~120mm
28mm~120mm
Applicable label length
30mm~250mm
30mm~250mm
Applicable label thickness
0.03mm~0.13mm
0.03mm~0.13mm
Applicable paper tube inner diameter
5”~10” freely adjustable
5”~10” freely adjustable
Recommend Products
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine details

Sleeve Labeling Machine.

1 - Single Head.
2 - Double Heads.
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine manufacture

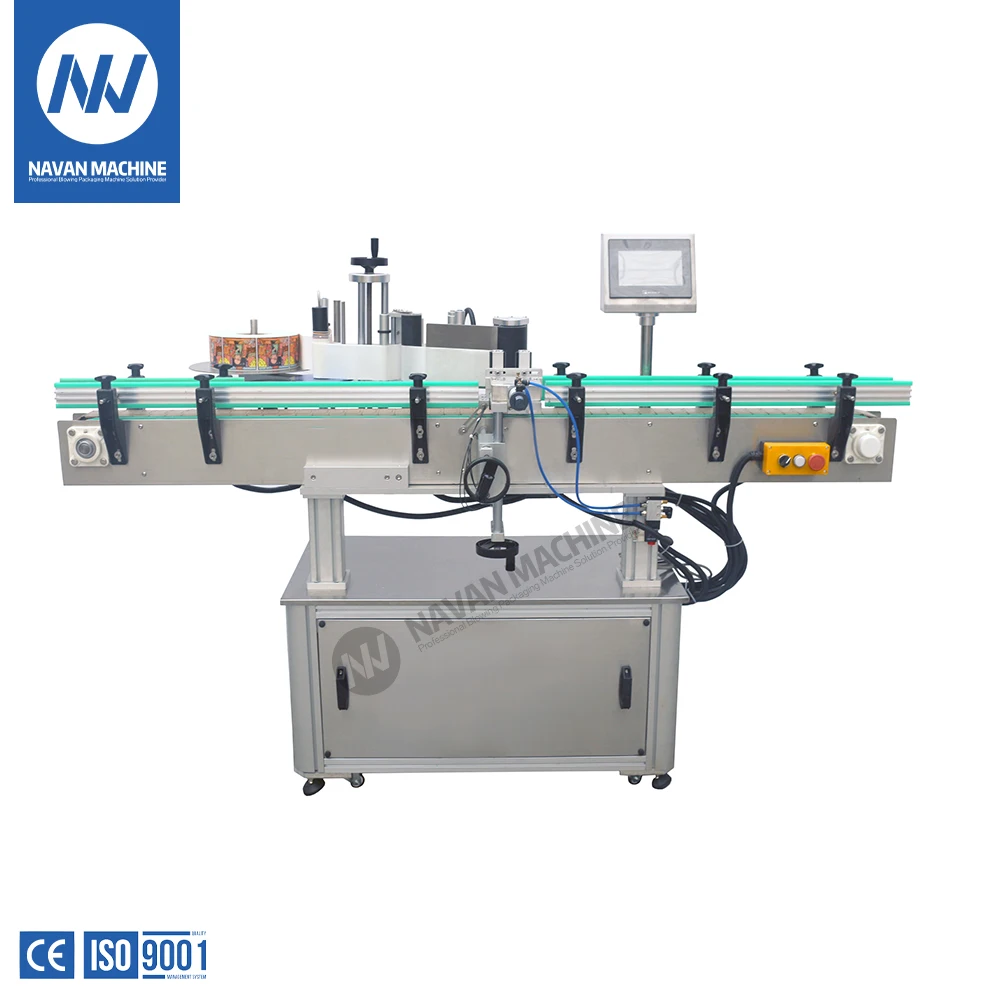

Stick Labeling Machine.

1 - Single Side.
2 - Double Side.
3 - Three Side.
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine factory

Hot Melt Labeling Machine.

Why Choose Us
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine factory
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine supplier
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine manufacture

NAVAN Machinery.

Navan Industrial has invested its best resources in technical research, to design and realize innovative in bottle blowing, filling, capping , labeling and packing systems which enable to respond and reach different demands and achieve new goals everyday, seizing the market's expectations in the pass years . At the same time , we also provides turn-key services for customers, from plant layout, equipment manufacturing, production line setup, to operators training. We are always trying our best to meet the demands of our customers continuously and seeking for mutual development. Today Navan has enhanced its exsitence both in domestic and global market. Thanks to its various and perfect cases, we provide our customers with delicated and customized solutions at quick response. Navan machines are utilized in large and small companies all around the world since 2008. Massive experience gained through the years of water, juice , soft drink , beer, honeys, sauces etc., with all the abundant experience we are able to deal with any problems related to specific customers requirements, such as daily or special products., and perfect the creation of various machine to satisfy any customer's demands.
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine supplier

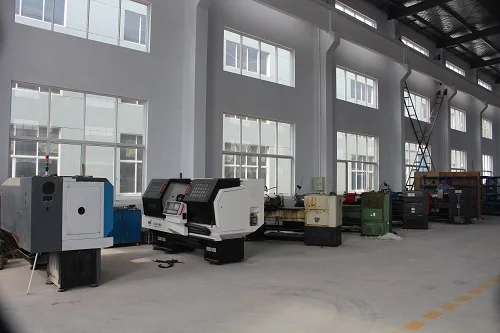

Factory Show.
<1> Standardized workshop of total 3,000 square meters.
<2>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
<3>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
<4>Engineers are experienced. We can produce different products with different capacities and work out reasonable flow chart as per customers’ requirements to save space.
<5>Professional installation team who can speak fluent English can help customers make benefits in the shortest time.
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine factory
Certificates.
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration,etc.
photobank (1).png
Customers.
We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature techniques and first-class quality.
NAVAN Flexible Application Bottle Stand-up Automatic Bottle Shrink Sleeve Labeling Machine supplier
FAQ
Q1: What is the warranty period?
We provide 12 12-month warranty for all spare parts. (exclude fragile parts).
Q2: How do you control the quality?
1) All NAVAN machines are in strict accordance with the ISO quality and CE system requirements.
2) Each procedure is crafted by professional Skilled labour, followed by particular QC
3) All information about our products can be checked in an efficient management system.
Q3: What certifications do you have?
All our products are CE and ISO9001 certified. Numerous design and innovation patents for all our current models and spare parts. Such as the innovation patent squeegee design.
Q4: What kind of service do you provide?
Before sales:
Provide product information, market research forecasting, product customization, product processing, consultation, and other services for your convenience.
After sales:
1. Technical training according to customer requirements;
2. We promise replacement under warranty;
3. We promise to supply the maintenance spare parts
4. Regularly call back or visit customers;
5. On-time response to mail and phone calls of your complaints or consultation.
Q5: Are you a factory or a trading company? Where are you located?
We are a factory, just 150km(1.5hour by car) away from Shanghai Airport. We offer pickup service in Shanghai for your visit.
